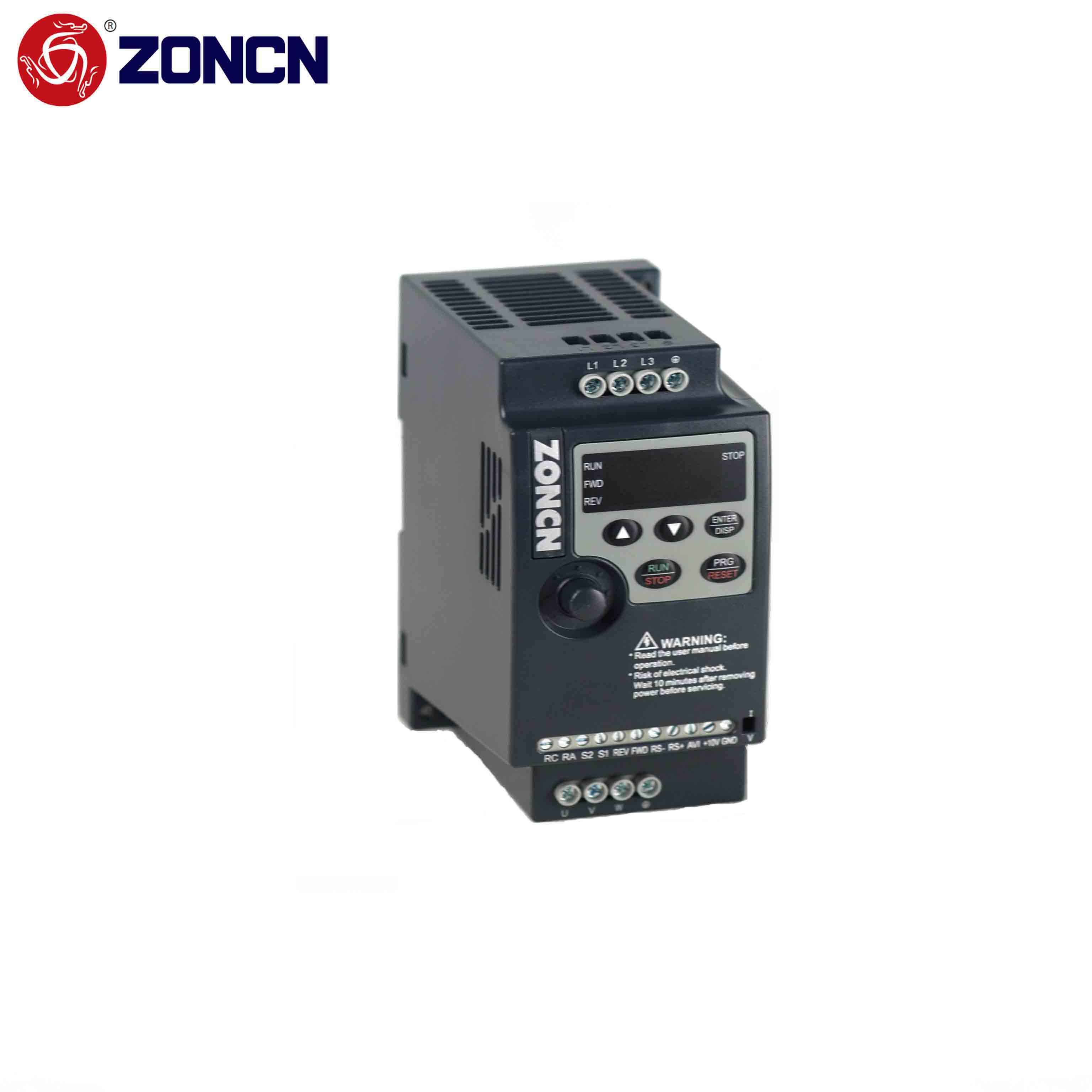

ZONCN Low Frequency Inverter Vector Control In Vfd 380v 11kw Vfd NZ100

ZONCN Low Frequency Inverter Vector Control In Vfd 380v 11kw Vfd NZ100
ZONCN Low Frequency Inverter Vector Control In Vfd 380v 11kw Vfd NZ100 ZONCN Low Frequency Inverter Vector Control In Vfd 380v 11kw Vfd NZ100 ZONCN Low Frequency Inverter Vector Control In Vfd 380v 11kw Vfd NZ100
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-11G/15P-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ100-11G/15P-4 Type: AC Drive
Protection: IP20 Display: LED Display
Highlight:

ZONCN Low Frequency Inverter

,

Vector Control In Vfd 11kw

,

Vector Control In Vfd 380v

ZONCN Low Frequency Inverter Motor Drives Low Voltage 380v 11kw Vfd NZ100

NZ100 series vfd inverter 380V 11KW NZ100-11G/15P-4 AC drives



Basic product introduction:

· Small and affordable design

· Exposed terminals, convenient for wiring

· Mountable on DIN rail (up to 5.5KW)

· RS485 communication using Modbus protocol

· No maintenance required

· Compatible with MODBUS ASCII protocol



The NZ100 series variable frequency drive (VFD) offers a range of exceptional features that make it an ideal choice for various applications.

Firstly, its small and affordable design makes it a cost-effective solution for achieving variable speed control. The compact size allows for easy integration into space-constrained environments, while still delivering reliable performance.

The VFD's exposed terminals provide convenient access for wiring, simplifying the installation process. This user-friendly feature saves time and effort, ensuring a smooth setup experience.

Additionally, the NZ100 VFD is mountable on DIN rails, making it suitable for installations up to 5.5KW. This versatile mounting option provides flexibility and convenience in various industrial settings.

The VFD supports RS485 communication using the widely adopted Modbus protocol. This allows for seamless integration with other devices and systems, enabling efficient and reliable data exchange.

One of the standout advantages of the NZ100 VFD is its maintenance-free operation. Its robust design and high-quality components ensure long-term reliability without the need for regular maintenance, reducing downtime and associated costs.

Furthermore, the VFD is compatible with MODBUS ASCII protocol, offering compatibility and flexibility for communication with a wide range of devices and systems.

In summary, the NZ100 series VFD combines a small and affordable design, convenient terminal wiring, DIN rail mountability, Modbus communication, maintenance-free operation, and compatibility with MODBUS ASCII protocol. These features make it an excellent choice for various applications, providing reliable and efficient variable speed control.







Technical Specific:

Items NZ100 series inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20





Product features:

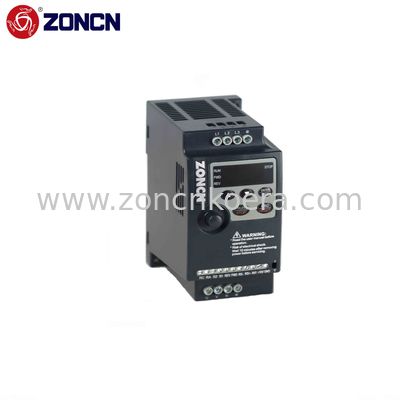

ZONCN Low Frequency Inverter Vector Control In Vfd 380v 11kw Vfd NZ100 0

ZONCN Low Frequency Inverter Vector Control In Vfd 380v 11kw Vfd NZ100 1

The NZ100 series variable frequency drive (VFD) is specifically designed to meet the needs of small-scale machinery applications. It boasts a compact size, allowing for easy integration even in limited space environments. The NZ100 VFD offers cost-effectiveness without compromising on performance, making it an affordable solution for achieving variable speed control.

One of the key advantages of the NZ100 VFD is its simple terminal wiring, ensuring hassle-free installation and setup. This user-friendly feature saves time and effort during the installation process.

The NZ100 VFD is built with a focus on reliability, utilizing high-quality components to ensure consistent and dependable performance. It also supports DIN rail mounting, providing a convenient installation option for various small-scale machines.

Overall, the NZ100 series VFD is a versatile choice that caters to the diverse needs of small-sized machinery. Its compact size, low cost, simple terminal wiring, reliable quality, and support for DIN rail mounting make it an excellent fit for a wide range of small-scale applications.



Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15







FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
