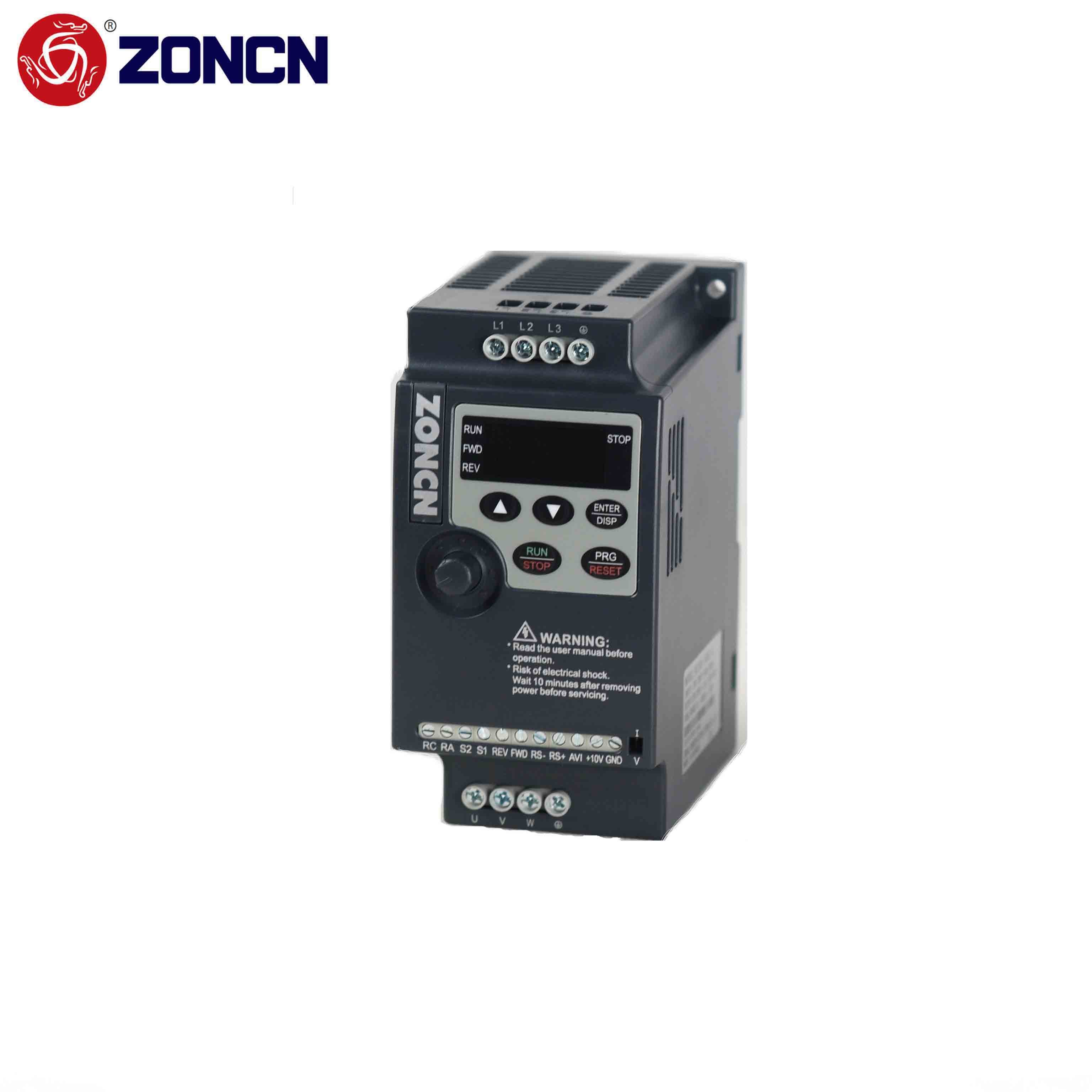

ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4

ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4
ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4 ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4 ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-5R5G-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ100-5R5G-4 Power: 5.5kw
Altitude: Lower Than 1000m VF Control: Support
Application: Motor Speed Control Vibration: Max. 0.5G
Highlight:

NZ100 Vector Drive Vfd

,

ZONCN Vector Drive Vfd

ZONCN NZ100 Series Low Voltage Inverter 220v 380v Frequency Inverters 5.5kw

NZ100 series vfd inverter 380V 5.5KW NZ100-5R5G-4 AC drives



Basic product introduction:

· Small and affordable design

· Exposed terminals, convenient for wiring

· Mountable on DIN rail (up to 5.5KW)

· RS485 communication using Modbus protocol

· No maintenance required

· Compatible with MODBUS ASCII protocol





The NZ100 series variable frequency drive (VFD) stands out for its compact design, making it well-suited for applications with limited space. Despite its small size, the NZ100 VFD delivers exceptional performance at a competitive price, offering a cost-effective solution for achieving variable speed control. The terminal connections are straightforward and uncomplicated, facilitating easy installation and setup.

Moreover, the NZ100 VFD is renowned for its dependable quality, constructed with robust components to ensure reliable and long-lasting operation. It also supports DIN rail installation, providing a convenient mounting option for a wide range of small-scale machinery applications. The NZ100 series VFD is a versatile choice that perfectly meets the requirements of diverse small-sized machines.





Technical Specific:

Items NZ100 series inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20





Product features:

ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4 0

ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4 1

The NZ100 series variable frequency drive (VFD) is specifically designed to meet the needs of small-scale machinery applications. It boasts a compact size, allowing for easy integration even in limited space environments. The NZ100 VFD offers cost-effectiveness without compromising on performance, making it an affordable solution for achieving variable speed control.

One of the key advantages of the NZ100 VFD is its simple terminal wiring, ensuring hassle-free installation and setup. This user-friendly feature saves time and effort during the installation process.

The NZ100 VFD is built with a focus on reliability, utilizing high-quality components to ensure consistent and dependable performance. It also supports DIN rail mounting, providing a convenient installation option for various small-scale machines.

Overall, the NZ100 series VFD is a versatile choice that caters to the diverse needs of small-sized machinery. Its compact size, low cost, simple terminal wiring, reliable quality, and support for DIN rail mounting make it an excellent fit for a wide range of small-scale applications.



Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15







FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
