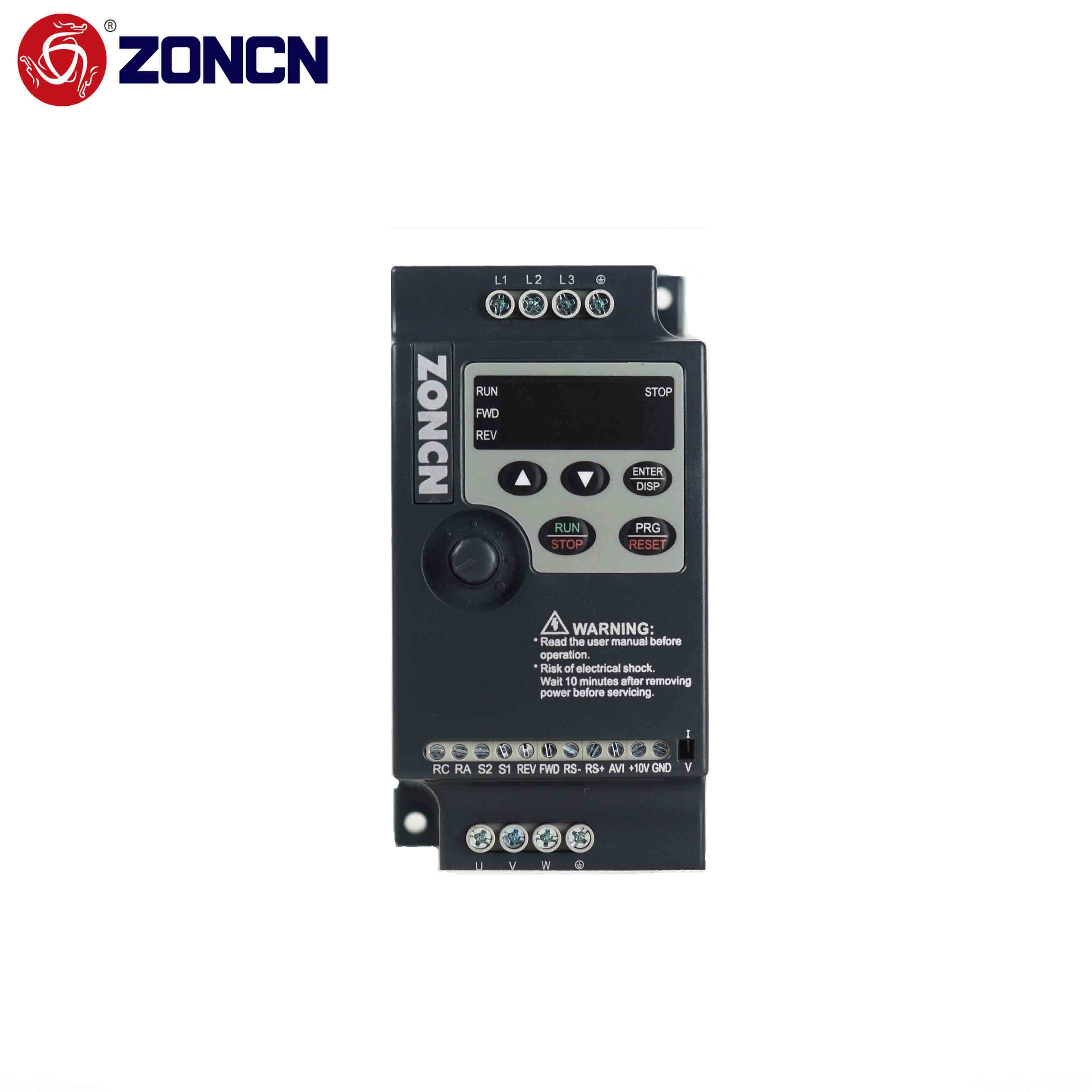

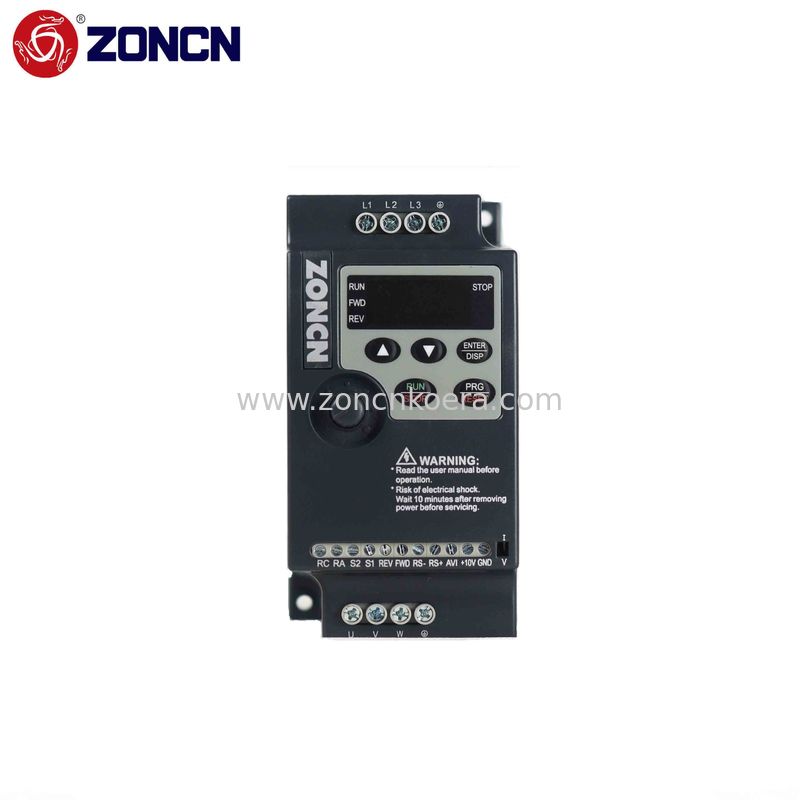

DIN rail Mountable Variable Frequency Drive Single Phase 7.5KW 400V

DIN rail Mountable Variable Frequency Drive Single Phase 7.5KW 400V
DIN rail Mountable Variable Frequency Drive Single Phase 7.5KW 400V DIN rail Mountable Variable Frequency Drive Single Phase 7.5KW 400V DIN rail Mountable Variable Frequency Drive Single Phase 7.5KW 400V
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-7R5G-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ100-7R5G-4 Power: 10HP
Altitude: Lower Than 1000m VF Control: Yes
Application: Motor Speed Control
Highlight:

Variable Frequency Drive Single Phase 7.5KW

,

Variable Frequency Drive Single Phase 400V

NZ100-7R5G-4 VFD 7.5KW 400V Ac Frequency Inverter Low Voltage Drives Converter

NZ100 series vfd inverter 380V 7.5KW NZ100-7R5G-4 AC drives



Basic product introduction:

· Small and affordable design

· Exposed terminals, convenient for wiring

· Mountable on DIN rail (up to 5.5KW)

· RS485 communication using Modbus protocol

· No maintenance required

· Compatible with MODBUS ASCII protocol





The NZ100 series variable frequency drive (VFD) is characterized by its compact size, making it ideal for space-constrained applications. Despite its small footprint, the NZ100 VFD offers excellent performance at a low cost, providing a cost-effective solution for variable speed control. The terminal wiring is simple and straightforward, ensuring easy installation and setup.

Furthermore, the NZ100 VFD is known for its reliable quality, built with durable components to ensure long-lasting operation. It also supports DIN rail mounting, allowing for convenient installation in various small-scale machinery applications. The NZ100 series VFD is a versatile choice that perfectly suits the needs of different small-sized machines.





Technical Specific:

Items NZ100 series inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20





Product wiring diagram:

DIN rail Mountable Variable Frequency Drive Single Phase 7.5KW 400V 0





Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15







FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.



Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
