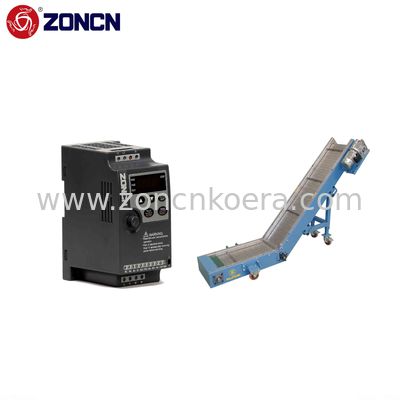

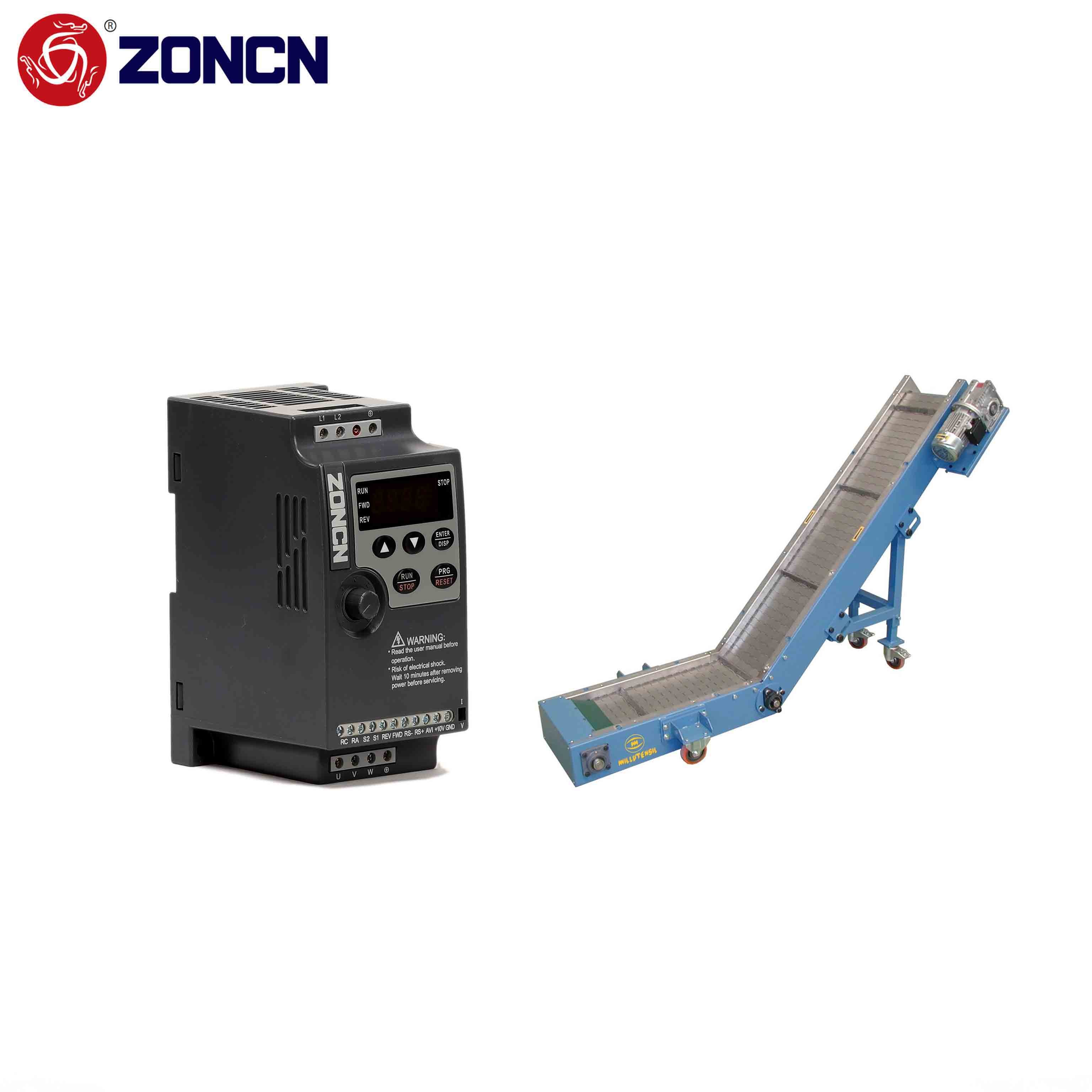

NZ100-2R2G-4 3HP 2.2KW 400V Ac Frequency Inverter Low Voltage Drives

NZ100-2R2G-4 VFD 3HP 2.2KW 400V Ac Frequency Inverter Low Voltage Drives

NZ100 series vfd inverter 380V 2.2KW NZ100-2R2G-4



Basic product introduction:

· Small and affordable design

· Exposed terminals, convenient for wiring

· Mountable on DIN rail (up to 5.5KW)

· RS485 communication using Modbus protocol

· No maintenance required

· Compatible with MODBUS ASCII protocol





The NZ100 series variable frequency drive (VFD) offers a diverse range of benefits. Firstly, it supports RS485 communication, enabling seamless integration with other devices and systems.

Moreover, the NZ100 VFD is renowned for its user-friendly installation process, requiring minimal effort and time. The same applies to the debugging phase, simplifying the configuration and optimization of the VFD to meet specific requirements.

In terms of cost-effectiveness, the NZ100 VFD presents an economical solution for achieving variable speed control, making it a budget-friendly option for various applications.

Furthermore, the VFD prioritizes energy efficiency, resulting in substantial power savings and reduced electricity consumption. It also places a strong emphasis on safeguarding machinery, ensuring their durability and dependability.

The NZ100 VFD is equipped with an integrated PID control feature, enabling precise and efficient regulation of diverse processes. Lastly, the terminal wiring is straightforward and uncomplicated, facilitating convenient connection and configuration of the VFD.





Technical Specific:

Items	NZ100 series inverter
Input rated voltage,frequency	One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range	170-240v(220v)330-440v(380v)
Output voltage range	0-220v(220v)0-380v(380v)
Output frequency range	0.1~400Hz
Indication	Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution	Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy	0.01Hz
VF control	Setting V/F curve to satisfy various load requirements
Torque boost	Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal	Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal	1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting	0~999.9s acceleration/deceleration time can be set individually
PID control	Build-in PID control
RS485	Standard RS485 communication function(MODBUS)
Frequency setting	Analog input: 0~ 10 V, 4~20mA Digital input: Operation panel or RS485 or UP/DOWN. Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed	Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation	Automatic voltage regulation function can be selected
Counter	Built-in 2 group of counters
Protection	IP20





Product wiring diagram:





Product model details:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2	0.4	5.4	2.5	0.4
NZ100-0R75G-2	0.75	8.2	5	0.75
NZ100-1R5G-2	1.5	14	7	1.5
NZ100-2R2G-2	2.2	23	11	2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4	0.75	3.4	2.7	0.75
NZ100-1R5G-4	1.5	5	4	1.5
NZ100-2R2G-4	2.2	5.8	5	2.2
NZ100-3R7G/5R5P-4	3.7	10.7	8.6	3.7
NZ100-5R5G/7R5P-4	5.5	14.6	12.5	5.5
NZ100-7R5G/11P-4	7.5	20	17.5	7.5
NZ100-11G/15P-4	11	26	24	11
NZ100-15G/18.5P-4	15	35	33	15





NZ100 product application:

The NZ100 series is designed with simplicity in mind, featuring a straightforward construction that ensures ease of use. Its high-quality components and meticulous manufacturing processes guarantee exceptional performance and reliability. Moreover, the NZ100 series has successfully obtained CE certification, meeting the stringent safety and quality standards set by regulatory authorities. Additionally, the packaging of the NZ100 series is carefully designed to ensure safe transportation and delivery, providing customers with peace of mind.



NZ100 series product application:

The NZ100 series variable frequency drive (VFD) is highly versatile and perfectly suited for a diverse range of small-scale machinery applications. It excels in enhancing the performance of small food processing machines, compact packaging machines, small water pumps, miniature edge banding machines, small fountain systems, small conveyors, and small conveyor belts, among other similar products.

This exceptional VFD has gained immense popularity worldwide, thanks to its outstanding reliability and performance. Its ability to optimize the functionality and efficiency of various small-sized equipment has made it the preferred choice for customers across different industries and geographical regions. With its broad range of applications and strong market demand, the NZ100 series VFD continues to dominate global sales.
