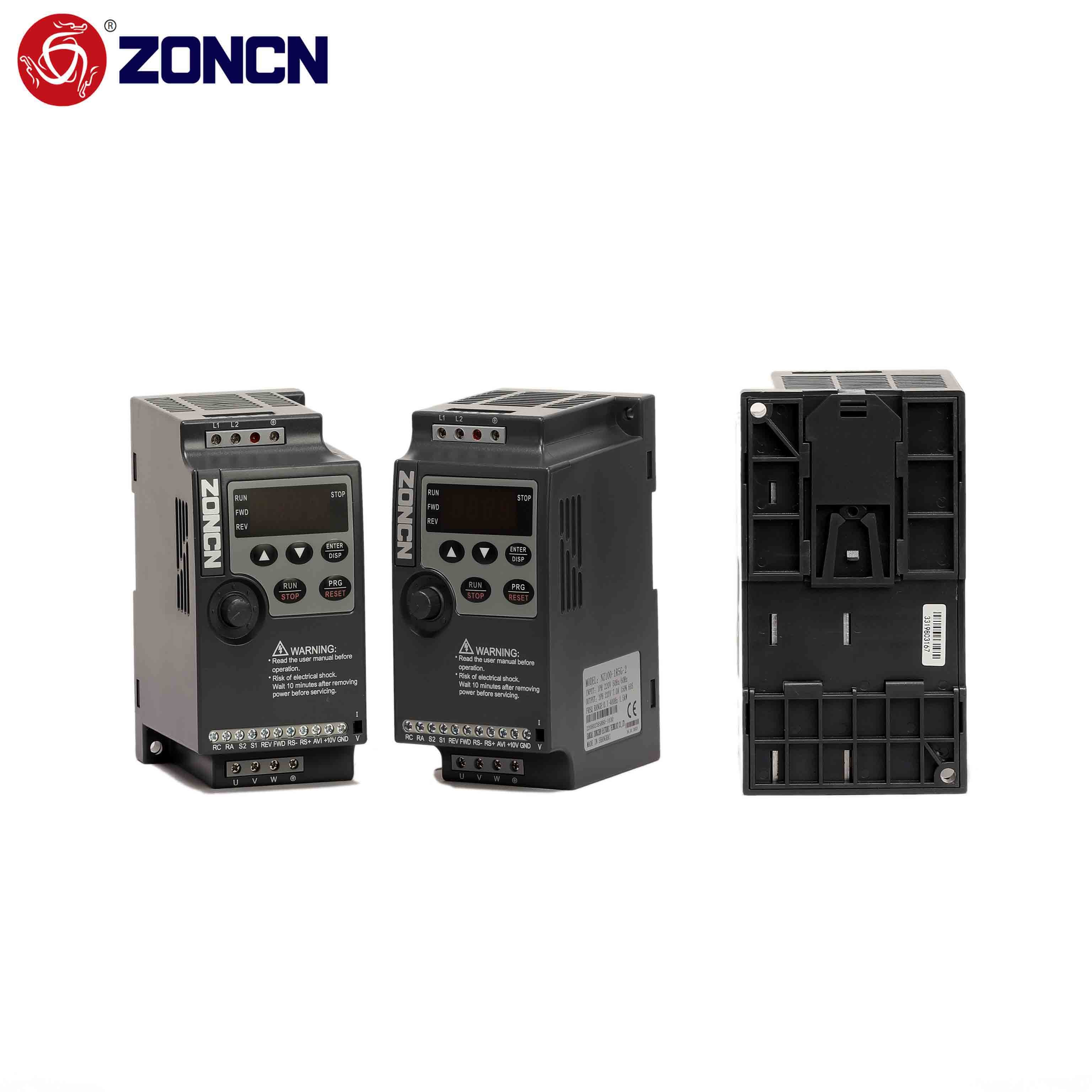

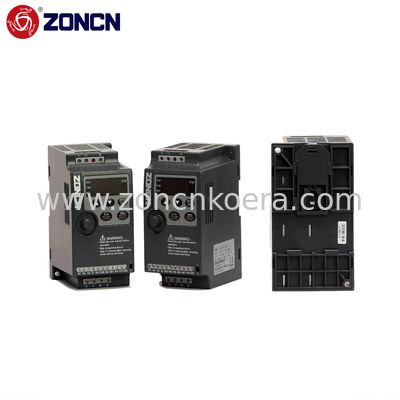

NZ100-5R5G-4 7HP Low Power Vfd Inverter 5.5kw 380V Vfd Ac Variable Frequency Drive

NZ100-5R5G-4 7HP 380V Low Voltage Inverter Motor Drives Vfd 50/60Hz

NZ100 series vfd inverter 380V 5.5KW NZ100-5R5G-4



Basic product introduction:

· Small and affordable design

· Exposed terminals, convenient for wiring

· Mountable on DIN rail (up to 5.5KW)

· RS485 communication using Modbus protocol

· No maintenance required

· Compatible with MODBUS ASCII protocol





The NZ100 series variable frequency drive (VFD) offers a range of advantages. Firstly, it supports RS485 communication, allowing for seamless integration with other devices and systems.



Additionally, the NZ100 VFD is known for its straightforward installation process, requiring minimal effort and time. The same applies to the debugging process, making it easy for users to configure and optimize the VFD for their specific needs.

In terms of cost-effectiveness, the NZ100 VFD provides an economical solution for achieving variable speed control, making it a budget-friendly choice for various applications.



Furthermore, the VFD is designed with energy efficiency in mind, resulting in significant power savings and reduced electricity consumption. It also prioritizes machine protection, ensuring the longevity and reliability of equipment.



The NZ100 VFD is equipped with built-in PID control, allowing for precise and efficient control of various processes. Lastly, the terminal wiring is simple and straightforward, making it convenient for users to connect and configure the VFD.





Technical Specific:

Items	NZ100 series inverter
Input rated voltage,frequency	One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range	170-240v(220v)330-440v(380v)
Output voltage range	0-220v(220v)0-380v(380v)
Output frequency range	0.1~400Hz
Indication	Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution	Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy	0.01Hz
VF control	Setting V/F curve to satisfy various load requirements
Torque boost	Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal	Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal	1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting	0~999.9s acceleration/deceleration time can be set individually
PID control	Build-in PID control
RS485	Standard RS485 communication function(MODBUS)
Frequency setting	Analog input: 0~ 10 V, 4~20mA Digital input: Operation panel or RS485 or UP/DOWN. Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed	Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation	Automatic voltage regulation function can be selected
Counter	Built-in 2 group of counters
Protection	IP20





Product wiring diagram:





Product model details:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2	0.4	5.4	2.5	0.4
NZ100-0R75G-2	0.75	8.2	5	0.75
NZ100-1R5G-2	1.5	14	7	1.5
NZ100-2R2G-2	2.2	23	11	2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4	0.75	3.4	2.7	0.75
NZ100-1R5G-4	1.5	5	4	1.5
NZ100-2R2G-4	2.2	5.8	5	2.2
NZ100-3R7G/5R5P-4	3.7	10.7	8.6	3.7
NZ100-5R5G/7R5P-4	5.5	14.6	12.5	5.5
NZ100-7R5G/11P-4	7.5	20	17.5	7.5
NZ100-11G/15P-4	11	26	24	11
NZ100-15G/18.5P-4	15	35	33	15





NZ100 product application:





NZ100 series product application:

The NZ100 series variable frequency drive (VFD) is highly suitable for a wide range of small-scale machinery applications. It is particularly well-suited for use in small food processing machines, compact packaging machines, small water pumps, miniature edge banding machines, small fountain systems, small conveyors, and small conveyor belts, among other products.

This versatile VFD has gained significant popularity worldwide due to its exceptional performance and reliability. Its ability to enhance the functionality and efficiency of various small-sized equipment has made it a top choice for customers in different industries and regions. With its wide application range and strong market demand, the NZ100 series VFD continues to be a best-selling product globally.





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
