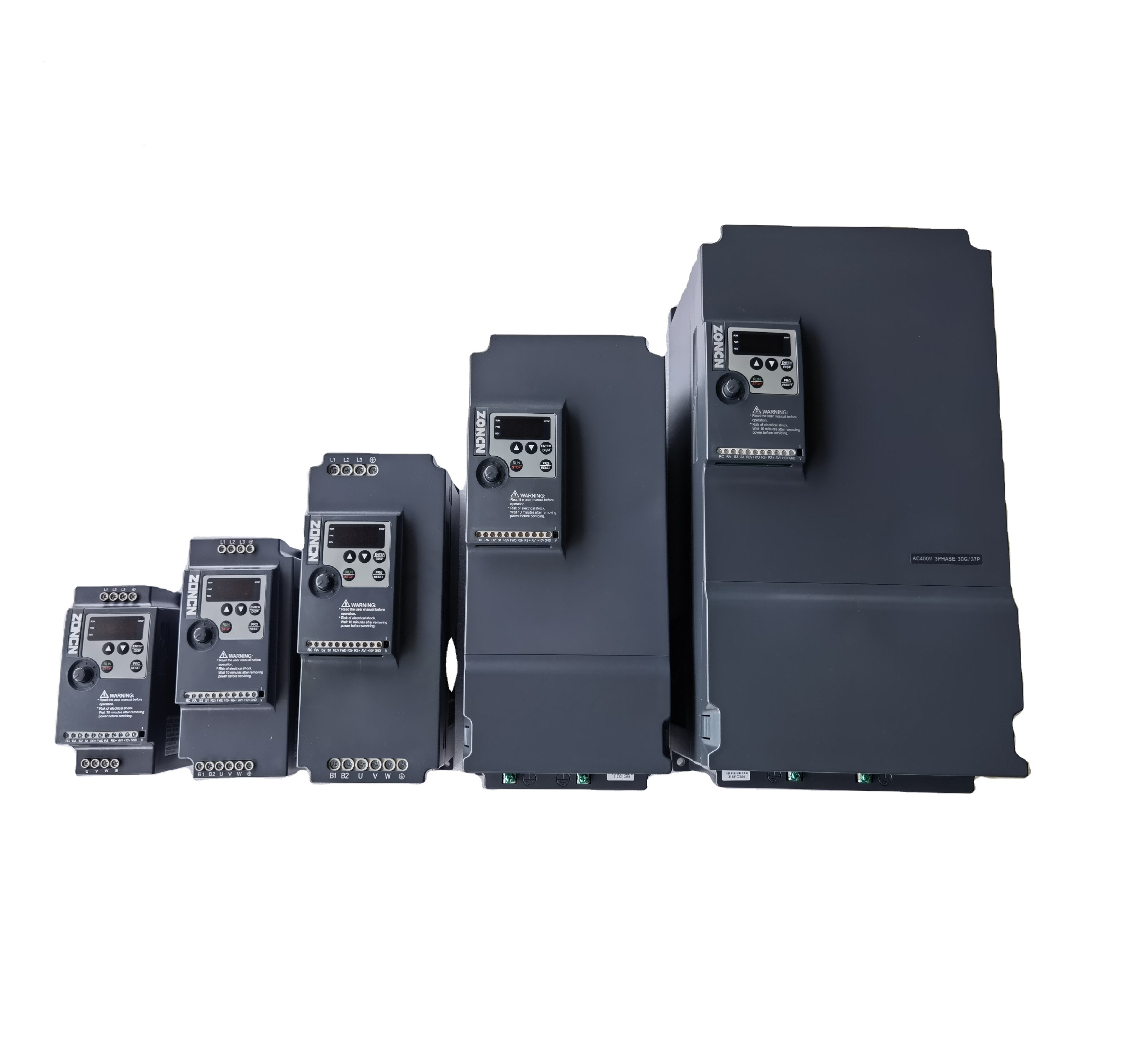

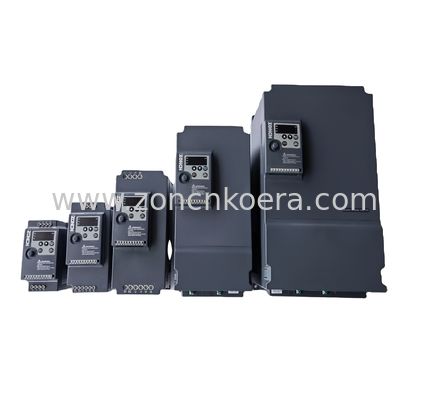

220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control

220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control
220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control
220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control 220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control 220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control 220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-1R5G-2
Minimum Order Quantity: 1 unit
Packaging Details: Carton； 15.5*10*13.5CM；0.8KG
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Highlight:

1.5kw Ac Motor Inverter Drive

,

220v Ac Motor Inverter Drive

Micro Inverter Low Voltage 220v 1.5kw Vfd Ac Drives Via Rs485 Vf Control

NZ100 series Micro AC Drives Inverter 1.5kw



Basic product introduction:

The NZ100 series inverter is highly favored by consumers for several reasons. Firstly, it offers an affordable price, making it a cost-effective choice. Secondly, it is easy to install with an external port, allowing for convenient wiring. It also provides an RS485 interface, enabling easy communication. Additionally, the NZ100 series can be configured with an external keyboard based on specific requirements. It features built-in PID functionality and VF control, satisfying basic speed control needs. Overall, the NZ100 series inverter is well-received by consumers due to its affordability, easy installation, external port, convenient wiring, RS485 interface, optional external keyboard, built-in PID functionality, and VF control.





Technical Specific:



Items ZONCN NZ100 series
Power Supply Rated voltage,frequency 1PH/3PH AC 220V 50/60Hz;3PH AC 380V 50/60Hz
Voltage range 220V:170-240V；380V:330-440V
Output Voltage range 220V: 0-220V ; 380V: 0-380V
Frequency range 0.10—400.00Hz
Control method V/F control, space vector control.



Indication

Operating status/Alarm definition/interactive guidance; eg, frequency setting, the output frequency/ current, DC bus

voltage, the temperature and so on.
Control specifications Output frequency range 0.10Hz-400.00Hz
Frequency setting resolution Digital input: 0.1Hz, analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.1Hz
V/F control Setting V/F curve to satisfy various load requirements.
Torque control Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20.0% of raising torque.




Multifunctional input terminal

Four multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed

switch, UP/DOWN function and emergency stop and other functions.
Multifunctional output terminal 1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings.

Acceleration

/ deceleration time

setting

 0~999.9s acceleration / deceleration time can be set individually
Other Functions PID control Build-in PID control
RS485 Standard RS485 communication function-MODBUS
Frequency setting Analog input:0-10V,0-20mA can be selected；Digital input:Input using the setting dial of the operation panel or RS485 or UP/DOWN. Note:AVI terminals can be used to select an analog voltage input(0-10V) and analog current input(4-20mAI) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters





Product wiring diagram:

220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control 0





Product applications:

The NZ100 series inverter is widely used as an electrical control device in various small-scale equipment. It features easy installation and can be easily connected and installed with different types of small-scale equipment. This makes it an ideal choice for applications in food machinery, small conveyors, small motors, small pumps, and other devices. The NZ100 series inverter not only provides stable and reliable electrical control but also offers equipment protection and energy-saving advantages. It effectively safeguards equipment from issues such as overcurrent, overvoltage, and overload, while optimizing energy utilization for energy-saving purposes. As a result, the NZ100 series inverter has found extensive applications in small-scale equipment and provides reliable electrical control solutions for various industries.



Product packaging:

220v 1.5kw Ac Motor Inverter Drive Via Rs485 Vf Control 1





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
