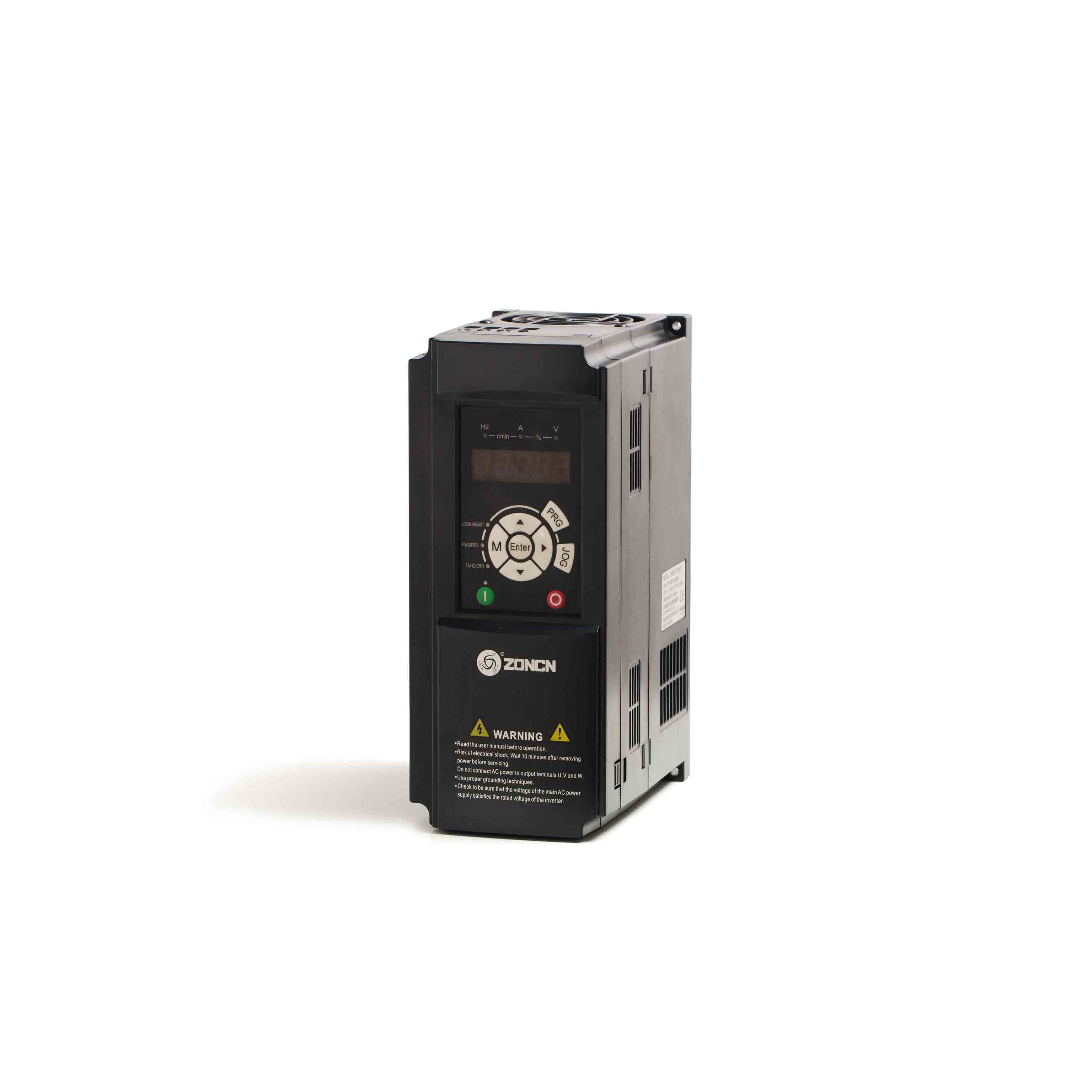

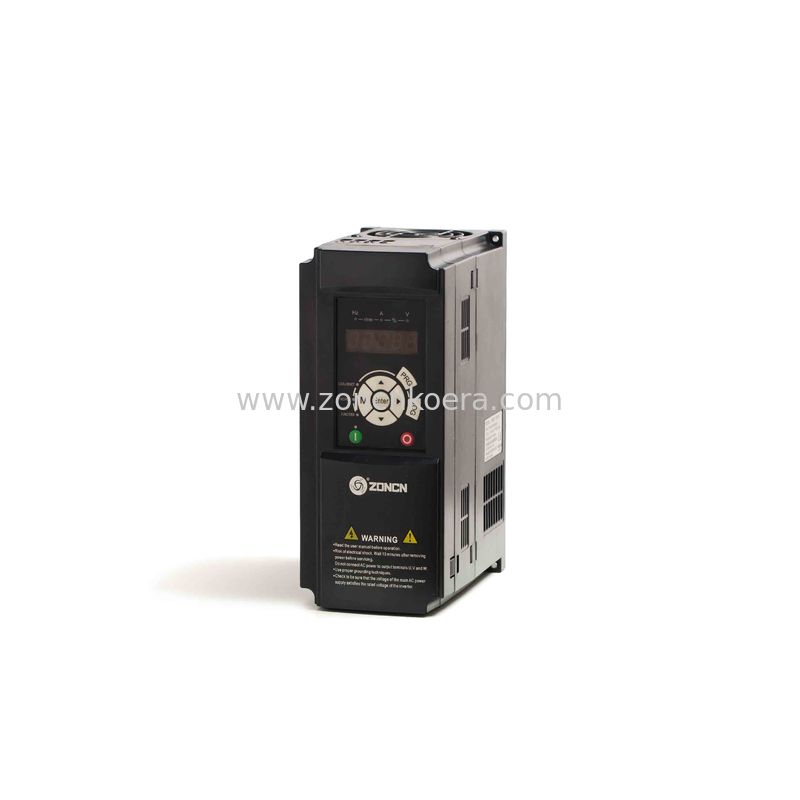

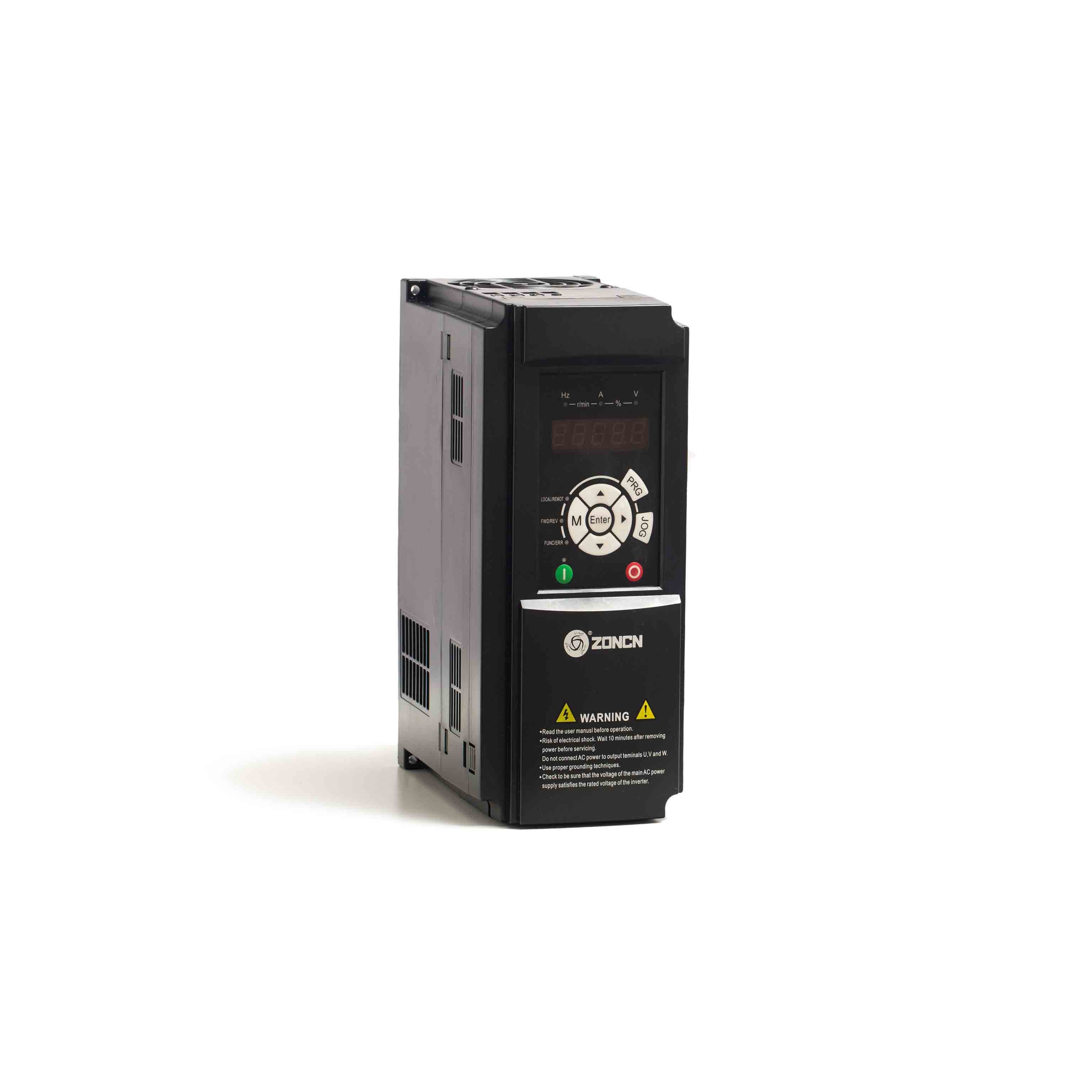

Low Frequency Low Voltage Inverter 22KW 440V 3 Phase In And 3 Phase Out

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	Eu CE certification
Model Number:	T9400-22G/30P

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Power:	22kw	Model:	T9400-22G/30P
Phase:	3phase In And 3phase Out	Voltage:	440V
Electric Reactor:	Optional	0.1s Acceleration And Deceleration:	Support
Highlight:	Low Frequency Low Voltage Inverter , Low Voltage Inverter 22KW 440V

22KW 440V Voltage Variable Frequency Inverter Vector Control Low Frequency ZONCN

ZONCN 22kw 440v Vector Control AC Inverter 3 Phase

Description of T9000 Inverter:

1: The T9000 series inverter offers both open-loop and closed-loop vector control options for synchronous and asynchronous motors, along with V/F control featuring built-in PID functionality.
2: It provides a robust torque output, ensuring smooth motor startup even under heavy load conditions.
3: With its exceptional performance and versatile functions, the T9000 series is well-suited for a wide array of general industrial applications.
4: The T9000 series is compatible with various types of PG cards.
5: It supports instant stop and start operations.
6: The T9000 series boasts a compact design that facilitates easy installation for customers.
7: It is available in multiple voltage ranges (220v, 380v, 415v, 440v, 460v) and offers a maximum power output of 450kw.

Technical Specification:

Item	T9000 series inverter
Control mode	V/F control；Open loop vector control (without PG); Closed loop vector control (with PG)
Maximum frequency	0~600Hz
Carrier frequency	0.5kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Startup torque	G type: 0.5Hz/150%(SFVC) ； P type: 0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto boost or Customized boost 0.1%-30.0%
V/F cure	Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power,square)
V/F separation	2 types: complete separation；half separation
Ramp mode	Straight-line ramp ; Four groups of acceleration/deceleration time with the range of 0.00'6500.0s
Simple PLC, Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode.
Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Timing control	Timing range:0.0Min~6500.0Min
High performance	Control of asynchronous motor are implemented through the high-performance current vector control technology.
Rapid dip ride through	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Altitude	Lower than 1000m
Ambient temperature	-10℃-+40℃(de-rated if the ambient temperature is between 40℃-50℃)
Vibration	Less than 5.9m/s²(0.6g)

T9000 hardware configuration list:

T9000 Series
Vector/VF control	Yes	Closed loop vector control	Yes
Built-in brake unit	Support below 37kw. Above 45kw optional	0.1s acceleration and deceleration	Yes
Removable panel	Support below 5.5kw	High speed pulse output	Yes
24v power supply	Yes	DC braking	Yes
STO function	Yes	Profinet / RS485	Yes
I/O extension	Yes	External set filter	Yes
External brake resistor	Yes	Simple PLC function	Yes
Electric reactor	Optional	PID	Yes
EMC filter	Optional	level of protection	IP20
Safety certificate	CE	Simple PLC function	Yes
Collector	1	Multi-protection	Yes

Application:

The T9000 series inverter is widely used in various fields such as lathes, water pumps, oil pumps, textile machines, air compressors, and irrigation systems. It is known for its excellent performance, easy debugging, and energy-saving features. The T9000 series inverter has proven to be highly reliable and efficient in these applications, making it a preferred choice for many industries. Its advanced technology and user-friendly interface make it easy to install and operate. Moreover, the T9000 series inverter is designed to optimize energy consumption, resulting in significant energy savings. Overall, the T9000 series inverter offers exceptional performance and energy efficiency, making it an ideal solution for a wide range of industrial applications.

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
