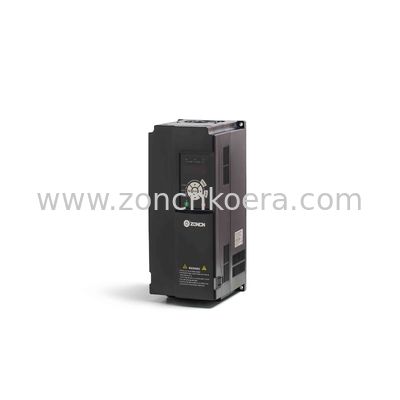

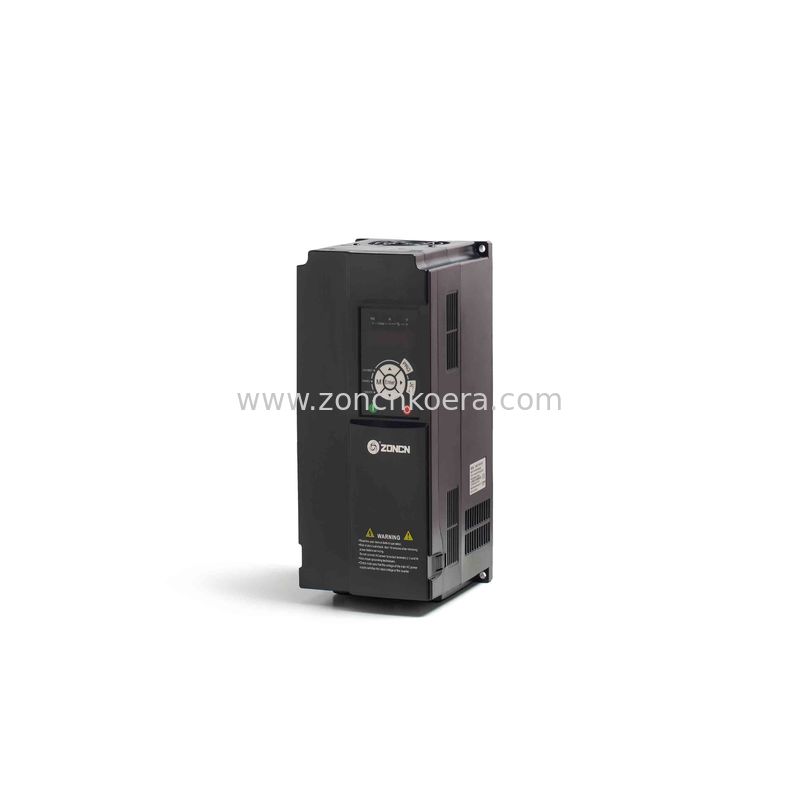

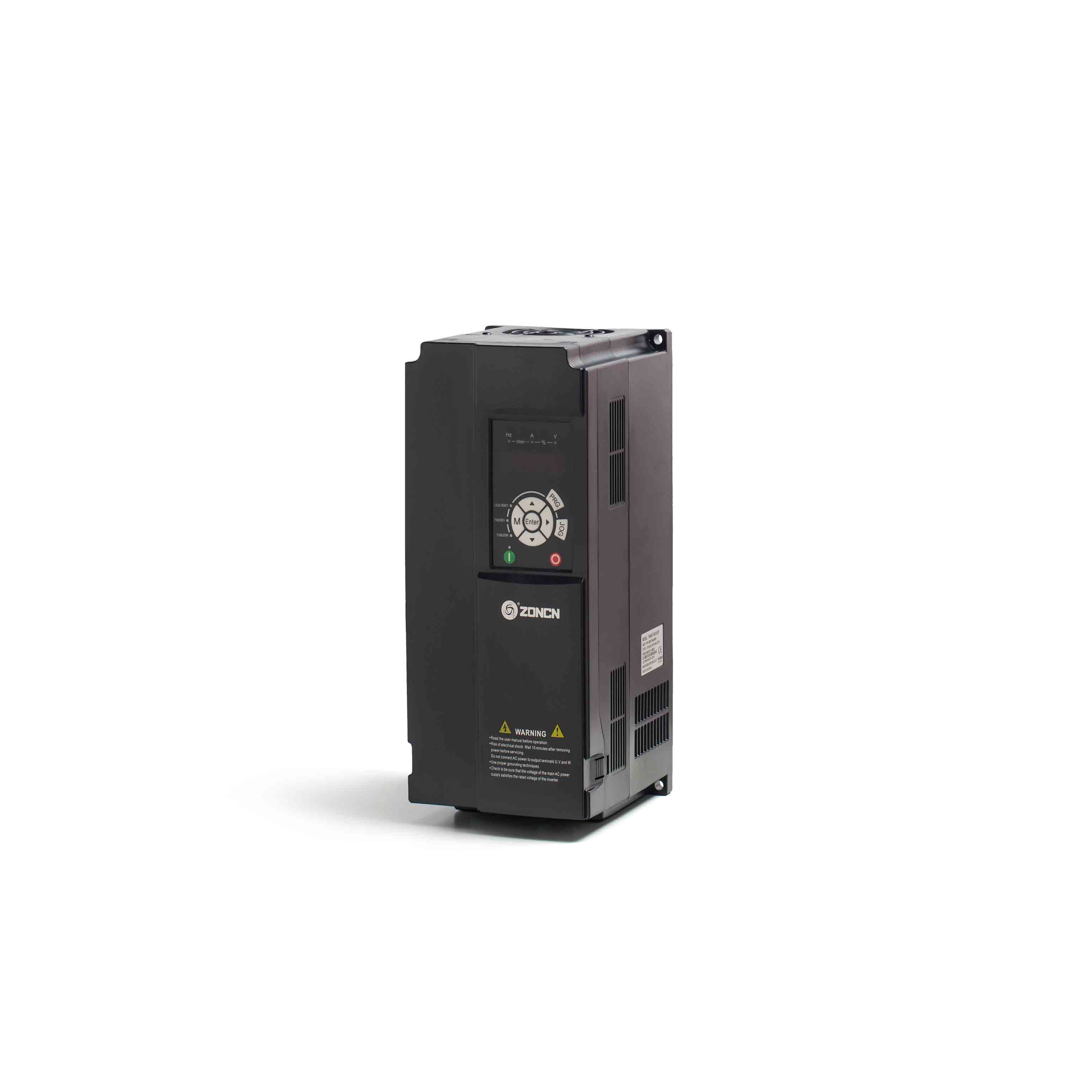

ZONCN T9400-18.5G/22P Vector Frequency Inverter 400v Voltage

ZONCN T9400-18.5G/22P Vector Frequency Inverter 400v Voltage
ZONCN T9400-18.5G/22P Vector Frequency Inverter 400v Voltage ZONCN T9400-18.5G/22P Vector Frequency Inverter 400v Voltage ZONCN T9400-18.5G/22P Vector Frequency Inverter 400v Voltage
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: Eu CE certification
Model Number: T9400-18.5G/22P
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Power: 18.5KW Model: T9400-18.5G/22P
Phase: 3phase In And 3phase Out Type: AC Frequency Inverter
Material: ABS+PC Application: Motor Speed Control
Storage Temperature: -20~60℃
Highlight:

T9400-18.5G/22P Vector Frequency Inverter

,

Vector Frequency Inverter 400v Voltage

ZONCN T9400-18.5G/22P AC Low Frequency Inverter 400v Voltage Variador De Frecuencia

ZONCN 18kw Closed Loop Vector Control Inverter



Description of T9000 Inverter:

1: The T9000 series inverter provides both open-loop and closed-loop vector control for synchronous and asynchronous motors, as well as V/F control with built-in PID functionality.
2: It delivers high torque output, ensuring smooth motor start even under heavy loads.
3: With its powerful functions and outstanding performance, the T9000 series is suitable for a wide range of general industrial applications.
4: The T9000 series supports various types of PG cards.
5: It enables instant stop and start functions.
6: The compact design of the T9000 series makes it easy for customers to install.
7: It is available in voltage ranges of 220v, 380v, 415v, 440v, 460v, with a maximum power output of 450kw.



Technical Specification:

Item T9000 series inverter
Control mode V/F control；Open loop vector control (without PG); Closed loop vector control (with PG)
Maximum frequency 0~600Hz
Carrier frequency  0.5kHz~16kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: Maximum frequency 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range 1:100(SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity G Type:60s for 150% of the rated current, 3s for 180% of the rated current.
P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost or Customized boost 0.1%-30.0%
V/F cure Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power,square)
V/F separation 2 types: complete separation；half separation
Ramp mode Straight-line ramp ; Four groups of acceleration/deceleration time with the range of 0.00'6500.0s
Simple PLC, Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode.
Support for multiple PG card Support for differential input PG card, resolver PG card ,rotating transformer PG card
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Timing control Timing range:0.0Min~6500.0Min
High performance Control of asynchronous motor are implemented through the high-performance current vector control technology.
Rapid dip ride through The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Altitude Lower than 1000m
Ambient temperature -10℃-+40℃(de-rated if the ambient temperature is between 40℃-50℃)
Vibration Less than 5.9m/s²(0.6g)





T9000 Model list :

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH/3PH AC 220V±15%
T9200-0R4G 0.4 5.4 2.5 0.4
T9200-0R75G 0.75 7.2 5 0.75
T9200-1R5G 1.5 10 7 1.5
T9200-2R2G 2.2 16 11 2.2
T9200-3R7G 3.7 17 16.5 3.7
T9200-5R5G 5.5 26 25 5.5
T9200-7R5G 7.5 35 32 7.5
Input voltage(v):3PH AC 380V±15%
T9400-0R4G 0.4 3.4 1.2 0.4
T9400-0R75G 0.75 3.8 2.5 0.75
T9400-1R5G 1.5 5 3.7 1.5
T9400-2R2G 2.2 5.8 5 2.2
T9400-3R7G/5R5P 3.7/5.5 10/15 9/13 3.7/5.5
T9400-5R5G/7R5P 5.5/7.5 15/20 13/17 5.5/7.5
T9400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
T9400-11G/15P 11/15 26/35 25/32 11/15
T9400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
T9400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
T9400-22G/30P 22/30 46/62 45/60 22/30
T9400-30G/37P 30/37 62Z76 60/75 30/37
T9400-37G/45P 37/45 76/90 75/90 37/45
T9400-45G/55P 45/55 92/113 90/110 45/55





T9000 hardware configuration list:



T9000 Series
Vector/VF control Yes Closed loop vector control Yes
Built-in brake unit

Support below 37kw.

Above 45kw optional

 0.1s acceleration and deceleration Yes
Removable panel Support below 5.5kw High speed pulse output Yes
24v power supply Yes DC braking Yes
STO function Yes Profinet / RS485 Yes
I/O extension Yes External set filter Yes
External brake resistor Yes Simple PLC function Yes
Electric reactor Optional PID Yes
EMC filter Optional level of protection IP20
Safety certificate CE Simple PLC function Yes
Collector 1 Multi-protection Yes




Application:

ZONCN T9400-18.5G/22P Vector Frequency Inverter 400v Voltage 0





FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
