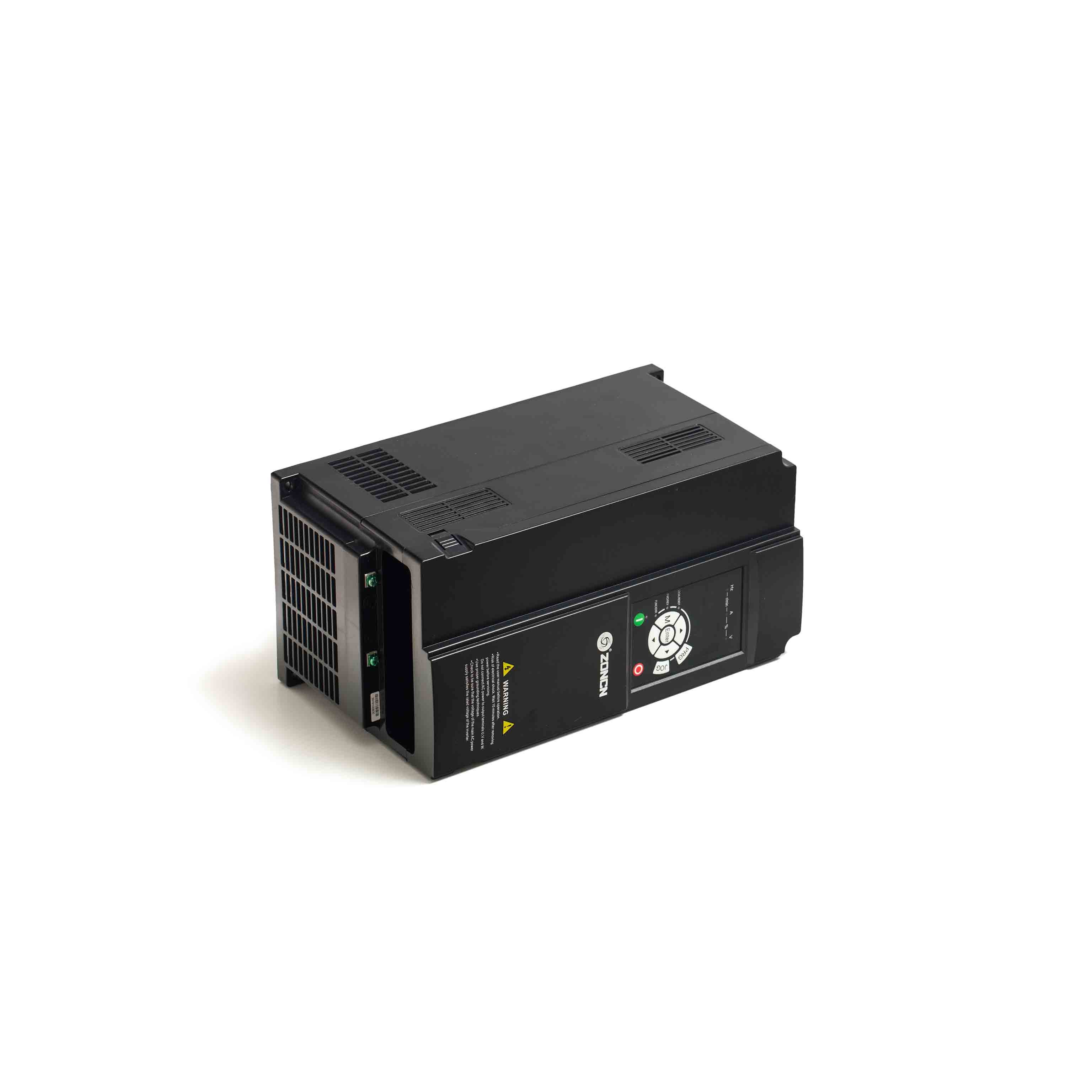

T9400-15G/18.5P Variable Frequency Drive Inverter 18.5kw 380v

T9400-15G/18.5P Variable Frequency Drive Inverter 18.5kw 380v
T9400-15G/18.5P Variable Frequency Drive Inverter 18.5kw 380v T9400-15G/18.5P Variable Frequency Drive Inverter 18.5kw 380v T9400-15G/18.5P Variable Frequency Drive Inverter 18.5kw 380v
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: Eu CE certification
Model Number: T9400-15G/18.5P
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Power: 15KW Model: T9400-15G/18.5P
Voltage: 380V AC Drives STO Fucntion: Yes
Profinet Communication: Yes ODM: Yes
Highlight:

T9400-15G/18.5P Variable Frequency Drive Inverter

,

Variable Frequency Drive Inverter 18.5kw 380v

T9400-15G/18.5P Low Frequency Inverter 18.5kw 380v volage Ac Variador De Frecuencia

ZONCN 15kw 400v High Performance AC Drives Vfd



Basic product introduction:

1: Vector control for synchronous and asynchronous motors with open-loop/closed-loop capability, V/F control (equipped with integrated PID)
2: High torque output to ensure smooth motor start-up even under heavy load conditions
3: Versatile functionality, exceptional performance, suitable for a wide range of applications
4: Compatible with various types of position feedback (PG) cards
5: Supports instantaneous stop and start operations
6: Compact design for easy customer installation
7: Available voltage options include 220v, 380v, 415v, 440v, and 460v, with a maximum power rating of 450kw.



Technical Specification:

ItemT9000 series inverter
Control modeV/F control；Open loop vector control (without PG); Closed loop vector control (with PG)
Maximum frequency0~600Hz
Carrier frequency 0.5kHz~16kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolutionDigital setting:0.01Hz
Analog setting: Maximum frequency 0.025%
Startup torqueG type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range1:100(SVC)
Speed stability accuracy±0.5%(SVC)
Overload capacityG Type:60s for 150% of the rated current, 3s for 180% of the rated current.
P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boostAuto boost or Customized boost 0.1%-30.0%
V/F cureStraight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power,square)
V/F separation2 types: complete separation；half separation
Ramp modeStraight-line ramp ; Four groups of acceleration/deceleration time with the range of 0.00'6500.0s
Simple PLC, Multiple preset speedsIt implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulationIt can keep constant output voltage automatically when the mains voltage changes
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Torque limit and controlIt can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode.
Support for multiple PG cardSupport for differential input PG card, resolver PG card ,rotating transformer PG card
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Timing controlTiming range:0.0Min~6500.0Min





Product configuration T9000:

· Vector/VF control:Yes
· Closed loop vector control:Yes
· Built-in brake unit:Support below 37kw,above 45kw optional
· 0.1s acceleration and deceleration:Yes
· Removable panel:Yes
· High speed pulse output:Yes
· 24v power supply:Yes

· DC braking:Yes
· STO function:Yes
· Profinet / RS485:Yes
· I/O extension:Yes
· External set filter:Yes
· External brake resistor:Yes
· Simple PLC function:Yes
· Electric reactor:Optional
· PID:Yes
· Level of protection:IP20



Product application:

T9000 series inverter is an advanced equipment widely used in the field of industrial control. It is widely used in compressors, pumps, fans, lathes and other small and medium-sized equipment. The T9000 series inverter has the characteristics of long service life and low failure rate, so it is loved by consumers. Its stability and reliability make it the preferred device in the field of industrial control. Not only that, the T9000 series inverter also has the characteristics of high efficiency and energy saving, which can effectively improve the operating efficiency of the equipment and reduce energy consumption. In short, the wide application of T9000 series inverter in the field of industrial control provides reliable support for the operation of various small and medium-sized equipment.



T9000 configuration table:

T9400-15G/18.5P Variable Frequency Drive Inverter 18.5kw 380v 0



FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.


Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
