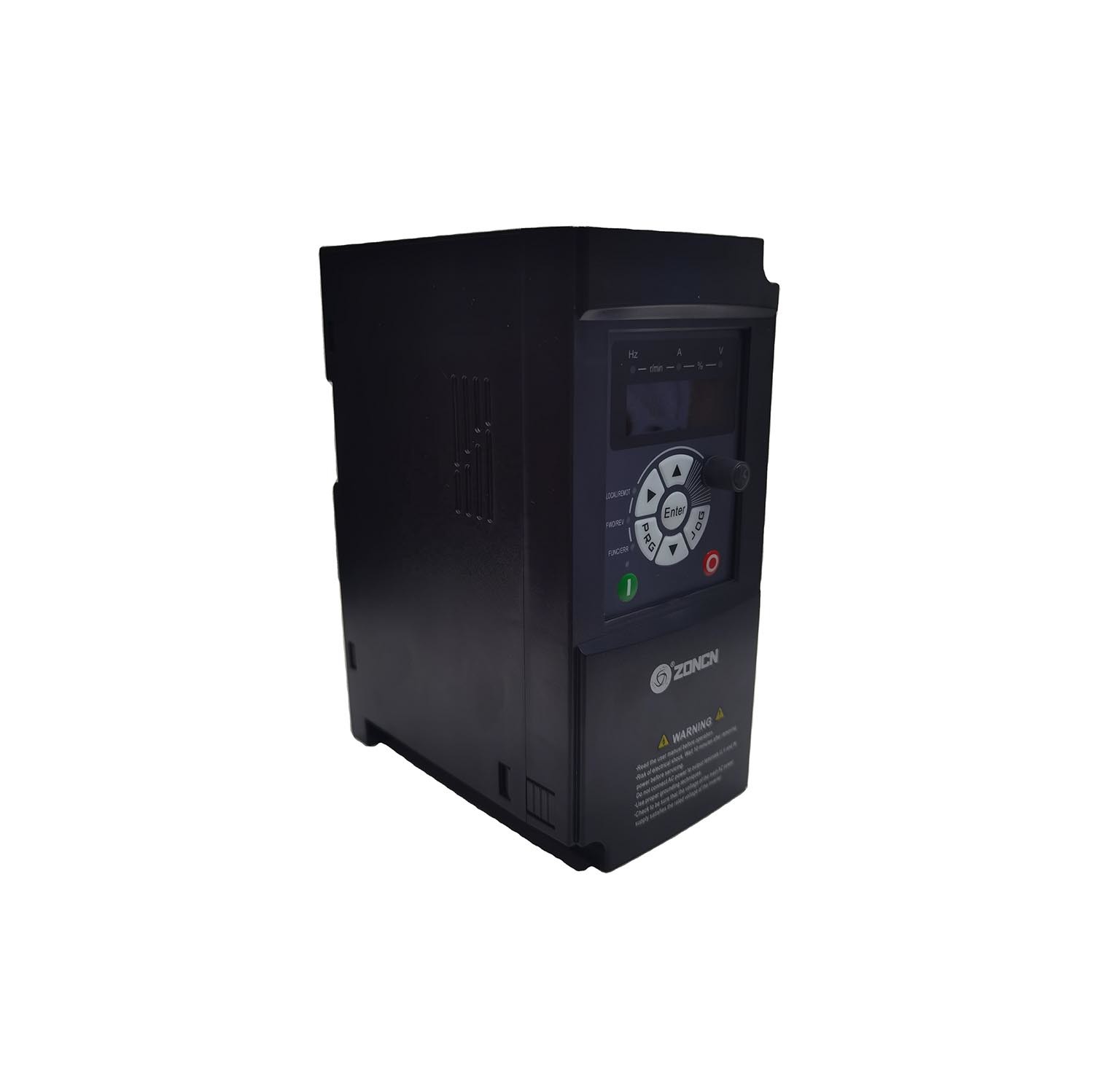

ZONCN T9000 Low Voltage Inverter Low Frequency Inverter 400v

ZONCN T9000 Low Voltage Inverter Low Frequency Inverter 400v
ZONCN T9000 Low Voltage Inverter Low Frequency Inverter 400v ZONCN T9000 Low Voltage Inverter Low Frequency Inverter 400v ZONCN T9000 Low Voltage Inverter Low Frequency Inverter 400v
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: Eu CE certification
Model Number: T9400-11G/15P
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Power: 11kw Model: T9400-11G/15P
Voltage: 400V AC ODM: Support
OEM: Support Brand: ZONCN T9000 Series
Highlight:

Low Voltage Inverter Low Frequency

,

ZONCN T9000 Low Voltage Inverter

,

Low Frequency Inverter 400v

T9400-11G/15P Low Frequency Inverter 400v Voltage Vfd Inverter Drives

ZONCN 11kw 400v Advanced Vfd Inverter AC Drives



Basic product introduction:
1: Vector control for synchronous and asynchronous motors in both open-loop and closed-loop modes, V/F control (with integrated PID)
2: High torque output for smooth motor start-up even under heavy loads
3: Versatile and high-performance, suitable for a wide range of applications
4: Compatible with various types of PG cards
5: Supports instant stop and start functionality
6: Compact design for easy installation by customers
7: Available in voltage ranges of 220v, 380v, 415v, 440v, 460v, with a maximum power rating of 450kw.



Technical Specification:

ItemT9000 series inverter
Control modeV/F control；Open loop vector control (without PG); Closed loop vector control (with PG)
Maximum frequency0~600Hz
Carrier frequency 0.5kHz~16kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolutionDigital setting:0.01Hz
Analog setting: Maximum frequency 0.025%
Startup torqueG type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range1:100(SVC)
Speed stability accuracy±0.5%(SVC)
Overload capacityG Type:60s for 150% of the rated current, 3s for 180% of the rated current.
P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boostAuto boost or Customized boost 0.1%-30.0%
V/F cureStraight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power,square)
V/F separation2 types: complete separation；half separation
Ramp modeStraight-line ramp ; Four groups of acceleration/deceleration time with the range of 0.00'6500.0s
Simple PLC, Multiple preset speedsIt implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulationIt can keep constant output voltage automatically when the mains voltage changes
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Torque limit and controlIt can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode.
Support for multiple PG cardSupport for differential input PG card, resolver PG card ,rotating transformer PG card
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Timing controlTiming range:0.0Min~6500.0Min





Product configuration T9000:

· Vector/VF control:Yes
· Closed loop vector control:Yes
· Built-in brake unit:Support below 37kw,above 45kw optional
· 0.1s acceleration and deceleration:Yes
· Removable panel:Yes
· High speed pulse output:Yes
· 24v power supply:Yes

· DC braking:Yes
· STO function:Yes
· Profinet / RS485:Yes
· I/O extension:Yes
· External set filter:Yes
· External brake resistor:Yes
· Simple PLC function:Yes
· Electric reactor:Optional
· PID:Yes
· Level of protection:IP20



Product application:

ZONCN T9000 Low Voltage Inverter Low Frequency Inverter 400v 0


T9000 product advantages:

The T9000 series inverter offers numerous advantages in the industrial sector. Firstly, it effectively safeguards the motor, extending its lifespan and reducing maintenance costs. Secondly, the T9000 series inverter provides flexible speed control, allowing for customized motor running speeds to optimize productivity. Additionally, this inverter series incorporates STO functionality (safe torque off), ensuring motor shutdown during emergencies and prioritizing staff safety. Moreover, the T9000 series inverter features a high torque output capability, facilitating smooth motor startup under heavy loads and preventing equipment damage from excessive impact during startup. In conclusion, the T9000 series inverter offers significant benefits in industrial applications, creating a secure and reliable operational environment while improving production efficiency.


FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
