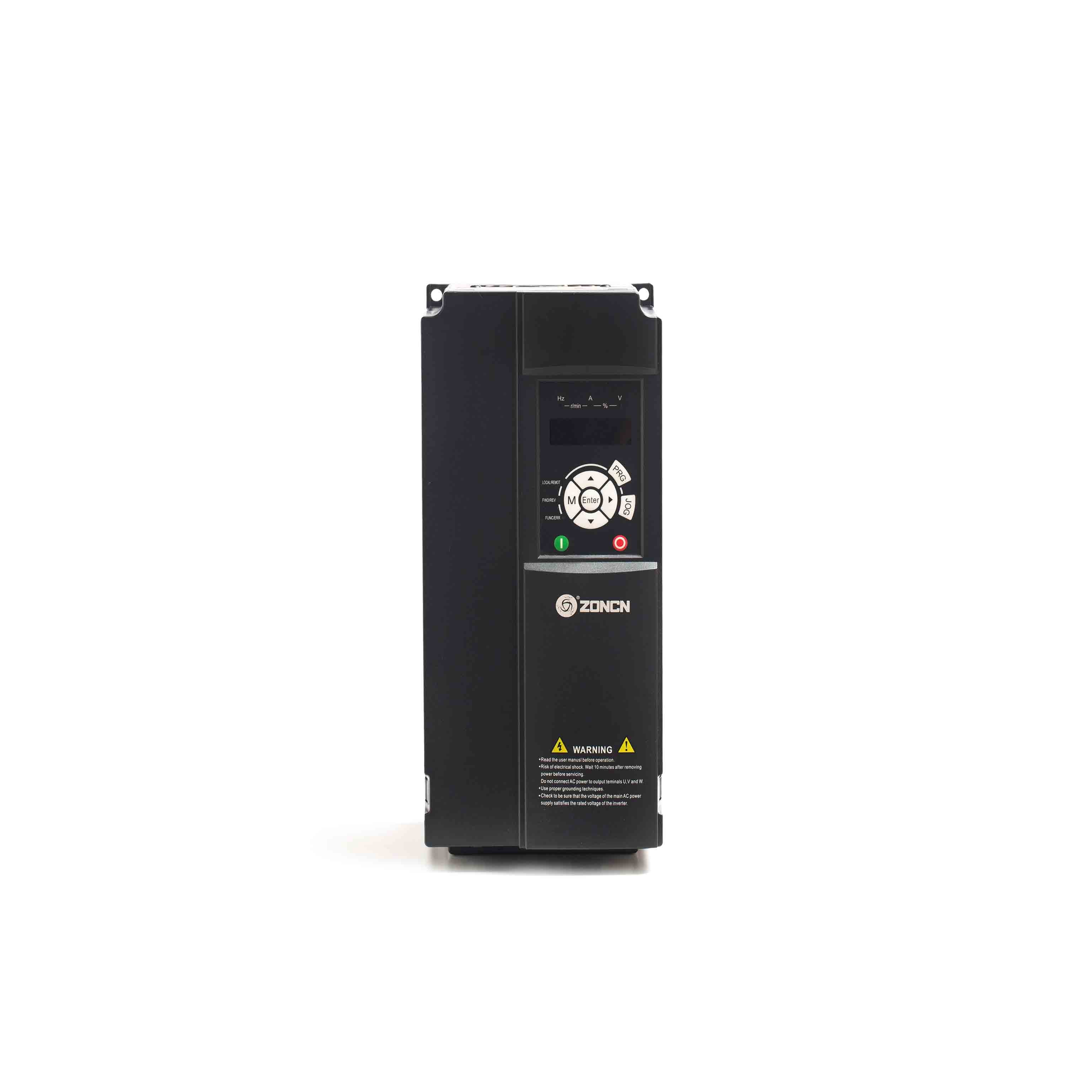

7.5kw Vector Control Inverter Vector Frequency Inverter 400v

7.5kw Vector Control Inverter Vector Frequency Inverter 400v
7.5kw Vector Control Inverter Vector Frequency Inverter 400v 7.5kw Vector Control Inverter Vector Frequency Inverter 400v 7.5kw Vector Control Inverter Vector Frequency Inverter 400v
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: Eu CE certification
Model Number: T9400-7R5G/11P
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Power: 7.5kw Model: T9400-7R5G/11P
Voltage: 380v Voltage ODM: Yes
OEM: Yes Brand: ZONCN
Highlight:

7.5kw Vector Control Inverter

,

Vector Control Inverter 400v

,

Vector Frequency Inverter 400v

T9400-7R5G/11P Low Frequency Inverter 400v Voltage 7.5kw Inverter

ZONCN 5.5kw 400v Advanced Frequency Inverter



Basic product introduction:


1: T9000 series variable frequency drives offer open-loop/closed-loop vector control for both synchronous and asynchronous motors, as well as V/F control (with integrated PID).
2: The T9000 series provides robust torque output to ensure seamless motor startup even under heavy loads.
3: With its impressive functionality and exceptional performance, the T9000 series is well-suited for a wide range of general applications.
4: The T9000 series is compatible with various types of PG cards.
5: The T9000 series enables instant stop and start operations.
6: Designed with compactness and user-friendliness in mind, the T9000 series facilitates easy customer installation.
7: The T9000 series supports voltage ranges of 220v, 380v, 415v, 440v, and 460v, with a maximum power capacity of 450kw.



Technical Specification:

Item T9000 series inverter
Control mode V/F control；Open loop vector control (without PG); Closed loop vector control (with PG)
Maximum frequency 0~600Hz
Carrier frequency  0.5kHz~16kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: Maximum frequency 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range 1:100(SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity G Type:60s for 150% of the rated current, 3s for 180% of the rated current.
P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost or Customized boost 0.1%-30.0%
V/F cure Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power,square)
V/F separation 2 types: complete separation；half separation
Ramp mode Straight-line ramp ; Four groups of acceleration/deceleration time with the range of 0.00'6500.0s
Simple PLC, Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode.
Support for multiple PG card Support for differential input PG card, resolver PG card ,rotating transformer PG card
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Timing control Timing range:0.0Min~6500.0Min





Product configuration T9000:

· Vector/VF control:Yes
· Closed loop vector control:Yes
· Built-in brake unit:Support below 37kw,above 45kw optional
· 0.1s acceleration and deceleration:Yes
· Removable panel:Yes
· High speed pulse output:Yes
· 24v power supply:Yes

· DC braking:Yes
· STO function:Yes
· Profinet / RS485:Yes
· I/O extension:Yes
· External set filter:Yes
· External brake resistor:Yes
· Simple PLC function:Yes
· Electric reactor:Optional
· PID:Yes
· Level of protection:IP20



Product application:

7.5kw Vector Control Inverter Vector Frequency Inverter 400v 0




T9000 product advantages:

The T9000 series inverter offers numerous benefits in the industrial sector. Firstly, it effectively safeguards the motor, prolonging its lifespan and reducing maintenance expenses. Secondly, the T9000 series inverter provides flexible speed adjustment, enabling the motor's running speed to be tailored to specific requirements and enhancing productivity. Additionally, this inverter series incorporates STO functionality (safe torque off), guaranteeing motor shutdown during emergencies and ensuring staff safety. Moreover, the T9000 series inverter boasts high torque output capacity, enabling smooth motor startup under heavy loads and preventing equipment damage caused by excessive impact during startup. In conclusion, the T9000 series inverter presents considerable advantages in the industrial field, creating a secure and dependable operational environment while enhancing production efficiency.





FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
