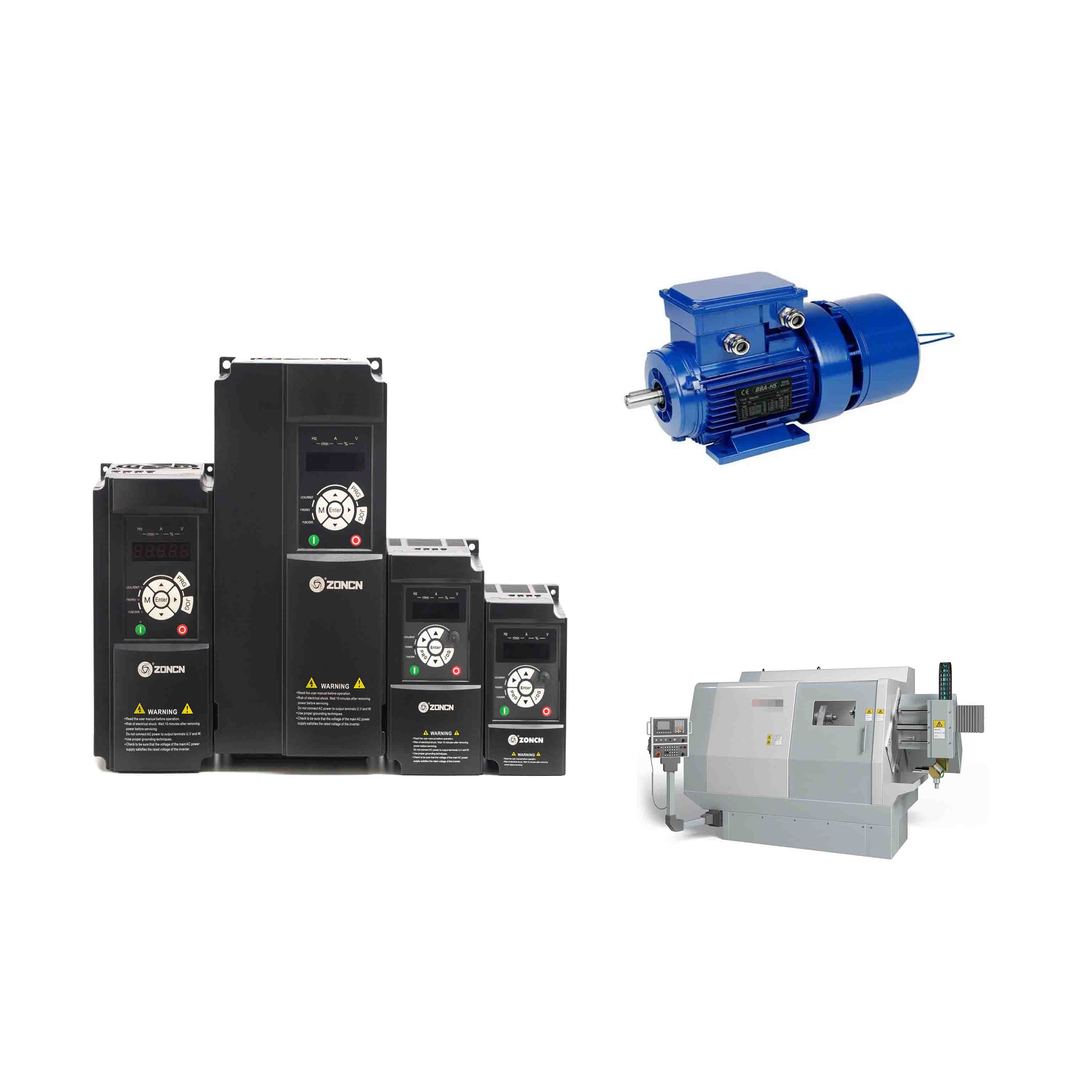

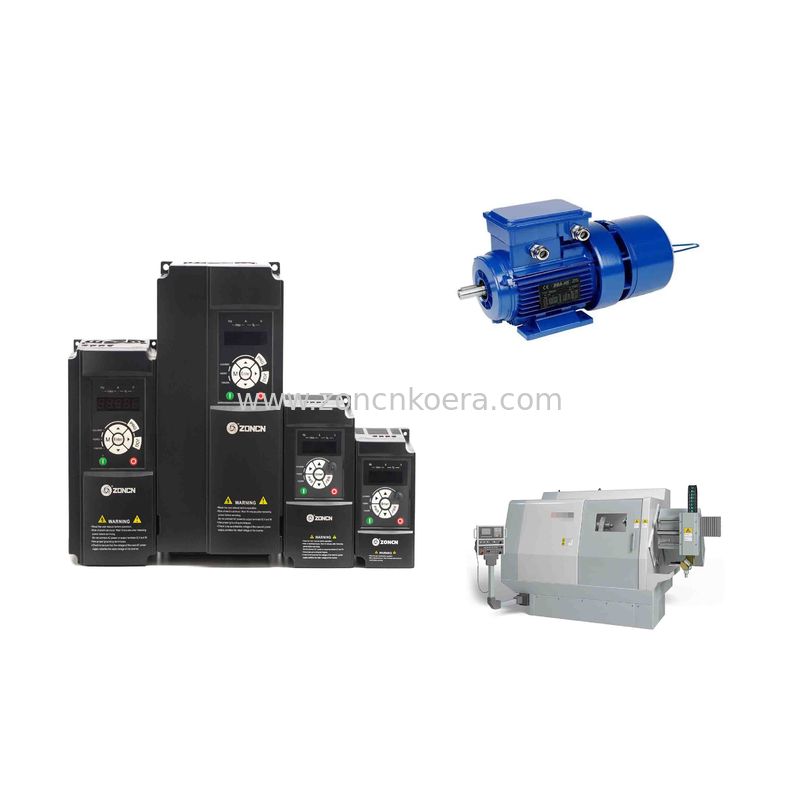

Low Voltage Inverter Closed Loop Control Eu CE certification

Low Voltage Inverter Closed Loop Control Eu CE certification
Low Voltage Inverter Closed Loop Control Eu CE certification Low Voltage Inverter Closed Loop Control Eu CE certification Low Voltage Inverter Closed Loop Control Eu CE certification
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: Eu CE certification
Model Number: T9400-3R7G/5R5P
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Power: 3.7KW Model: T9400-3R7G/5R5P
Voltage: 400v Multi-protection: Support
Simple PLC Function: Yes Packing: Carton Packing
Highlight:

Low Voltage Inverter Closed Loop

,

Low Voltage Inverter Eu CE

,

Inverter Closed Loop Control CE

Low Voltage Variador De Frecuencia 380V Inverter Variable Frequency Drive VFD 3.7kw

ZONCN T9000 3.7kw 380v Variador De Frecuencia



Basic product introduction:

1: Open-loop/closed-loop vector control for synchronous and asynchronous motors, as well as V/F control (featuring integrated PID)
2: Robust torque output to ensure seamless motor startup even under heavy loads
3: Exceptional functionality and performance, making it suitable for a wide range of general applications
4: Compatible with various types of PG cards
5: Supports immediate stop and start functions
6: Compact and user-friendly design for easy installation
7: The voltage options include 220v, 380v, 415v, 440v, and 460v, with a maximum power rating of 450kw.




Technical Specification:

ItemT9000 series inverter
Control modeV/F control；Open loop vector control (without PG); Closed loop vector control (with PG)
Maximum frequency0~600Hz
Carrier frequency 0.5kHz~16kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolutionDigital setting:0.01Hz
Analog setting: Maximum frequency 0.025%
Startup torqueG type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range1:100(SVC)
Speed stability accuracy±0.5%(SVC)
Overload capacityG Type:60s for 150% of the rated current, 3s for 180% of the rated current.
P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boostAuto boost or Customized boost 0.1%-30.0%
V/F cureStraight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power,square)
V/F separation2 types: complete separation；half separation
Ramp modeStraight-line ramp ; Four groups of acceleration/deceleration time with the range of 0.00'6500.0s
Simple PLC, Multiple preset speedsIt implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulationIt can keep constant output voltage automatically when the mains voltage changes
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Torque limit and controlIt can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode.
Support for multiple PG cardSupport for differential input PG card, resolver PG card ,rotating transformer PG card
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Timing controlTiming range:0.0Min~6500.0Min





Product configuration T9000:

· Vector/VF control:Yes
· Closed loop vector control:Yes
· Built-in brake unit:Support below 37kw,above 45kw optional
· 0.1s acceleration and deceleration:Yes
· Removable panel:Yes
· High speed pulse output:Yes
· 24v power supply:Yes

· DC braking:Yes
· STO function:Yes
· Profinet / RS485:Yes
· I/O extension:Yes
· External set filter:Yes
· External brake resistor:Yes
· Simple PLC function:Yes
· Electric reactor:Optional
· PID:Yes
· Level of protection:IP20



Product wiring diagram:

Low Voltage Inverter Closed Loop Control Eu CE certification 0


T9000 product advantages:

The T9000 series inverter is a device with outstanding advantages in the industry. It can not only effectively protect the motor, extend its service life, but also flexibly adjust the running speed to meet the needs of different processes. In addition, the T9000 series inverter has excellent performance, can be stable and reliable operation, improve production efficiency. Most importantly, its price is close to the people, saving costs for enterprises, so that more enterprises can enjoy the benefits of advanced frequency control technology.



FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
