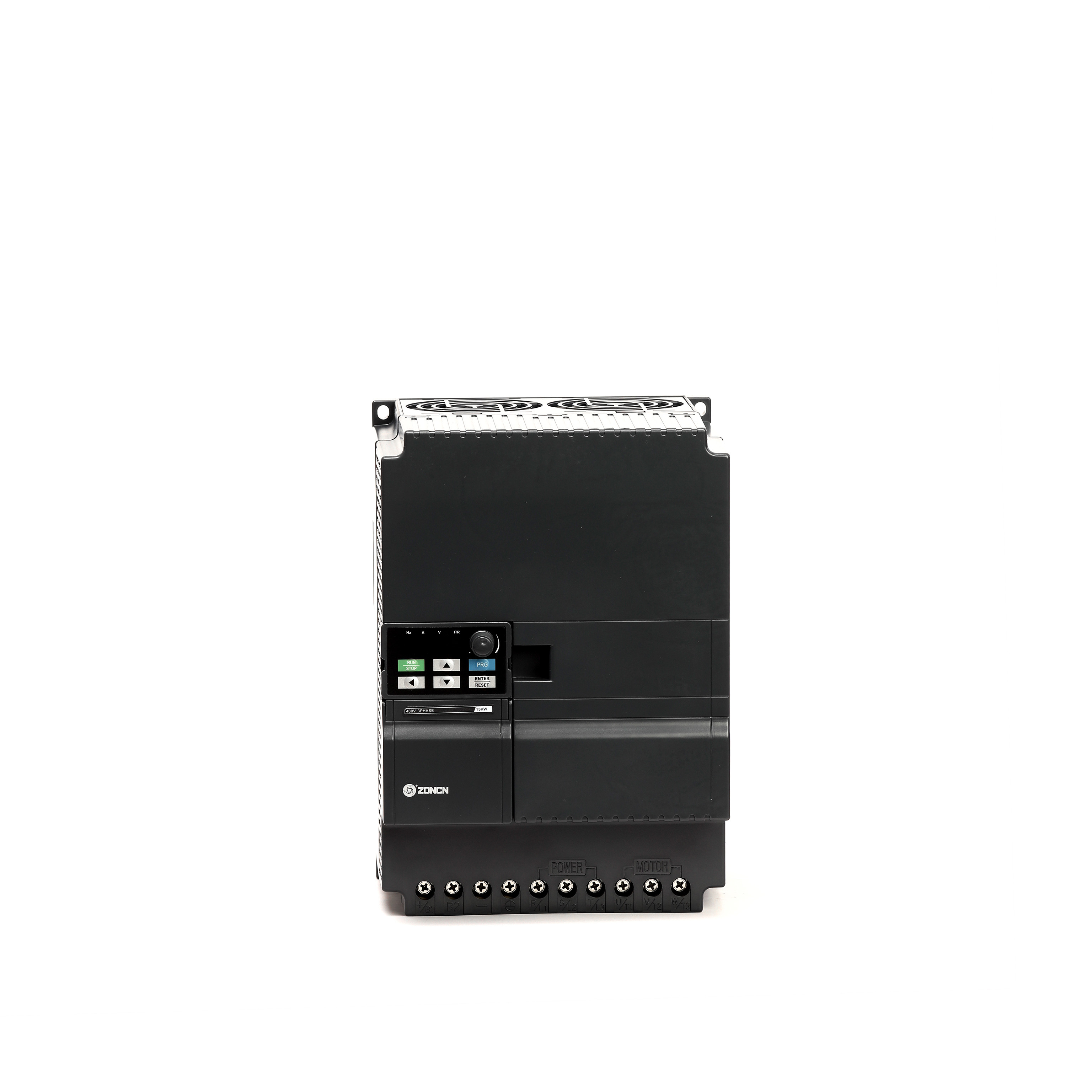

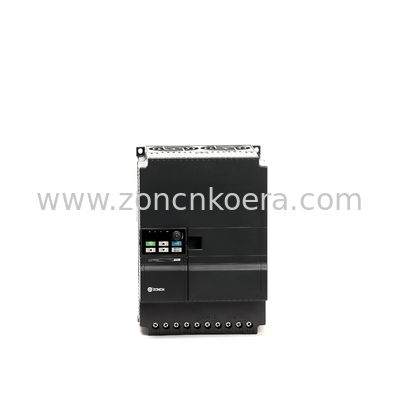

18.5kw 25HP 400v VFD Variable Frequency Drive Ac Inverter Converter Z2400-18.5G/22P-4

18.5kw 25HP 400v VFD Variable Frequency Drive Ac Inverter Converter Z2400-18.5G/22P-4
18.5kw 25HP 400v VFD Variable Frequency Drive Ac Inverter Converter Z2400-18.5G/22P-4 18.5kw 25HP 400v VFD Variable Frequency Drive Ac Inverter Converter Z2400-18.5G/22P-4 18.5kw 25HP 400v VFD Variable Frequency Drive Ac Inverter Converter Z2400-18.5G/22P-4
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: Z2400-18.5G/22P-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Color: Black Color Brand: ZONCN
Apply For: Motor Speed Control High Speed Pulse Output: Optional
EMC Filter: Optional Normally Communication: RS485
Highlight:

25HP Low Voltage Inverter

,

18.5kw Low Voltage Inverter

Z2000 English Catalog.pdf

Low Voltage Inverter 380v 18.5kw 25HP VFD Motor Speed Controller

Basic product introduction:

· Senseless flux vector control(VC)V/F(Voltage/Frequency)control

· Overload capacity is 60s for 150% of the rated current,3s for 180% of the rated current.

· There are ten auxiliary frequency sources.

· It can implement fine tuning of auxiliary frequency and frequency synthesis.

· Support PM motor(Z2000T series)

· Optional built-in EMC filter；Optional EtherCat communication.

· Power range:110v/220v/380v/415v/440v/480v 0.4-450kw





Technical Specification:

Item Z2000 series inverter
Control mode Senseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency  1-16kHz ；The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F cure Line V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG control JOG frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		 lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Auto voltage/Over current
stall control		 The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive





Product wiring diagram:

18.5kw 25HP 400v VFD Variable Frequency Drive Ac Inverter Converter Z2400-18.5G/22P-4 0







Product application:

18.5kw 25HP 400v VFD Variable Frequency Drive Ac Inverter Converter Z2400-18.5G/22P-4 1





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
