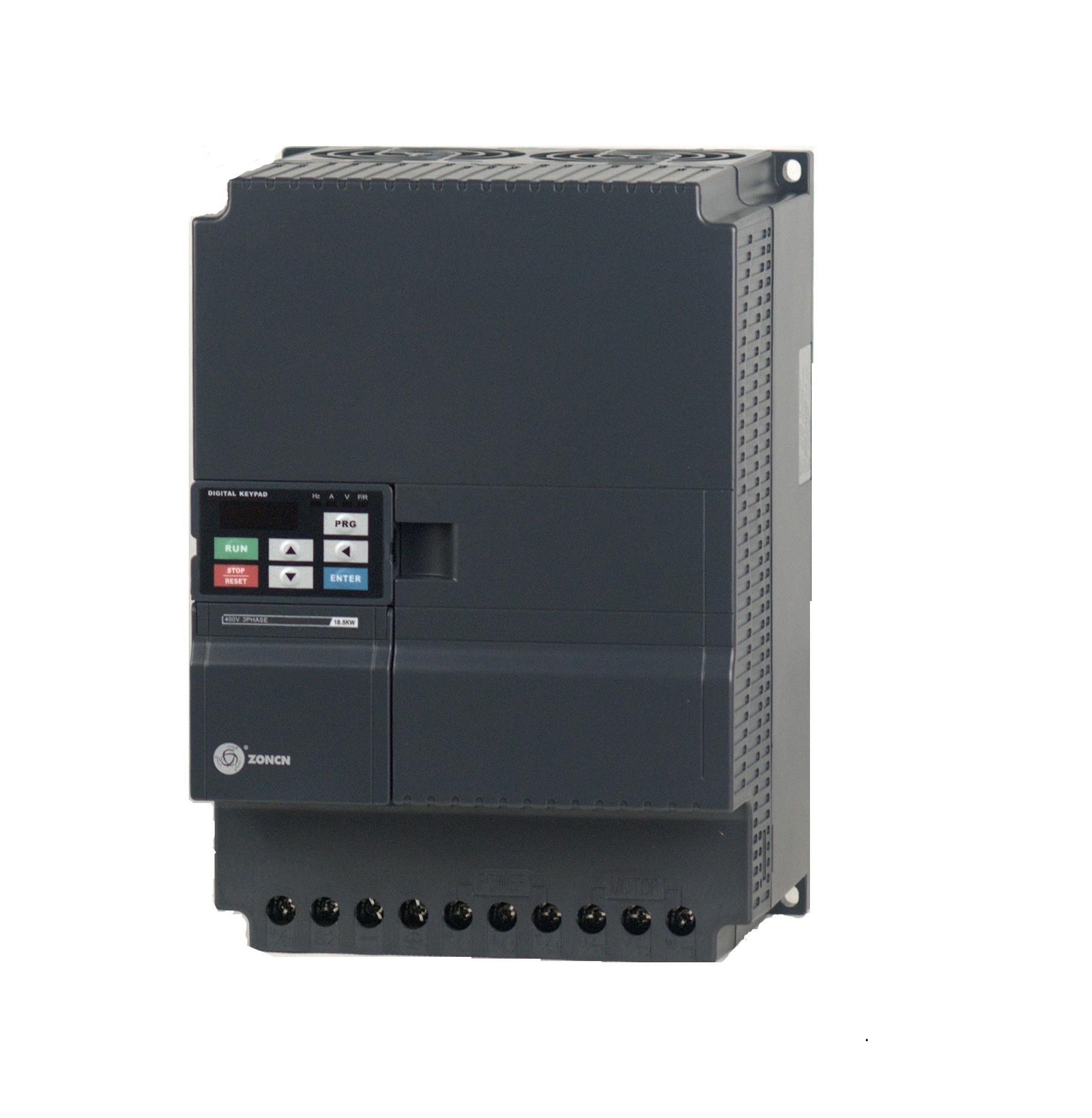

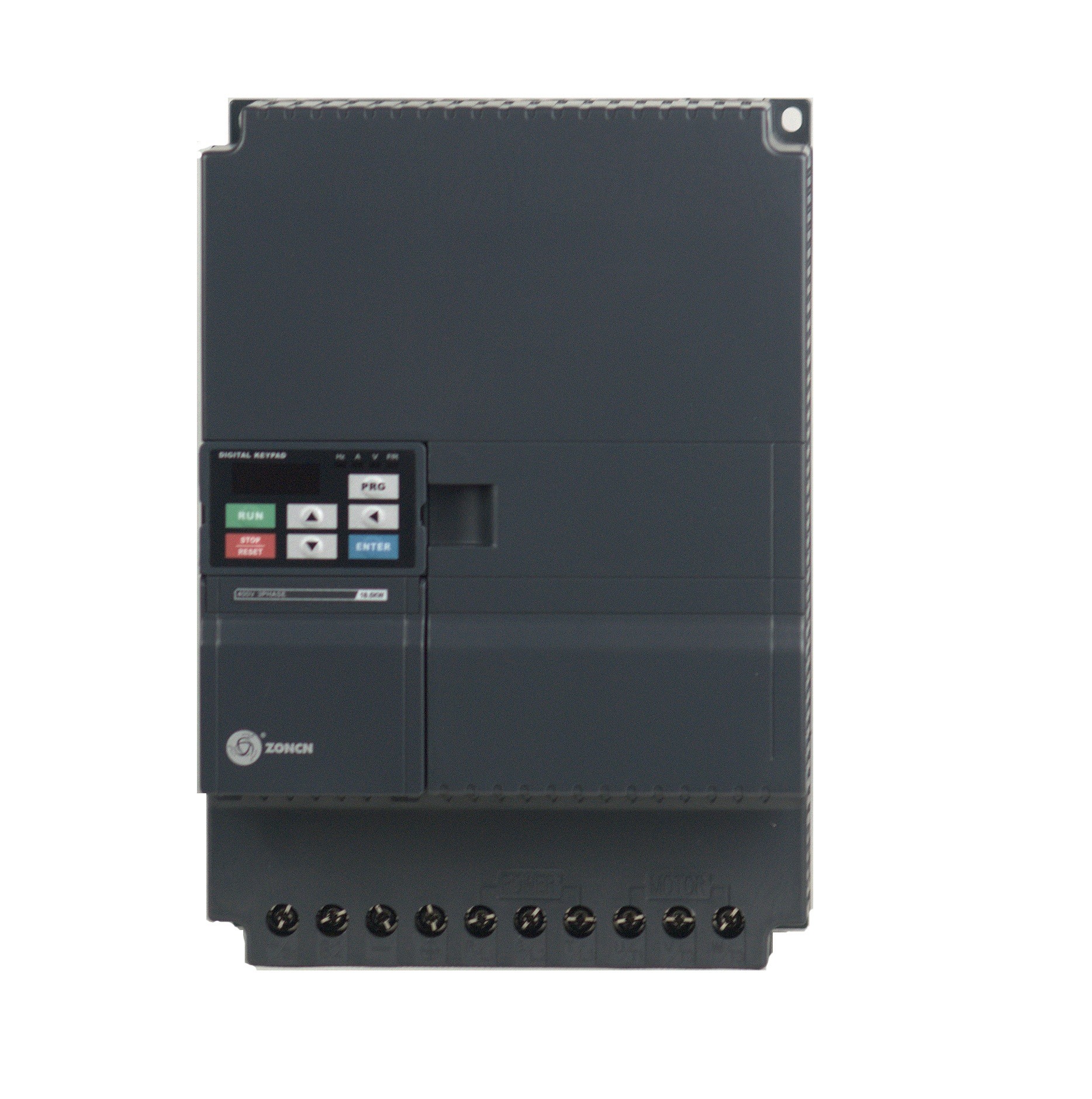

380v 220v Variable Frequency Drive Inverter Controller Converter With CE

380v 220v Variable Frequency Drive Inverter Controller Converter With CE
380v 220v Variable Frequency Drive Inverter Controller Converter With CE 380v 220v Variable Frequency Drive Inverter Controller Converter With CE 380v 220v Variable Frequency Drive Inverter Controller Converter With CE 380v 220v Variable Frequency Drive Inverter Controller Converter With CE 380v 220v Variable Frequency Drive Inverter Controller Converter With CE 380v 220v Variable Frequency Drive Inverter Controller Converter With CE
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: Z2400-22G/30P ； Z2200-22G/30P
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Color: Black Brand: ZONCN
Apply For: General Machinery Power: 22kw
Voltage: 220v Or 380v OEM ODM: Support
Material: Plastic Series: Z2000
Highlight:

220v Variable Frequency Drive Inverter

,

Variable Frequency Drive Inverter Controller

Low Voltage 380v 220v Inverter 22kw Ac Motor Controller Converter With CE

Basic product introduction:

· Senseless flux vector control(VC)V/F(Voltage/Frequency)control

· Overload capacity is 60s for 150% of the rated current,3s for 180% of the rated current.

· There are ten auxiliary frequency sources.

· It can implement fine tuning of auxiliary frequency and frequency synthesis.

· Support PM motor(Z2000T series)

· Optional built-in EMC filter；Optional EtherCat communication.

· Power range:110v/220v/380v/415v/440v/480v 0.4-450kw





Technical Specification:

Item Z2000 series inverter
Control mode Senseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency  1-16kHz ；The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz   Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F cure Line V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG control J0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		 lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID t realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Auto voltage/Over current
stall control		 The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive





Product wiring diagram:

380v 220v Variable Frequency Drive Inverter Controller Converter With CE 0







Product installation:

380v 220v Variable Frequency Drive Inverter Controller Converter With CE 1





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
