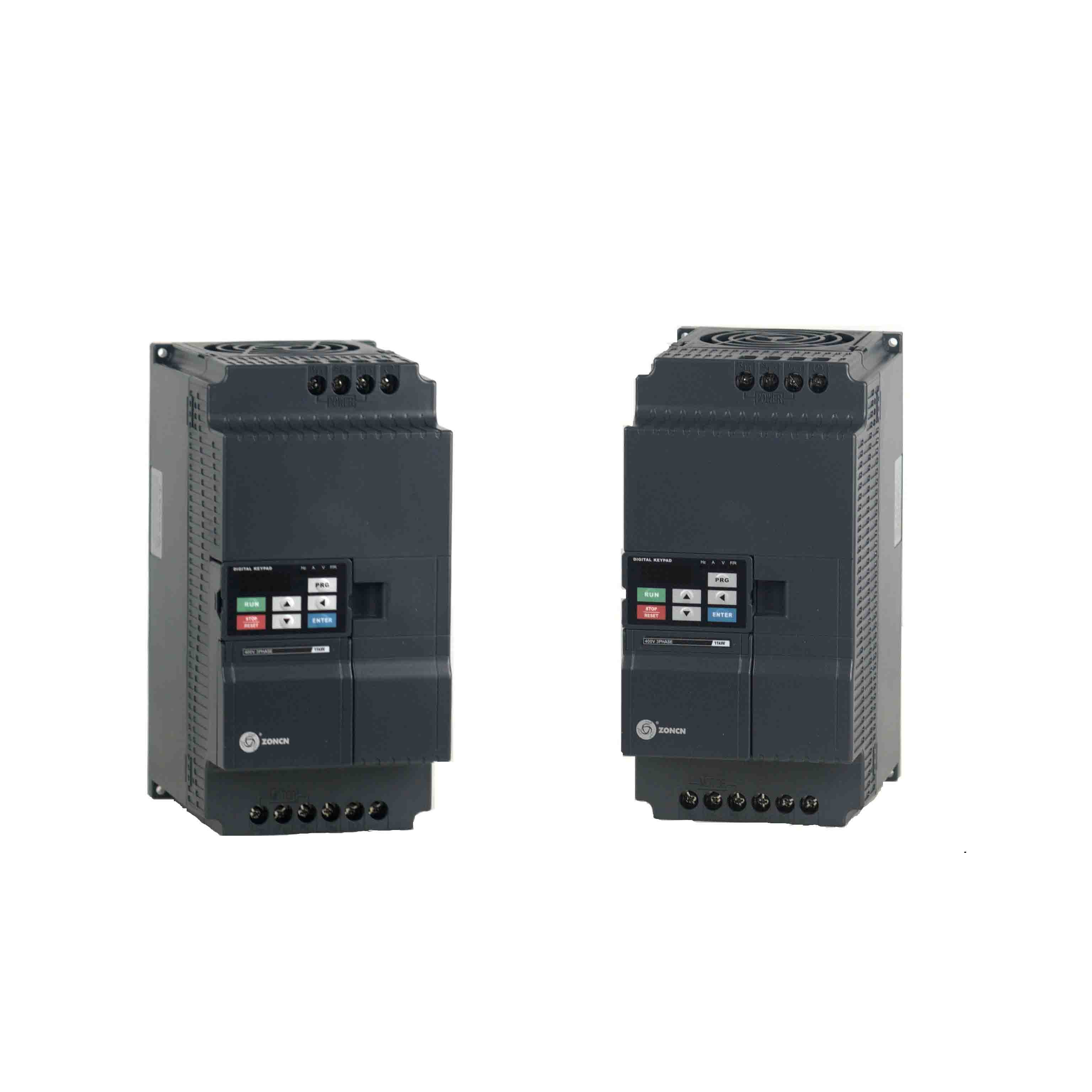

1ph In And 3ph Out 11kw Vector Vfd 220v Input And 380v Output

1ph In And 3ph Out 11kw Vector Vfd 220v Input And 380v Output
1ph In And 3ph Out 11kw Vector Vfd 220v Input And 380v Output 1ph In And 3ph Out 11kw Vector Vfd 220v Input And 380v Output 1ph In And 3ph Out 11kw Vector Vfd 220v Input And 380v Output
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE
Model Number: Z2000-11G-24
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Warranty: 18 Months Voltage: 220v/380v
Phase: 1ph In And 3ph Out Model: Z2000-11G-24
Maximum Frequency: 600Hz Control Mode: Vector Control Inverter
Highlight:

Out 11kw Vector Vfd

,

Vector Vfd 220v Input

Low Voltage 220v Input And 380v Output 11kw Variable Frequency Drives Inverter

ZONCN 220V in and 380v out AC drives VFD

Basic product introduction:

Senseless flux vector control (VC) or V/F (Voltage/Frequency) Control.
Overload capacity is 60s for 150% of the rated current and 3s for 180% of the rated current.
There are ten auxiliary frequency sources.
It can implement fine tuning of auxiliary frequencyand frequency synthesis.
Support PM motor (Z2000 T series).


Technical Specification:

Model Output Power(KW) Capacity(KVA) Rated Input
Current(A)		 Rated Output
Current(A)
220v 3ph in and 380v 3ph out
Z2000-0R4G-24 0.4kw 0.8KVA 3.7A 1.2A
Z2000-0R75G-24 0.75kw 1.6KVA 7.8A 2.5A
Z2000-1R5G-24 1.5kw 2.5KVA 11.8A 3.8A
Z2000-2R2G-24 2.2kw 3.4KVA 15.9A 5.1A
Z2000-3R0G-24 3kw 4.7KVA 22.4A 7.2A
Z2000-3R7G-24 3.7kw 5.9KVA 28.0A 9A
Z2000-5R5G-24 5.5kw 8.6KVA 40.5A 13A
Z2000-7R5G-24 7.5kw 11.2KVA 53A 17A
Z2000-11G-24 11kw 16.5KVA 77.9A 25A



Product configuration:

Close loop vector control No
Built-in braking unit Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control Yes
High speed pulse output Yes
Movable digital keypad Yes
AI 2
AO 1
DI 6
DO Standard 1,optional 2
Relay output Standard 1,over 30kw optional 2
DC braking Yes
Collector 1
24V power supply Below 30kw optional,30kw and above support
EMC filter Optional
0.1S acceleration/deceleration Yes
Simple PLC Yes
All kinds of protection Support
PID Yes
DC choke 30kw—220kw optional,250kw and above all have
DC bus +,- terminals Yes
STO function No
Communication RS485
CAT communication Optional
Certificate KC+CE
Warranty 18 months





Product wiring diagram:

1ph In And 3ph Out 11kw Vector Vfd 220v Input And 380v Output 0



Product applications:

Z2000 series AC frequency inverter is widely used in fans, pumps, compressors, lathes, spindle motors, textile machines, food machines, crushers, packaging machines, printing machines, washing machines, conveyor belts, grinding machines, polishing machines and other equipment, and well received by customers.



Application:

1ph In And 3ph Out 11kw Vector Vfd 220v Input And 380v Output 1



FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.


Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.


Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
