Z2200-3R7G Low Voltage Inverter Frequency Drive Inverter 3.7kw 220v

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE+KC
Model Number:	Z2200-3R7G

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing； 2314.519CM；1.6kg
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Power:	3.7kw	Voltage:	220v
Phase:	1ph In And 3ph Out	Model:	Z2200-3R7G
Maximum Frequency:	0Hz~600Hz	Control Mode:	Vector Control
Highlight:	Z2200-3R7G Low Voltage Inverter , Low Voltage Inverter 3.7kw 220v , Frequency Drive Inverter 3.7kw

Vfd Variable Frequency Inverter 3.7kw 220v Low Voltage Single Phase Z2200-3R7G

AC Variable Frequency Inverter Z2000 series

Technical Specification:

Model	Rated output power	Rated input current	Rated output current	Motor equipped
1PH/3PH AC 220V±15%
Z2200-0R4G	0.4KW	5.4A	2.5A	0.4KW
Z2200-0R75G	0.75KW	7.2A	5A	0.75KW
Z2200-1R5G	1.5KW	10A	7A	1.5KW
Z2200-2R2G	2.2KW	16A	11A	2.2KW
Z2200-3R7G	3.7KW	23A	16.5A	3.7KW
Z2200-5R5G	5.5KW	21A	25A	5.5KW
Z2200-7R5G	7.5KW	31A	32A	7.5KW

Product configuration:

Close loop vector control	No
Built-in braking unit	Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control	Yes
High speed pulse output	Yes
Movable digital keypad	Yes
AI	2
AO	1
DI	6
DO	Standard 1,optional 2
Relay output	Standard 1,over 30kw optional 2
DC braking	Yes
Collector	1
24V power supply	Below 30kw optional,30kw and above support
EMC filter	Optional
0.1S acceleration/deceleration	Yes
Simple PLC	Yes
All kinds of protection	Support
PID	Yes
DC choke	30kw—220kw optional,250kw and above all have
DC bus +,- terminals	Yes
STO function	No
Communication	RS485
EtheCAT communication	Optional
Certificate	KC+CE
Warranty	18 months

Product introduction:

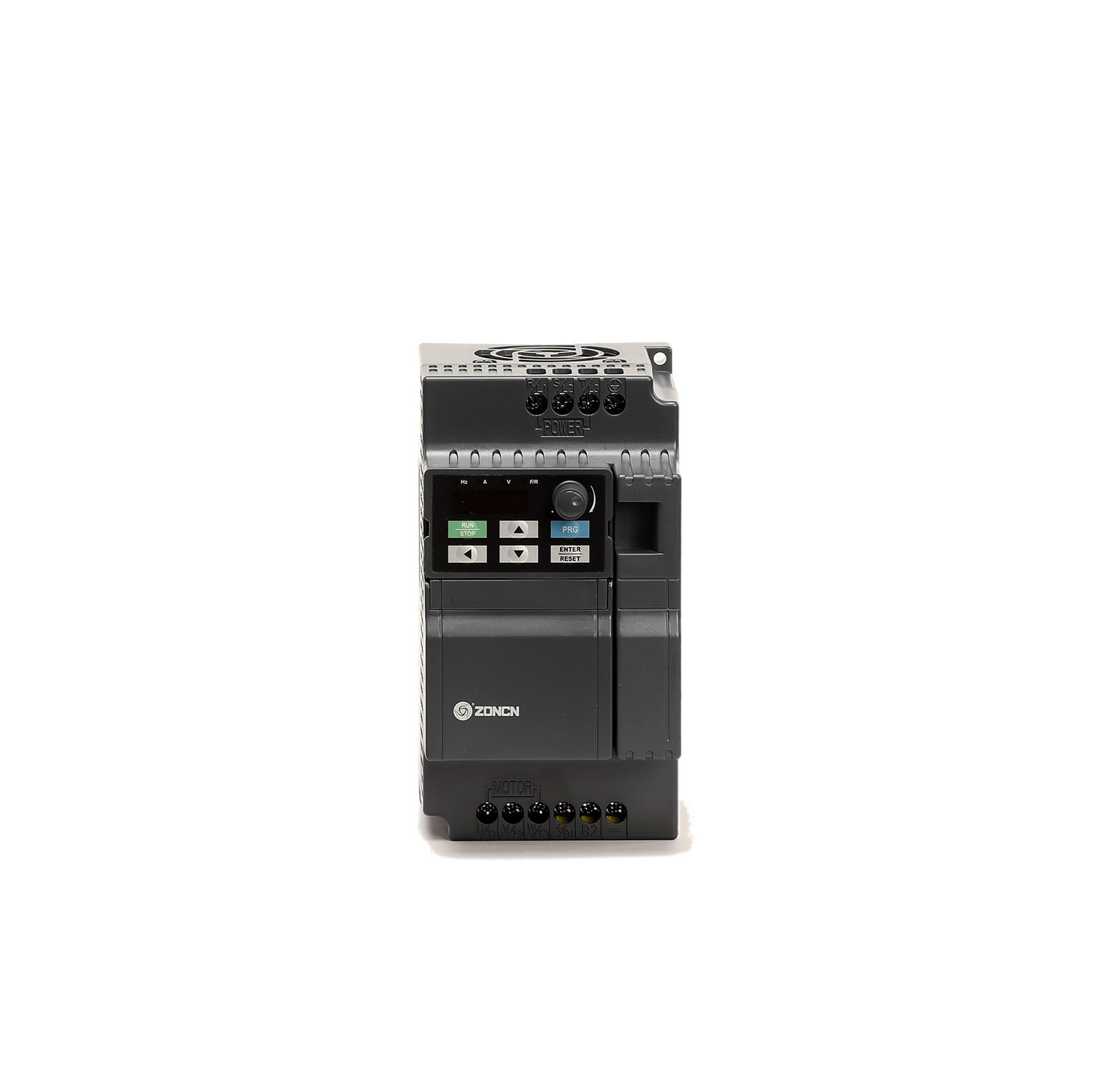

Z2200-3R7G Low Voltage Inverter Frequency Drive Inverter 3.7kw 220v 0

Our warehouse:

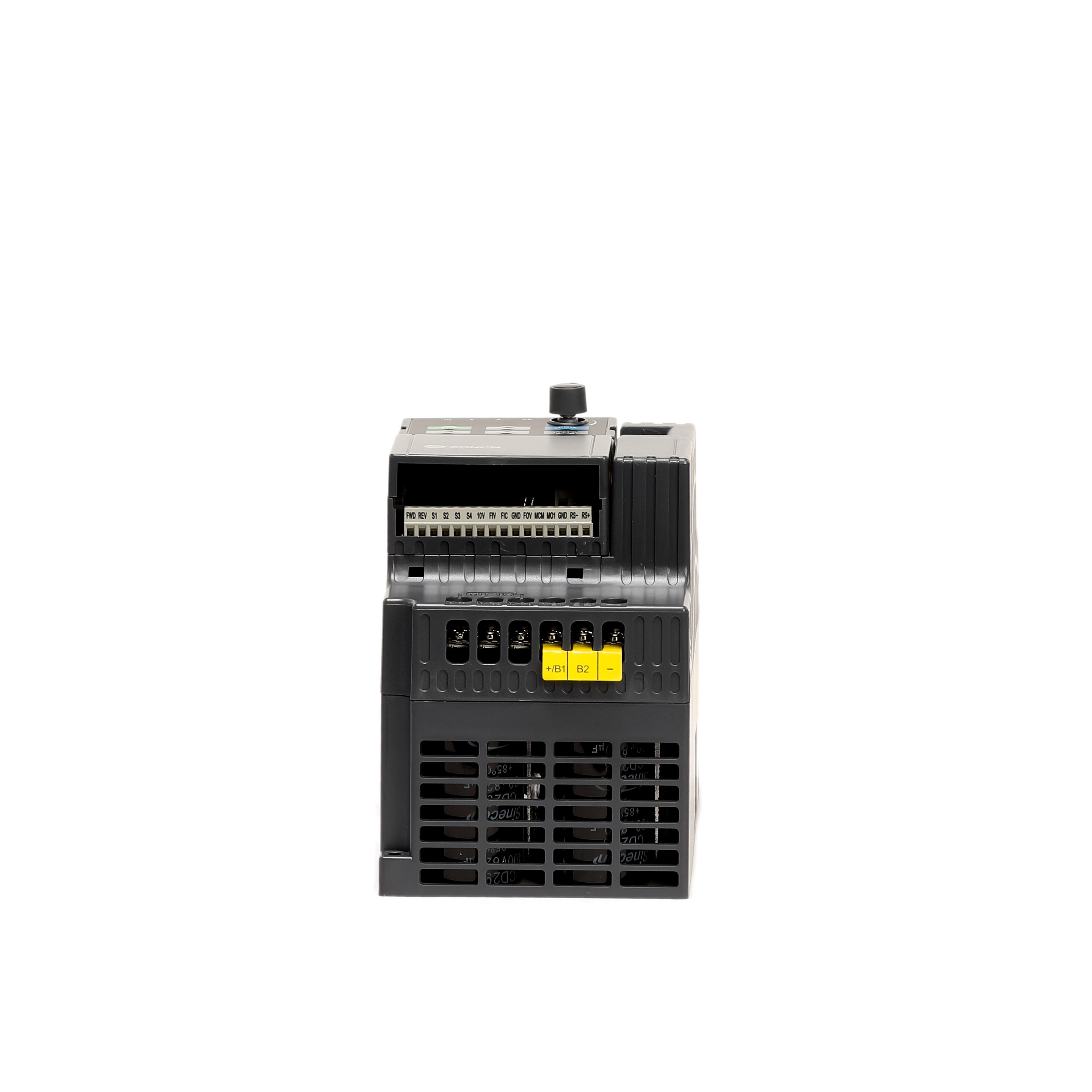

Z2200-3R7G Low Voltage Inverter Frequency Drive Inverter 3.7kw 220v 1

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
