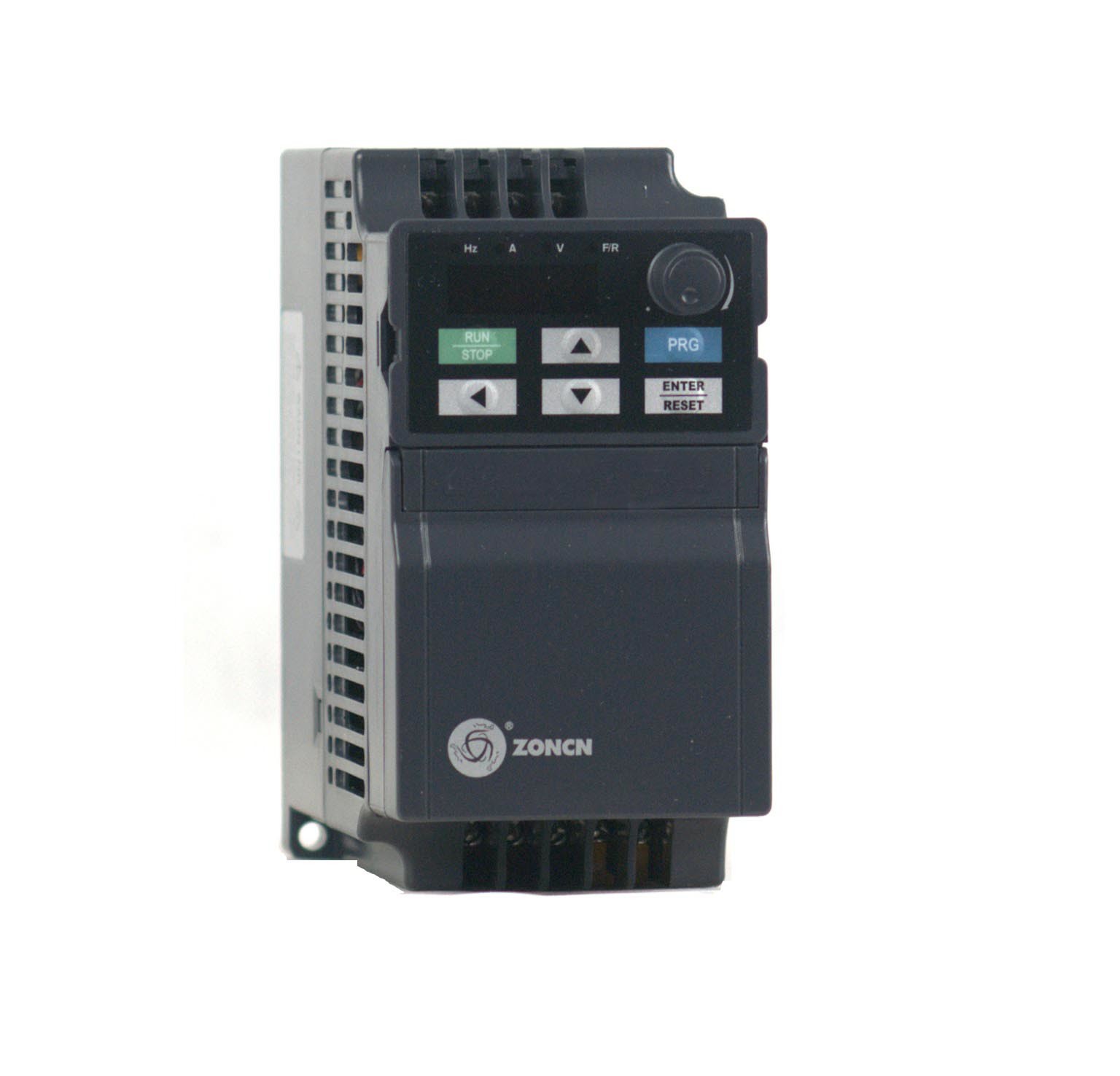

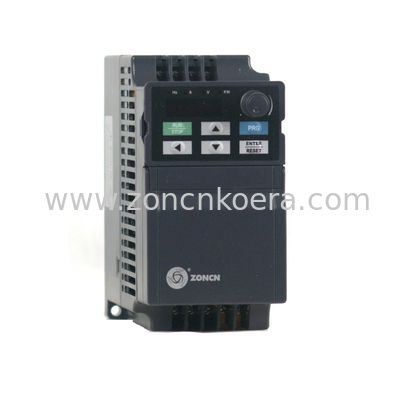

PM Motor Variable Frequency Inverter CE KC Certificated

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE+KC
Model Number:	Z2200-1R5G

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing； 191319CM；1.1kg
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Warranty:	18 Months	Voltage:	220v
Phase:	1ph In And 3ph Out	Model:	Z2200-1R5G
Maximum Frequency:	600Hz	Control Mode:	Vector Control
Highlight:	PM Motor Variable Frequency Inverter , Variable Frequency Inverter CE

Low Voltage Variador De Frecuencia 220v 1.5kw Vfd Inverter Z2200-1R5G

Basic product introduction:

Senseless flux vector control (VC) or V/F (Voltage/Frequency) Control.

Overload capacity is 60s for 150% of the rated current and 3s for 180% of the rated current.

There are ten auxiliary frequency sources.

It can implement fine tuning of auxiliary frequencyand frequency synthesis.

Support PM motor (Z2000 T series).

Technical Specification:

Model	Rated output power	Rated input current	Rated output current	Motor equipped
1PH/3PH AC 220V±15%
Z2200-0R4G	0.4KW	5.4A	2.5A	0.4KW
Z2200-0R75G	0.75KW	7.2A	5A	0.75KW
Z2200-1R5G	1.5KW	10A	7A	1.5KW
Z2200-2R2G	2.2KW	16A	11A	2.2KW
Z2200-3R7G	3.7KW	23A	16.5A	3.7KW
Z2200-5R5G	5.5KW	21A	25A	5.5KW
Z2200-7R5G	7.5KW	31A	32A	7.5KW

Product configuration:

Close loop vector control	No
Built-in braking unit	Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control	Yes
High speed pulse output	Yes
Movable digital keypad	Yes
AI	2
AO	1
DI	6
DO	Standard 1,optional 2
Relay output	Standard 1,over 30kw optional 2
DC braking	Yes
Collector	1
24V power supply	Below 30kw optional,30kw and above support
EMC filter	Optional
0.1S acceleration/deceleration	Yes
Simple PLC	Yes
All kinds of protection	Support
PID	Yes
DC choke	30kw—220kw optional,250kw and above all have
DC bus +,- terminals	Yes
STO function	No
Communication	RS485
EtheCAT communication	Optional
Certificate	KC+CE
Warranty	18 months

Product wiring diagram:

PM Motor Variable Frequency Inverter CE KC Certificated 0

Product applications:

Z2000 series AC frequency inverter is widely used in fans, pumps, compressors, lathes, spindle motors, textile machines, food machines, crushers, packaging machines, printing machines, washing machines, conveyor belts, grinding machines, polishing machines and other equipment, and well received by customers.

Application:

PM Motor Variable Frequency Inverter CE KC Certificated 1

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
