Variable Speed Drives Variable Frequency Inverter 380V 3.7KW 5HP

Low Voltage 380V 3.7KW 5HP Frequency Inverter 50Hz To 60Hz AC Dirve

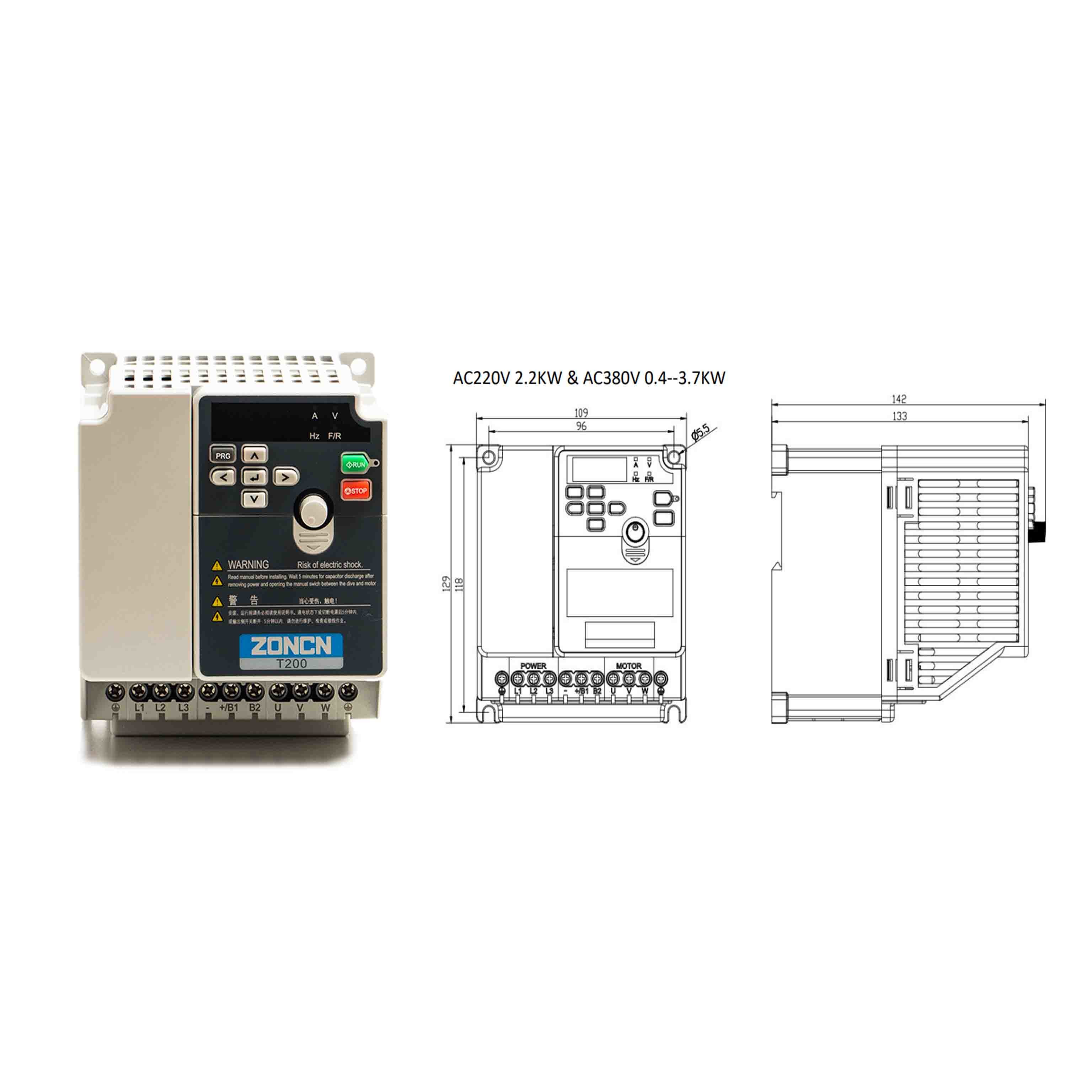

T200 high performance variable speed drives





Quick details of T200 series inverter:

The T200 series vfd offers a compact design AC drive that combines easy operation with high-efficiency control for AC induction and PMS motor. The robust compact designed, various controls mode, support EtherCAT Modbus, Profibus-DP communication, built-in EMC filter, Extension PG Cards,24VDC power resource, STO function.





Technical characteristic:

Maximum frequency:Vector control:0～600Hz；V/F control:0-3200Hz

Control mode:V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)

Carrier frequency:0.5kHz～16kHz；The carrier frequency can be automatically adjusted based on the load feature

Input frequency resolution:Digital setting:0.01Hz；Analog setting: maximum frequency×0.025%

Startup torque:G Type:0.5Hz/150%(SFVC)；P Type:0.5Hz/100%

Speed range:1:100(No PG)

Speed stability accuracy:±0.5%(No PG)

Torque control accuracy:±5%(FVC)

Overload capacity:G type: 60s for 150% of the rated current, 3s for 180% of the rated current；P type: 60s for 120% of the rated current, 3s for 150% of the rated current











T200-3R7G/5R5P-4 current parameter:

Model	Input voltage	Rated output power(kw)	Rated input current(A)	Rated output current(A)	Motor power(kw)
T200-3R7G/5R5P-4	380V±15%	3.7/5.5	10/15	9/13	3.7





T200 series product circuit diagram:





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.



Q5:Do you have service outlets around the world?

A: Yes, we have agents in Africa, Asia, Europe and South America.
