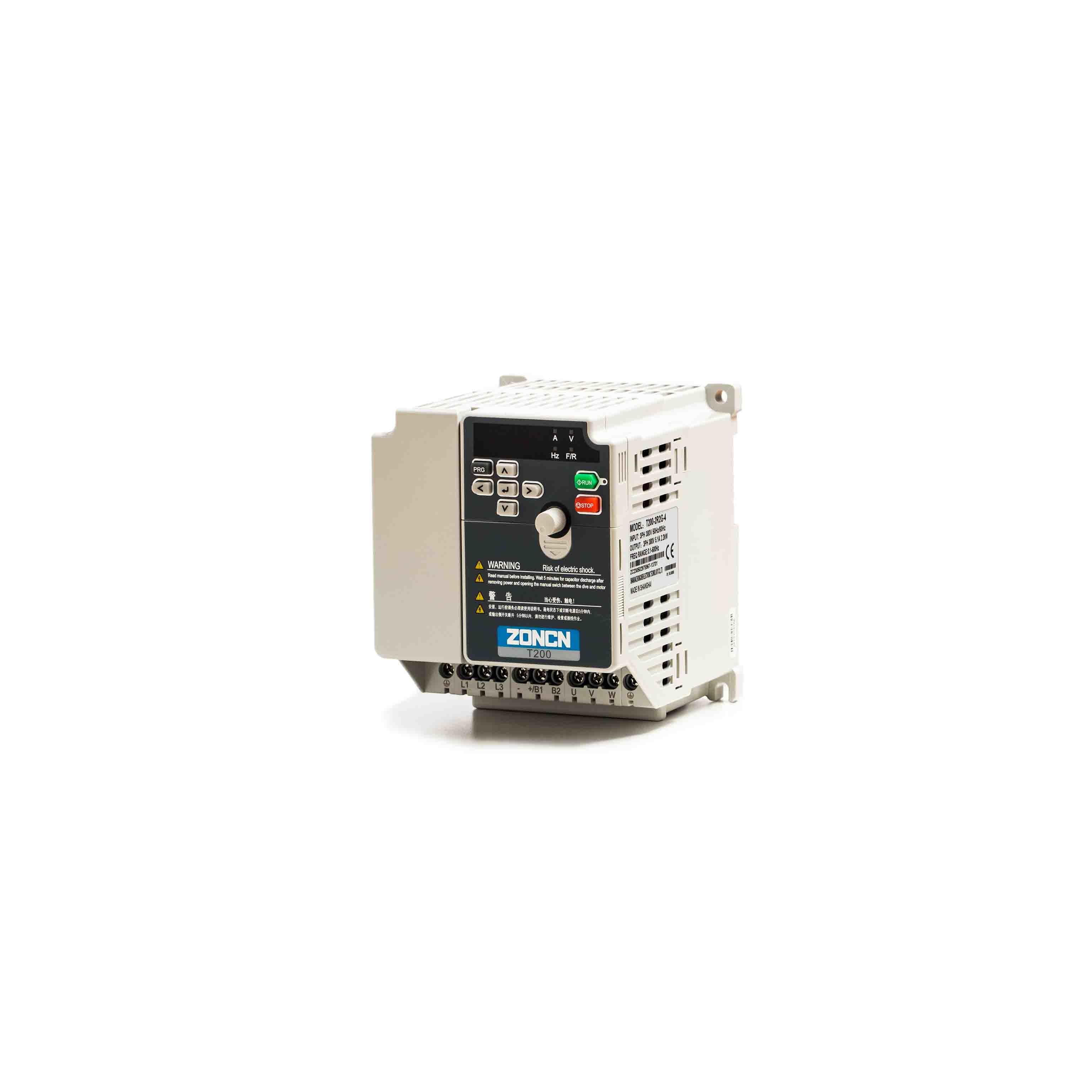

Ac Frequency Inverter 380v 2.2kW ZONCN T200 series drives vfd

Ac Frequency Inverter 380v 2.2kW ZONCN T200 series drives vfd
Ac Frequency Inverter 380v 2.2kW ZONCN T200 series drives vfd Ac Frequency Inverter 380v 2.2kW ZONCN T200 series drives vfd Ac Frequency Inverter 380v 2.2kW ZONCN T200 series drives vfd
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE
Model Number: T200-2R2G-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Voltage: 380v Warranty: 18 Months
Protection: IP20 Protection Frequency Range: 600HZ
Build In EMC Filter: Yes STO: Yes
24V DC: Yes DIN Rail Mount: Yes
Highlight:

Low Voltage Inverter IP20 Protection

,

24V DC Low Voltage Inverter

,

inverter low voltage RS485 Ethercat

Low Voltage AC Drive inverter vfd 380V 50/60Hz T200-2R2G-4 2.2kw

Micro AC VFD Advanced Inverter Motor Drive





Basic product introduction:

· Cost effective；Micro compact design.

· Build-in EMC filter,24v DC power resource

· RS485,Ethercat,Profibus DP,CAN is optional

· VF control；Sensorless flux vector control

· Digital setting:0.01Hz；Analog setting: maximum frequency×0.025%





Technical characteristic:

Maximum frequency Vector control:0～600Hz；V/F control:0-3200Hz
Control mode V/F control or Senseless flux vector control(SFVC) or Closed loop vector control (CLVC)
Carrier frequency

0.5kHz～16kHz,the carrier frequency can be automatically adjusted based on the load feature

Input frequency resolution

 Digital setting:0.01Hz,Analog setting: maximum frequency×0.025%
Startup torque G Type:0.5Hz/150%(SFVC) and P Type:0.5Hz/100%
Speed range 1:100-(No PG)
Speed stability accuracy ±0.5%-(No PG)
Torque control accuracy ±5%-(FVC)
Overload capacity

G type: 60s for 150% of the rated current, 3s for 180% of the rated current

P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost , Customized boost 0.1%-30.0%
V/F curve

Straight-line V/F curve,Multi-point V/F curve；

N-power V/F curve (1.2-power, 1.4-power, 1.6- power and1.8-power, square)
V/F separation Two types: complete separation and half separation
Ramp mode Straight-line ramp,S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control
Jog frequency range:0.00Hz~50.00Hz.
Jog acceleration/deceleration time0.0s~6500.0s

Onboard multiple preset speeds

 It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current
Rapid current limit It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time





T200-2R2G-4 current parameter:

Model Input voltage Rated output power(kw) Rated input current(A) Rated output current(A) Motor power(kw)
T200-2R2G-4 380V±15% 2.2 5.8 5.0 2.2





T200 series product circuit diagram:

Ac Frequency Inverter 380v 2.2kW ZONCN T200 series drives vfd 0





Product front structure:

Ac Frequency Inverter 380v 2.2kW ZONCN T200 series drives vfd 1





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.



Q5:How to choose suitable VFD for my machine?

Please send us your machine details and application, we will provide vou most suitable VFD.
