2200w low Voltage Inverter Vfd Single Phase To Three Phase 220v

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE
Model Number:	T200-2R2G-2

Minimum Order Quantity:	1 unit
Packaging Details:	Carton
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Material:	Plastic	Voltage:	220v±15%
Protection:	IP20 Level	Frequency Range:	Maximum 600Hz
Rated Power:	2.2kw	Rated Input Current（A）:	16
Rated Output Current（A）:	11
Highlight:	2200w Low Voltage Inverter , Low Voltage Inverter Vfd Single Phase , Vfd Single Phase To Three Phase 220v

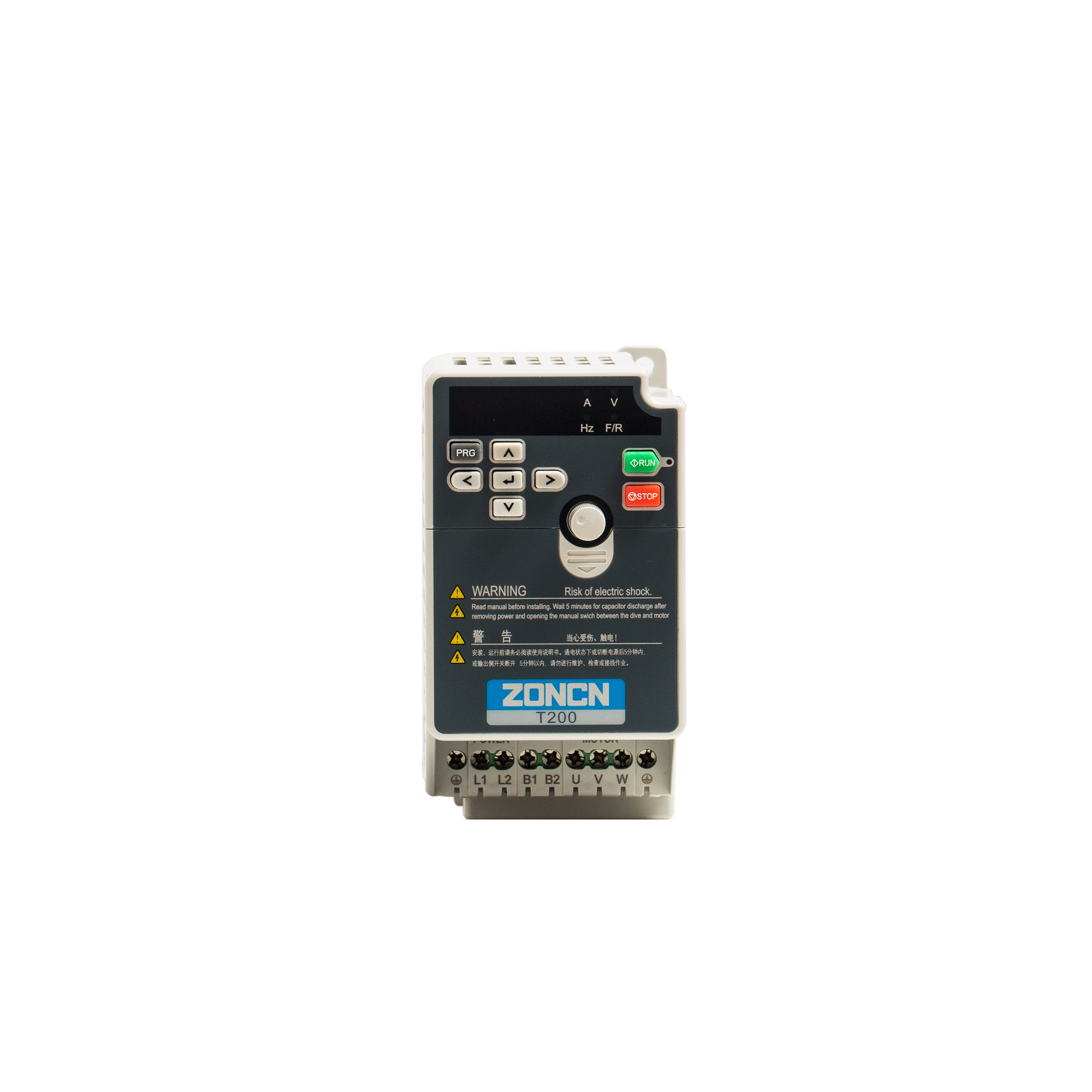

Low Voltage Inverter 220v 2.2kw Vfd Single Phase To Three Phase Motor Drives

T200 high performance AC drive Inverter

Basic product introduction:

· Cost effective；Micro＆Compact design.

· Build-in EMC filter , 24v DC power supply

· RS485,Ethercat,Profibus DP,CAN is optional for customer

· Automatic voltage regulation

· Digital I/O；Integrated safety-safe torque off feature

Technical characteristic:

Maximum frequency	Vector control:0～600Hz；V/F control:0-3200Hz
Control mode	V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency	0.5kHz～16kHz；The carrier frequency can be automatically adjusted based on the load feature
Input frequency resolution	Digital setting:0.01Hz；Analog setting: maximum frequency×0.025%
Startup torque	G Type:0.5Hz/150%(SFVC)；P Type:0.5Hz/100%
Speed range	1:100(No PG)
Speed stability accuracy	±0.5%(No PG)
Torque control accuracy	±5%(FVC)
Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current；P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost	Fixed boost and customized boost 0.1%-30.0%
V/F curve	Straight-line V/F curve；Multi-point V/F curve； N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation	Two types: complete separation and half separation
Ramp mode	Straight-line ramp；S-curve ramp Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking	DC braking frequency: 0.00 Hz to maximum frequency Braking time: 0.0-100.0s; Braking action current value: 0.0%–100.0%
JOG control	Jog frequency range:0.00Hz~50.00Hz. Jog acceleration/deceleration time0.0s~6500.0s
Onboard multiple preset speeds	It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID	It realizes process-controlled closed loop control system easily
Input terminals	5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input; 1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
Output terminals	1 digital output terminal;1 relay output terminal 1 analog output terminal : that supports 0–20 mA current output or 0–10 V voltage output
Protection mode	Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Running command channel	Given by the panel, control terminals, Serial communication port, can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. can be switched by many ways

T200-2R2G-2 current parameter:

Model	Input voltage	Rated output power(kw)	Rated input current(A)	Rated output current(A)	Motor power(kw)
T200-2R2G-2	220V±15%	2.2	16	11	2.2

T200 series product circuit diagram:

2200w low Voltage Inverter Vfd Single Phase To Three Phase 220v 0

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
