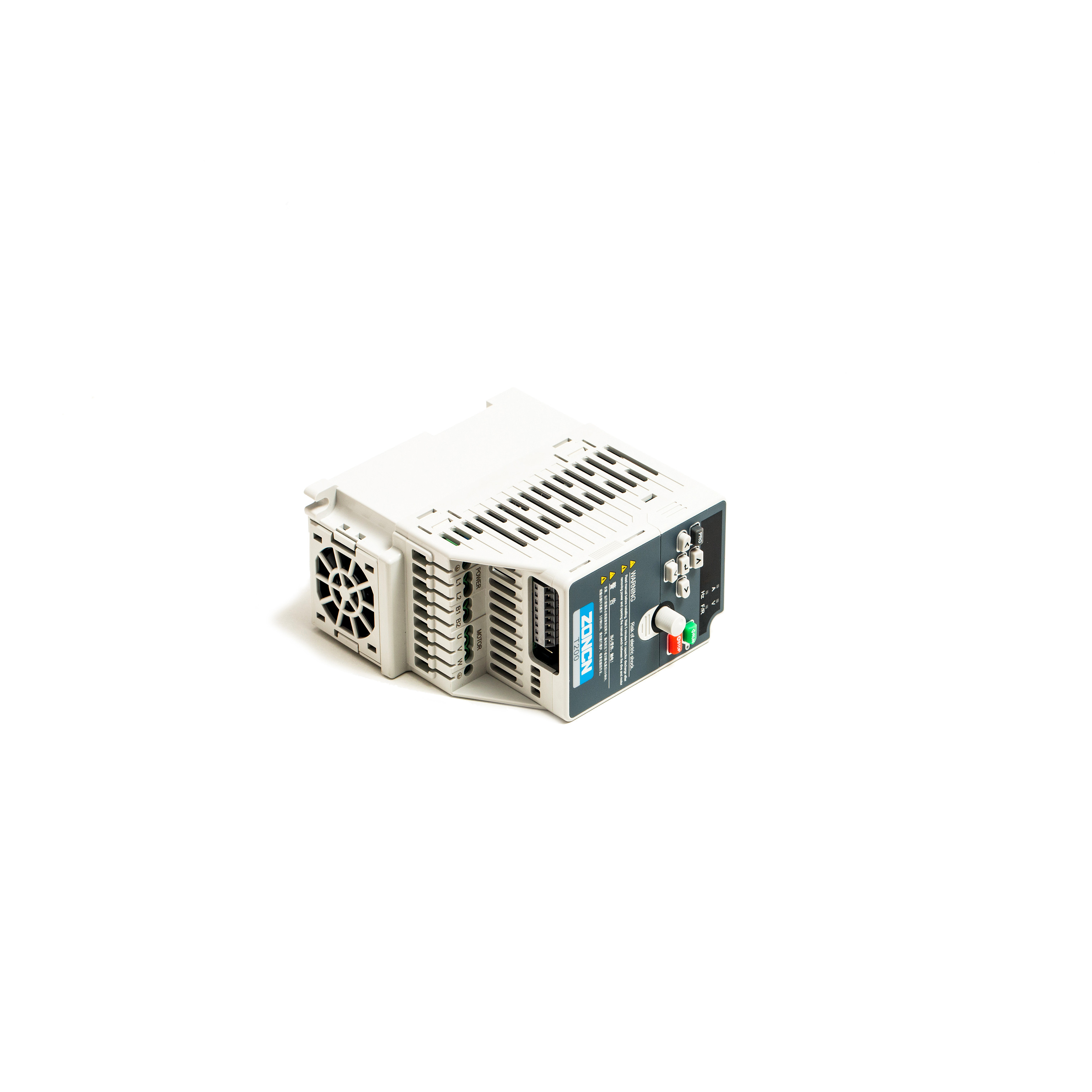

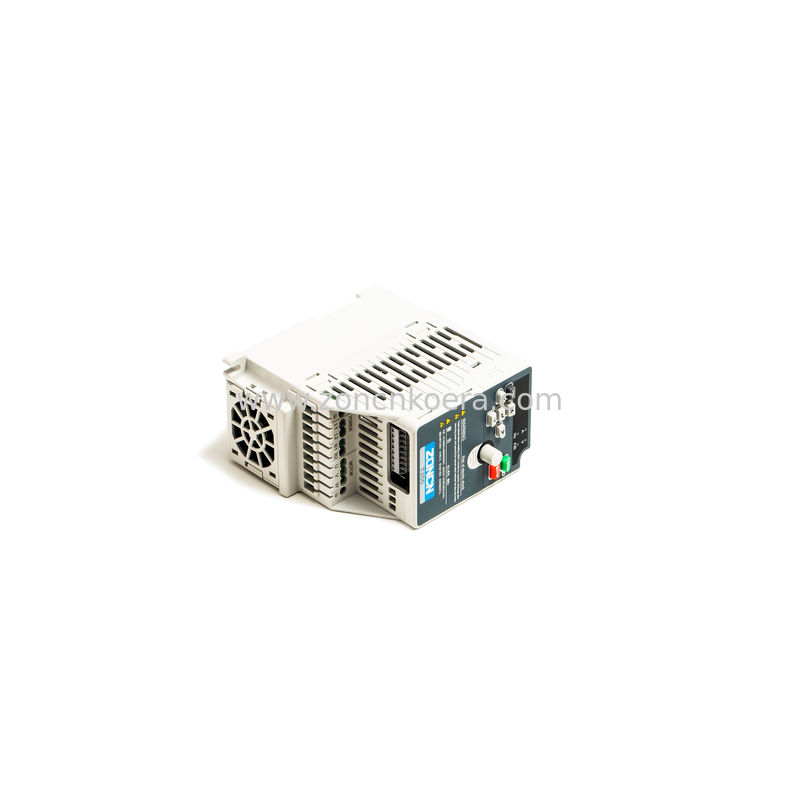

T200 Series 3HP 380V Frequency Inverters Vfd Drives With STO Functions

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE
Model Number:	T200-2R2G-4

Minimum Order Quantity:	1 unit
Packaging Details:	Carton
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Material:	Plastic	Voltage:	380v±15%
Protection:	IP20	Frequency Range:	0-600Hz
Build In EMC Filter:	Support	STO Fuction:	Support
24DC:	Support	DIN Rail Mount:	Support
Power:	3HP
Highlight:	Low Voltage Inverter With STO Function , IP20 Low Voltage Inverter

Low Voltage 380v 2.2kw T200-2R2G-4 VFD Inverter Motor Drive With STO Function

Micro AC Drive Advanced Frequency Inverter

Basic product introduction:

· Cost effective；Micro compact design.

· Build-in EMC filter,24v DC power resource

· RS485,Ethercat,Profibus DP,CAN is optional

· VF control；Sensorless flux vector control

· External keypad interface RJ45

Technical characteristic:

Maximum frequency	Vector control:0～600Hz；V/F control:0-3200Hz
Control mode	V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency	0.5kHz～16kHz；The carrier frequency can be automatically adjusted based on the load feature
Input frequency resolution	Digital setting:0.01Hz；Analog setting: maximum frequency×0.025%
Startup torque	G Type:0.5Hz/150%(SFVC)；P Type:0.5Hz/100%
Speed range	1:100(No PG)
Speed stability accuracy	±0.5%(No PG)
Torque control accuracy	±5%(FVC)
Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current；P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost	Fixed boost；Customized boost 0.1%-30.0%
V/F curve	Straight-line V/F curve；Multi-point V/F curve； N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation	Two types: complete separation; half separation
Ramp mode	Straight-line ramp；S-curve ramp Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking	DC braking frequency: 0.00 Hz to maximum frequency Braking time: 0.0-100.0s Braking action current value: 0.0%–100.0%
JOG control	Jog frequency range:0.00Hz~50.00Hz. Jog acceleration/deceleration time0.0s~6500.0s
Onboard multiple preset speeds	It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID	It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR)	It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current
Rapid current limit	It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control	It can limit the torque automatically and prevent frequent over-current tripping during the running process
Instantaneous stop doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time

T200-2R2G-4 current parameter:

Model	Input voltage	Rated output power(kw)	Rated input current(A)	Rated output current(A)	Motor power(kw)
T200-2R2G-4	380V±15%	2.2	5.8	5.0	2.2

T200 series product circuit diagram:

T200 Series 3HP 380V Frequency Inverters Vfd Drives With STO Functions 0

Product front structure:

T200 Series 3HP 380V Frequency Inverters Vfd Drives With STO Functions 1

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
