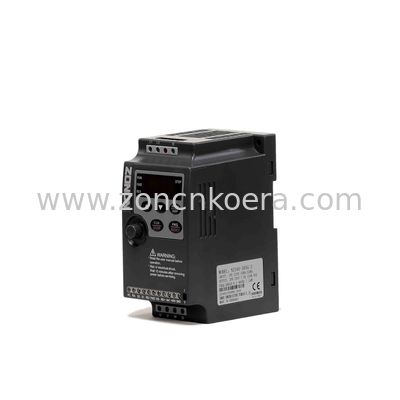

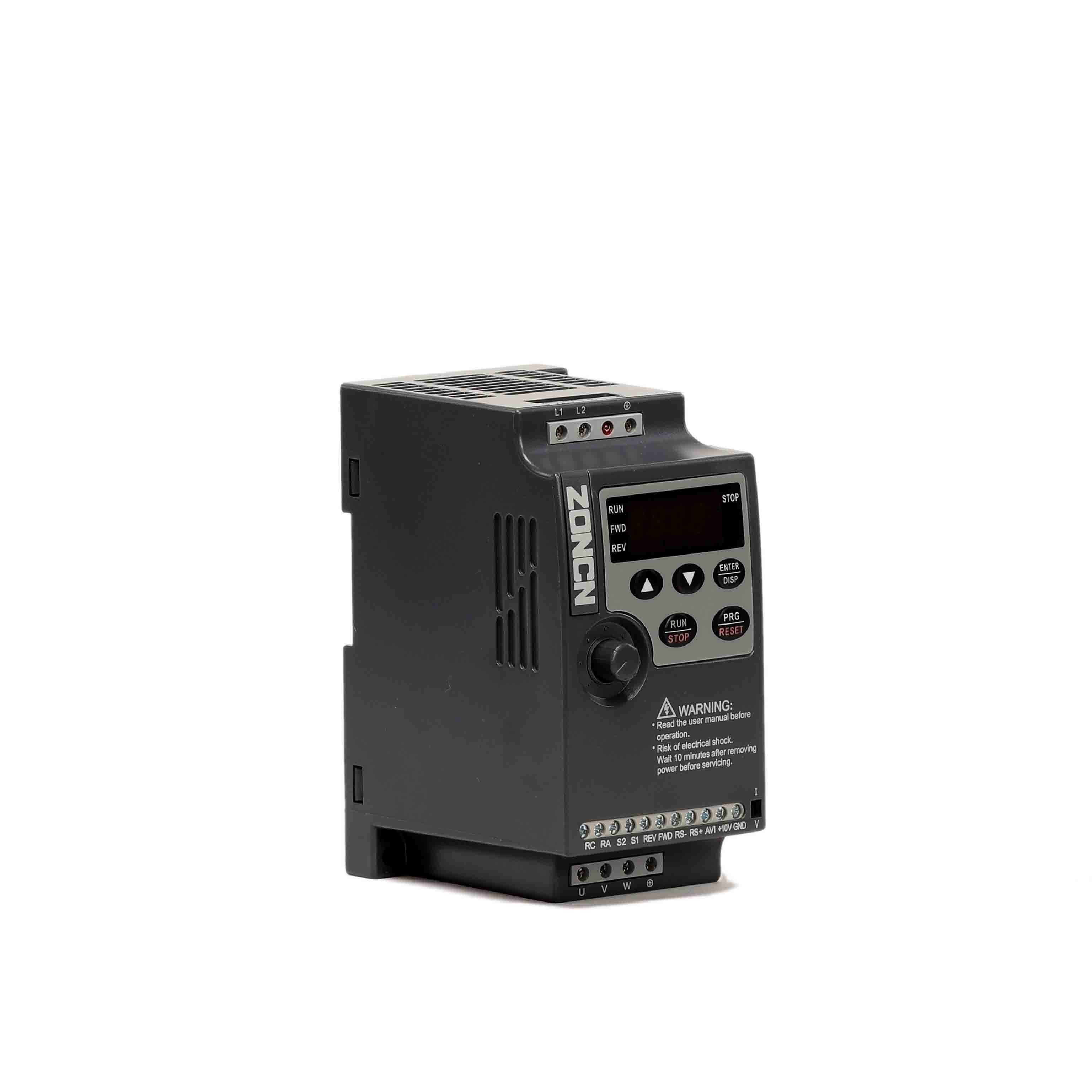

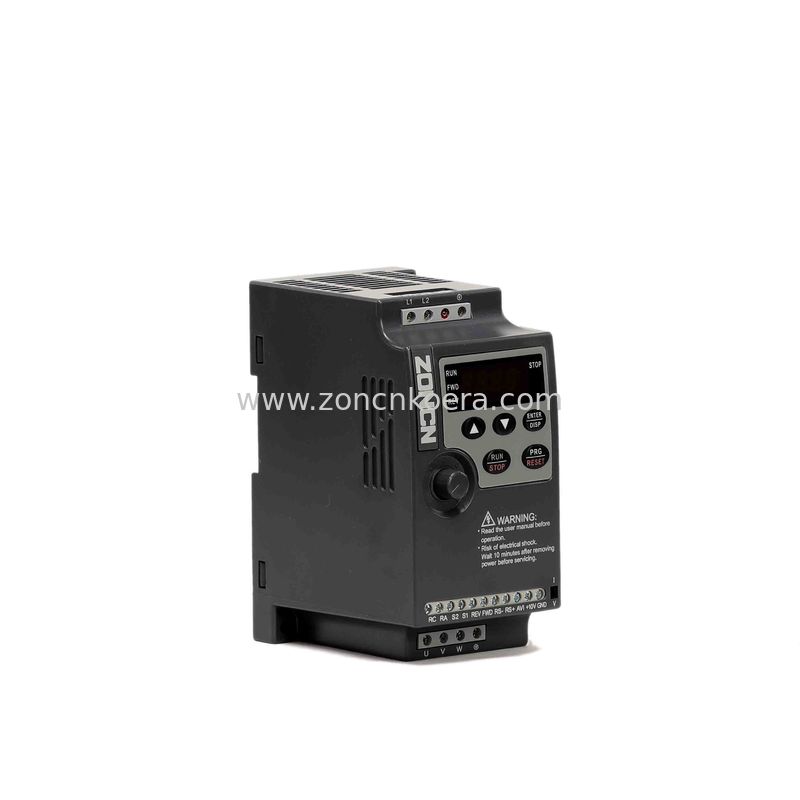

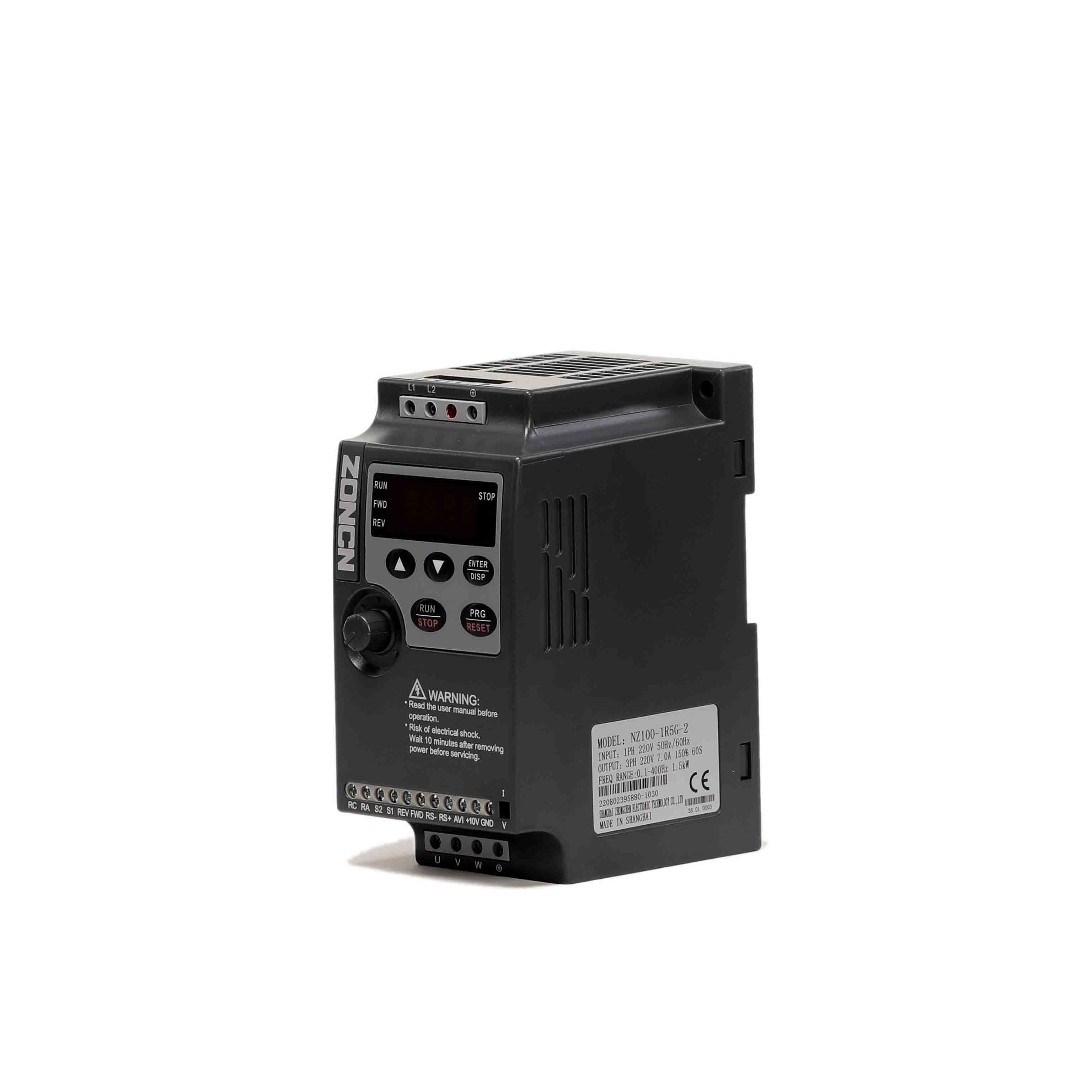

NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485

NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485
NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485 NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485 NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485 NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485 NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485 NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-1R5G-2
Minimum Order Quantity: 1 unit
Packaging Details: Carton； 15.5*10*13.5CM；0.8KG
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Control Mode: VF Control Movable Digital Keypad: Externalizable
Communication: RS485 Material: Plastic
Protection Class: IP20 PID Control: Built-in PID Control
Frequency Range: 0.1-400Hz Warranty: 18 Months
Highlight:

Modbus Variable Frequency Drive Inverter

,

RS485 Variable Frequency Drive Inverter

AC Drives Inverter 1.5kw 220v Mini Simple Vfd Vf Control NZ100 Variador De Frecuencia



NZ100 series vfd inverter V/F control AC drives



Basic product introduction:

· Compact size and low cost desgin

· Terminals uncovered,easy for wiring

· DIN-rail mounting(below 5.5KW)

· Modbus via RS485

· Maintenance-free

· Support MODBUS ASCII





Technical Specific:

Items NZ100 series inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20





Product wiring diagram:

NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485 0





Product applications:

The NZ100 series is economical and durable.It is widely used in food machines, conveyor belts, sealing machines, small packaging machines and other small equipment.





Installation site:

NZ100 Variable Frequency Drive Inverter AC 1.5kw 220v Modbus via RS485 1





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
