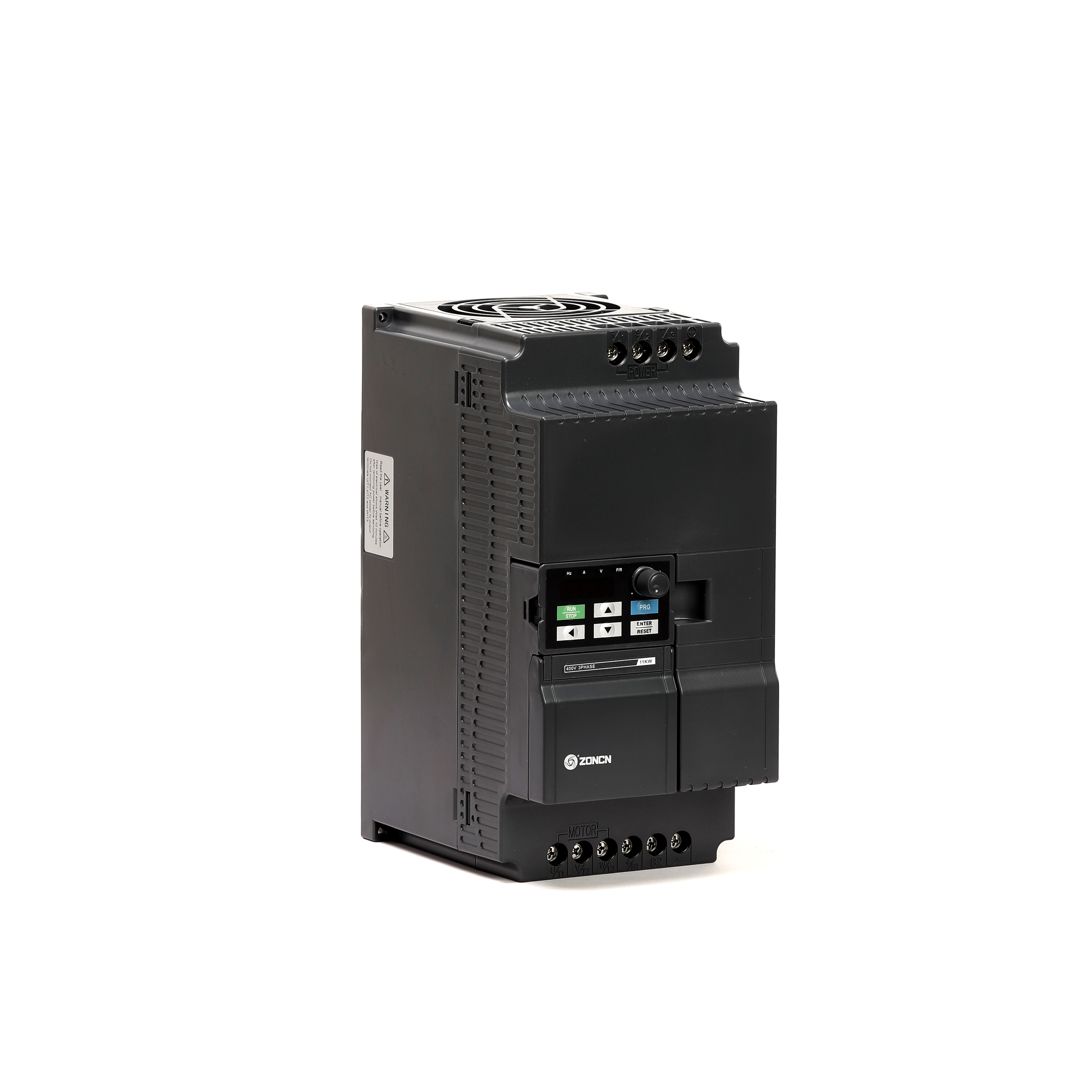

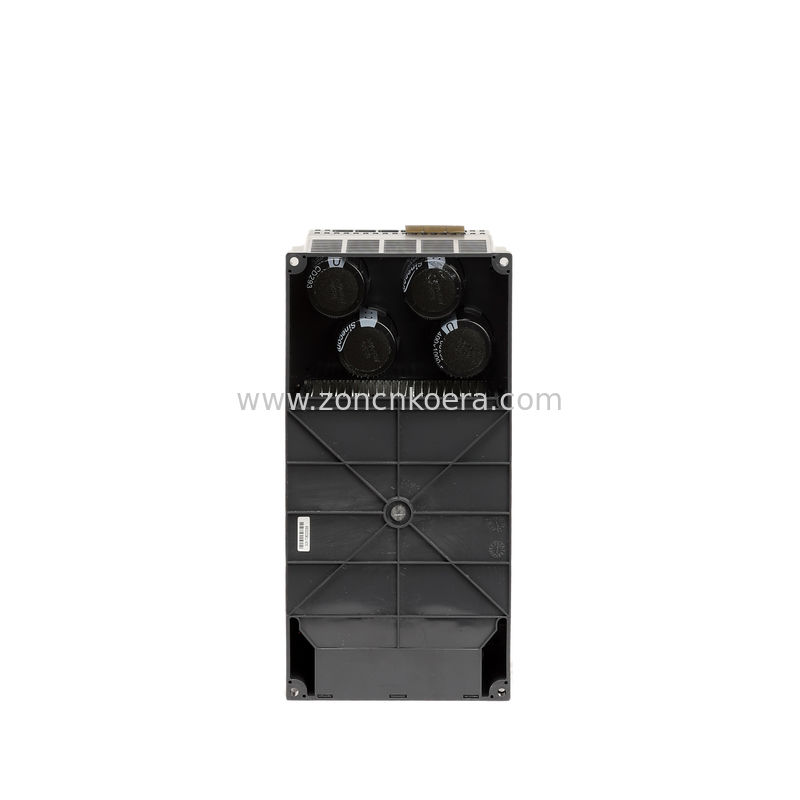

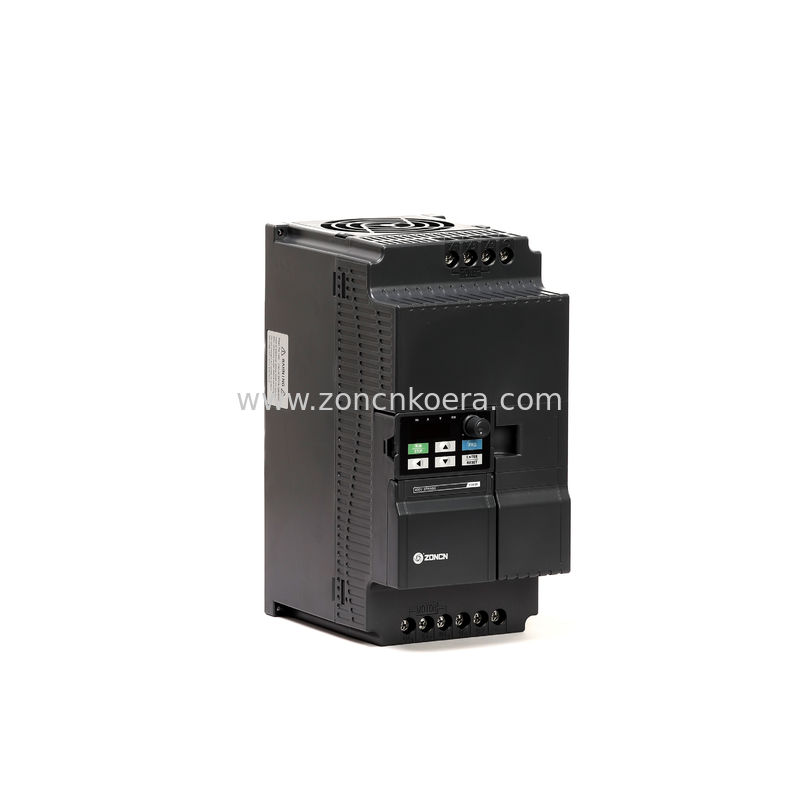

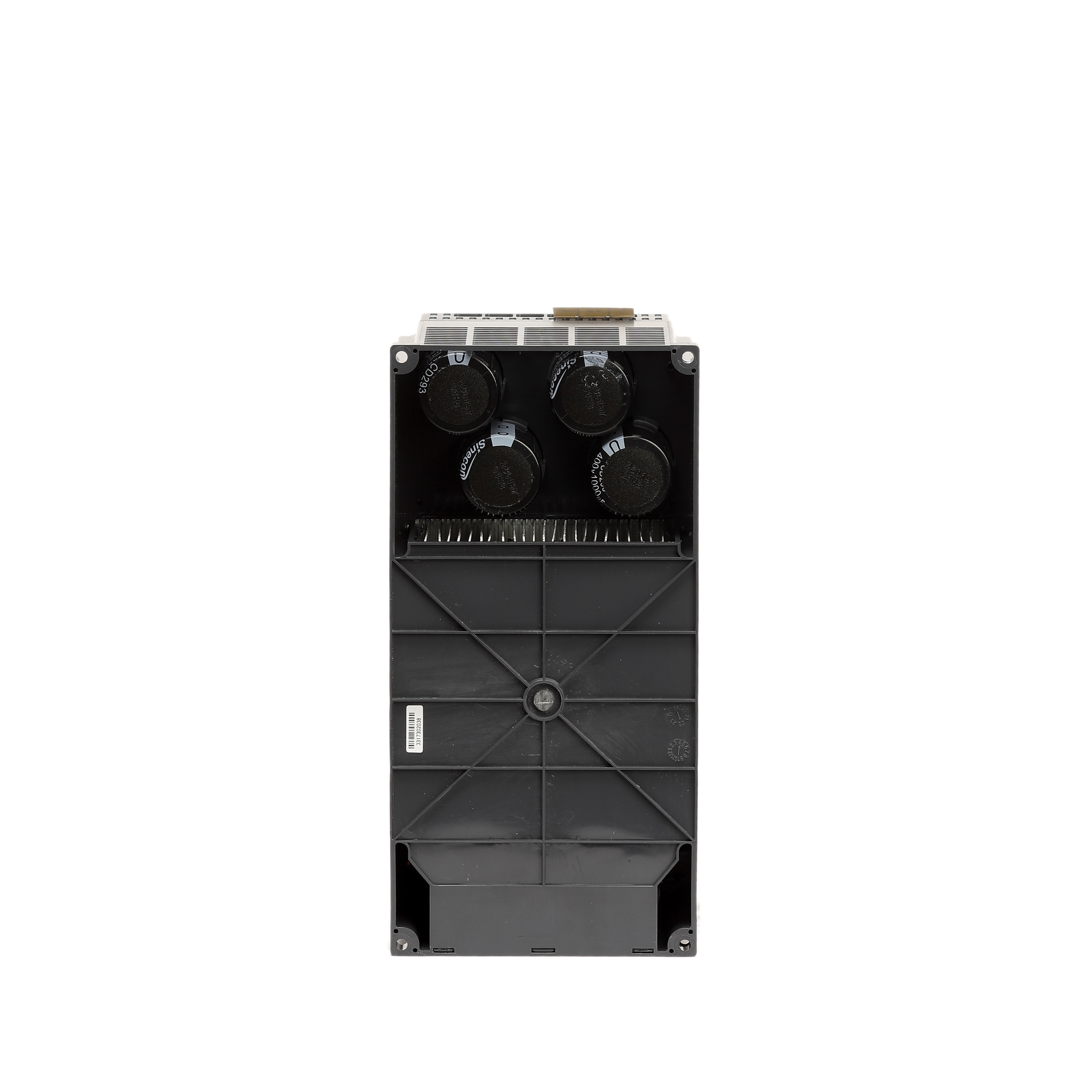

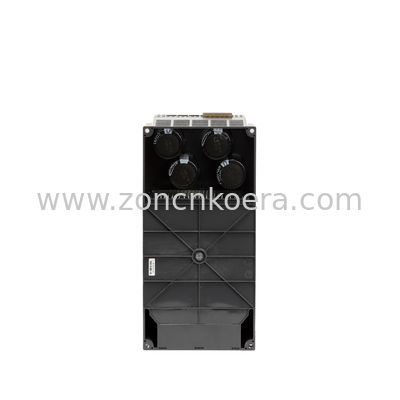

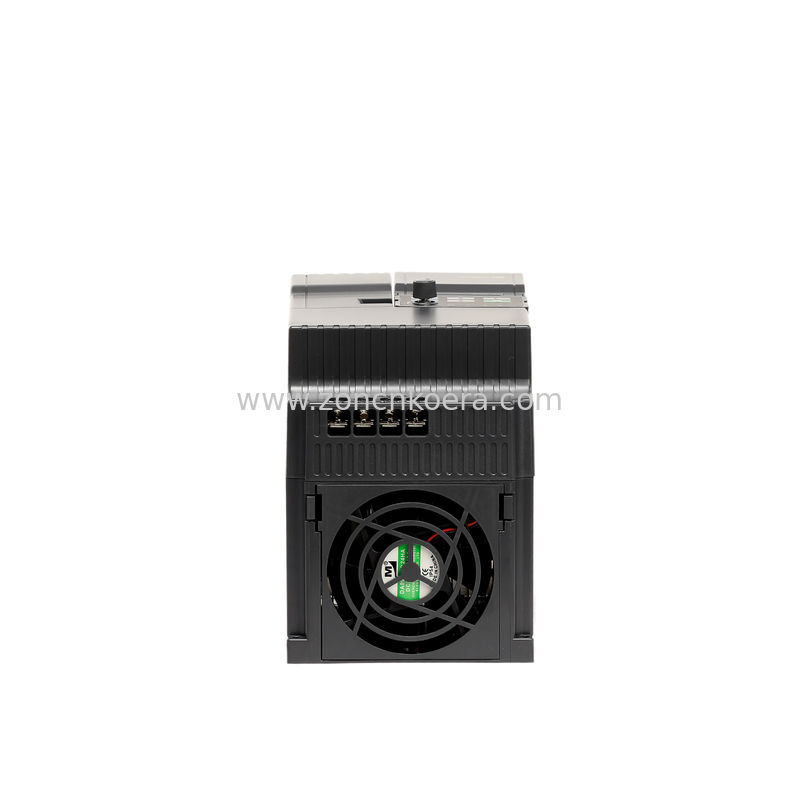

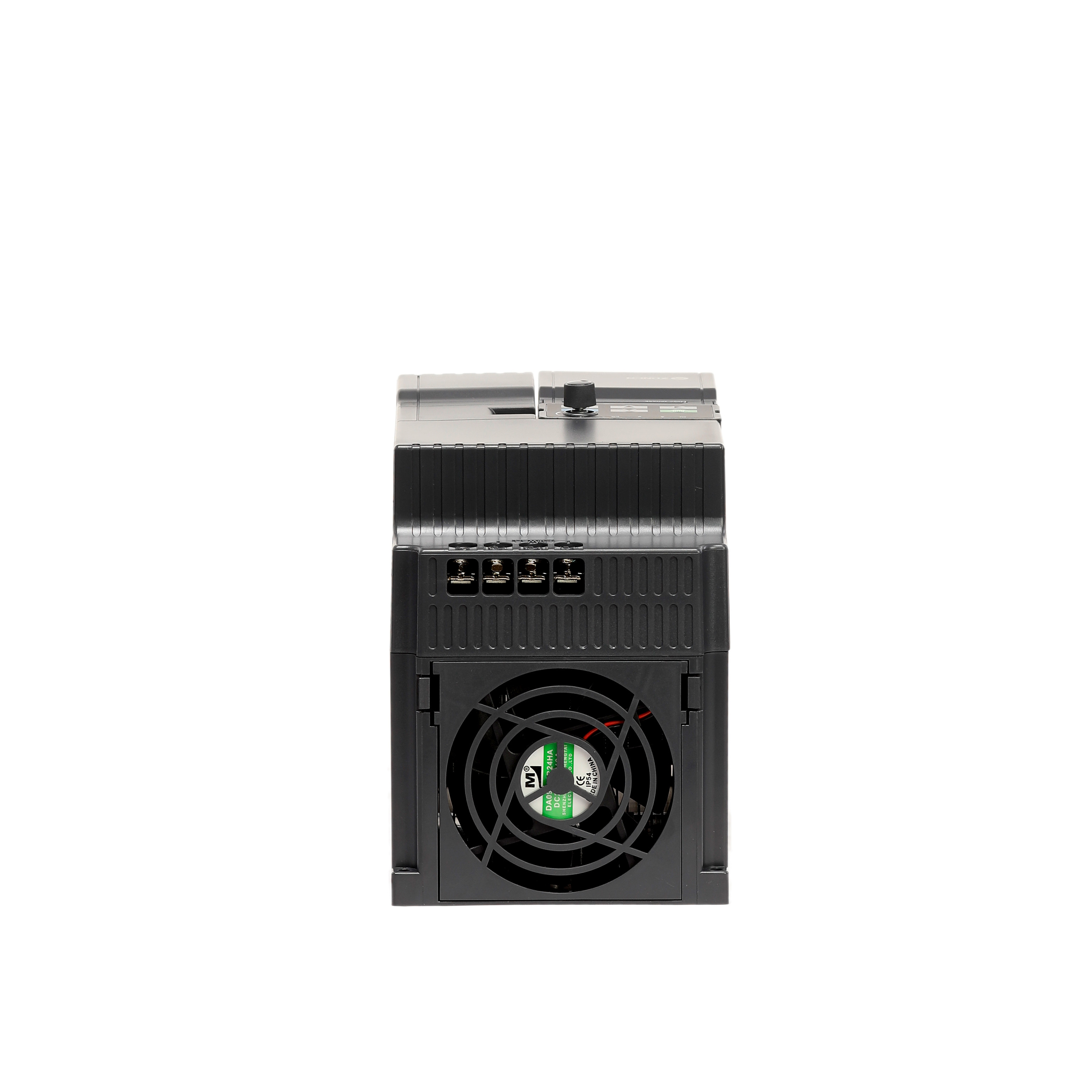

AC Inverter Variable Speed Drive 380v 11kw Support PM motor

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE+KC
Model Number:	Z2400-11G/15P

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；33CM23CM29CM；3.5KG
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Control Mode:	VF+Vector Control	Movable Digital Keypad:	Support
Communication:	RS485	Material:	Plastic
Protection Class:	IP20	DC Braking:	Support
Built-in Brake Unit:	Vfd≤37kw Yes, Vfd>37kw Optional	EMC Filter:	Optional
Warranty:	18 Months
Highlight:	AC Inverter Variable Speed Drive , Inverter Variable Speed Drive 380v

AC Low Voltage Frequency Inverter 380v 11kw Motor Drive Z2000 Variador De Frecuencia

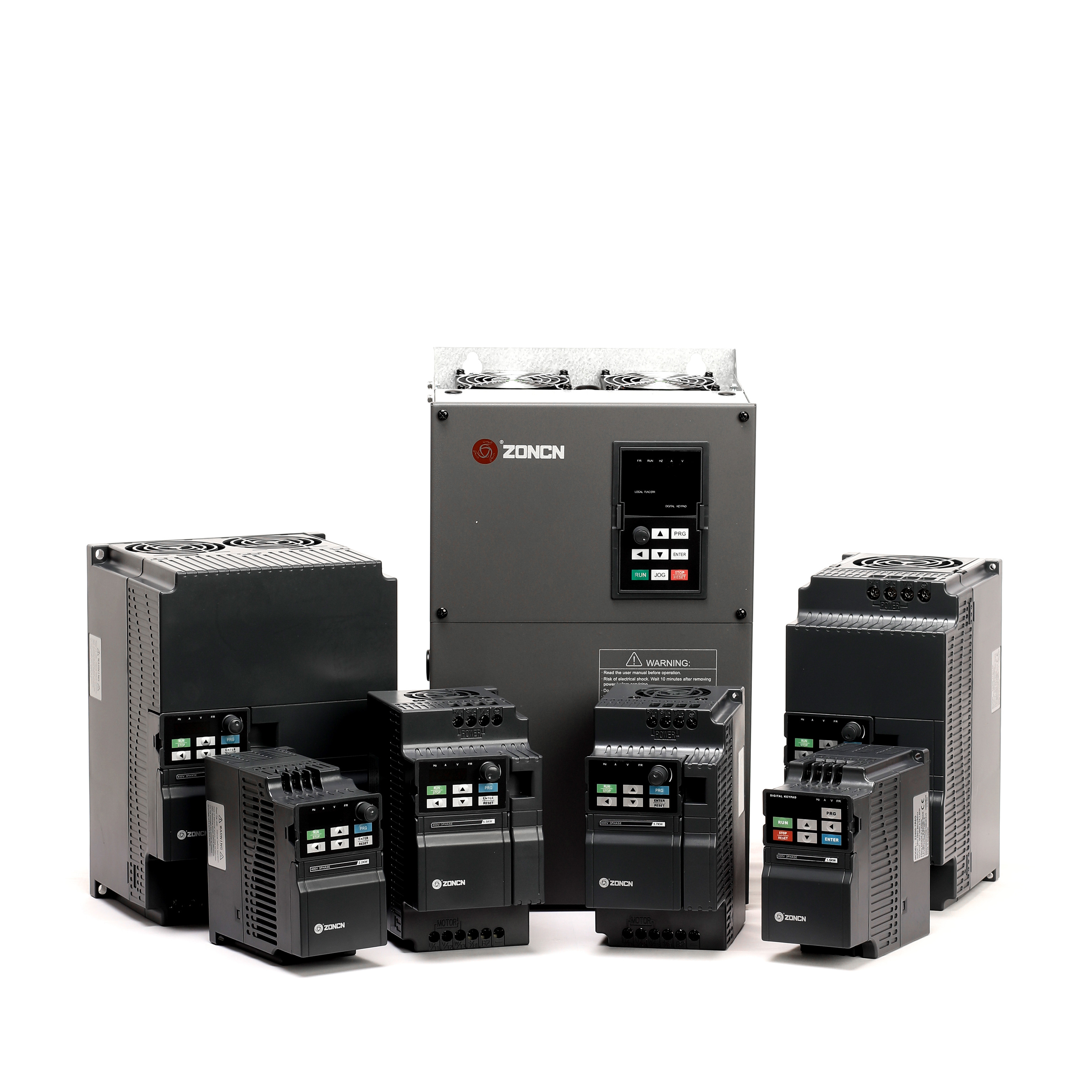

ZONCN Z2000 series variable frequency inverter

Basic product introduction:

· Senseless flux vector control(VC)V/F(Voltage/Frequency)control

· Overload capacity is 60s for 150% of the rated current,3s for 180% of the rated current.

· There are ten auxiliary frequency sources.

· It can implement fine tuning of auxiliary frequency and frequency synthesis.

· Support PM motor(Z2000T series)

· Optional built-in EMC filter；

· Power range:110v/220v/380v/415v/440v/480v 0.4-450kw

Technical Specification:

Item	Z2000 series inverter
Control mode	Senseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequency	Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency	1-16kHz ；The carrier frequency is automatically adjusted based on the load features
Input frequency solution	Digital setting: 0.01Hz Analog setting: maximum frequency x 0.025%
Startup torque	G type: 0.5Hz/150%(SFVC) ； P type: 0.5Hz/100%
Speed range	1:100
Speed stability accuracy	±0.5%
Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto boost ; Customized boost 0.1%-30.0%
V/F cure	Line V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separation	Two types: complete separation; half separation
Ramp mode	Straight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking	DC braking frequency:0.0Hz to maximum frequency Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG control	J0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds	lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID	t realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR)	It can keep constant output voltage automatically when the mains voltage changes
Auto voltage/Over current stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit	It helps to avoid frequent over current faults of the AC drive

Product configuration:

Close loop vector control	No
Built-in braking unit	Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control	Yes
High speed pulse output	Yes
Movable digital keypad	Yes
AI	2
AO	1
DI	6
DO	Standard 1,optional 2
Relay output	Standard 1,over 30kw optional 2
DC braking	Yes
Collector	1
24V power supply	Below 30kw optional,30kw and above support
EMC filter	Optional
0.1S acceleration/deceleration	Yes
Simple PLC	Yes
All kinds of protection	Support
PID	Yes
DC choke	30kw—220kw optional,250kw and above all have
DC bus +,- terminals	Yes
STO function	No
Communication	RS485
Certificate	KC+CE
Warranty	18 months

Product wiring diagram:

AC Inverter Variable Speed Drive 380v 11kw Support PM motor 0

Product applications:

Z2000 series is widely used in fans, pumps, compressors, lathes, spindle motors, textile machines, food machines, crushers, packaging machines, printing machines, washing machines, conveyor belts, grinding machines, polishing machines and other equipment, and well received by customers.

Packing and shipping:

AC Inverter Variable Speed Drive 380v 11kw Support PM motor 1

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
