High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw

High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw
High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw
High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z5400A07D5K-BF
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverter Brand: ZONCN
Protection: IP65 Communication: RS485
Frequency: 50hz / 60Hz EMC Filter: Built-in
Power Range: 0.75kw-160kw Analog Input: 0-10V, 0-20mA
OEM: Support Warranty: 18 Months
MOQ: 1PC Delivery Time: 15 Days Normally

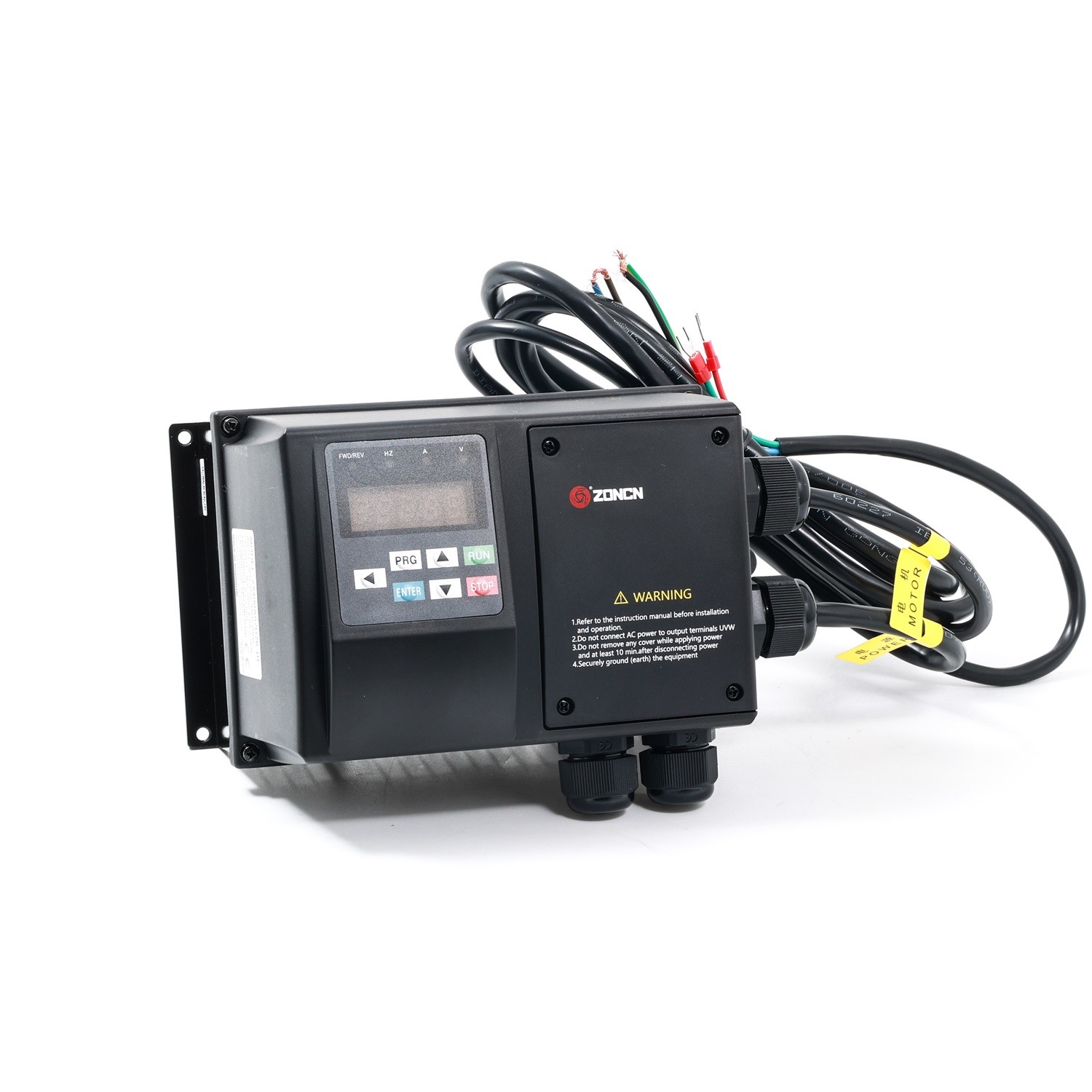

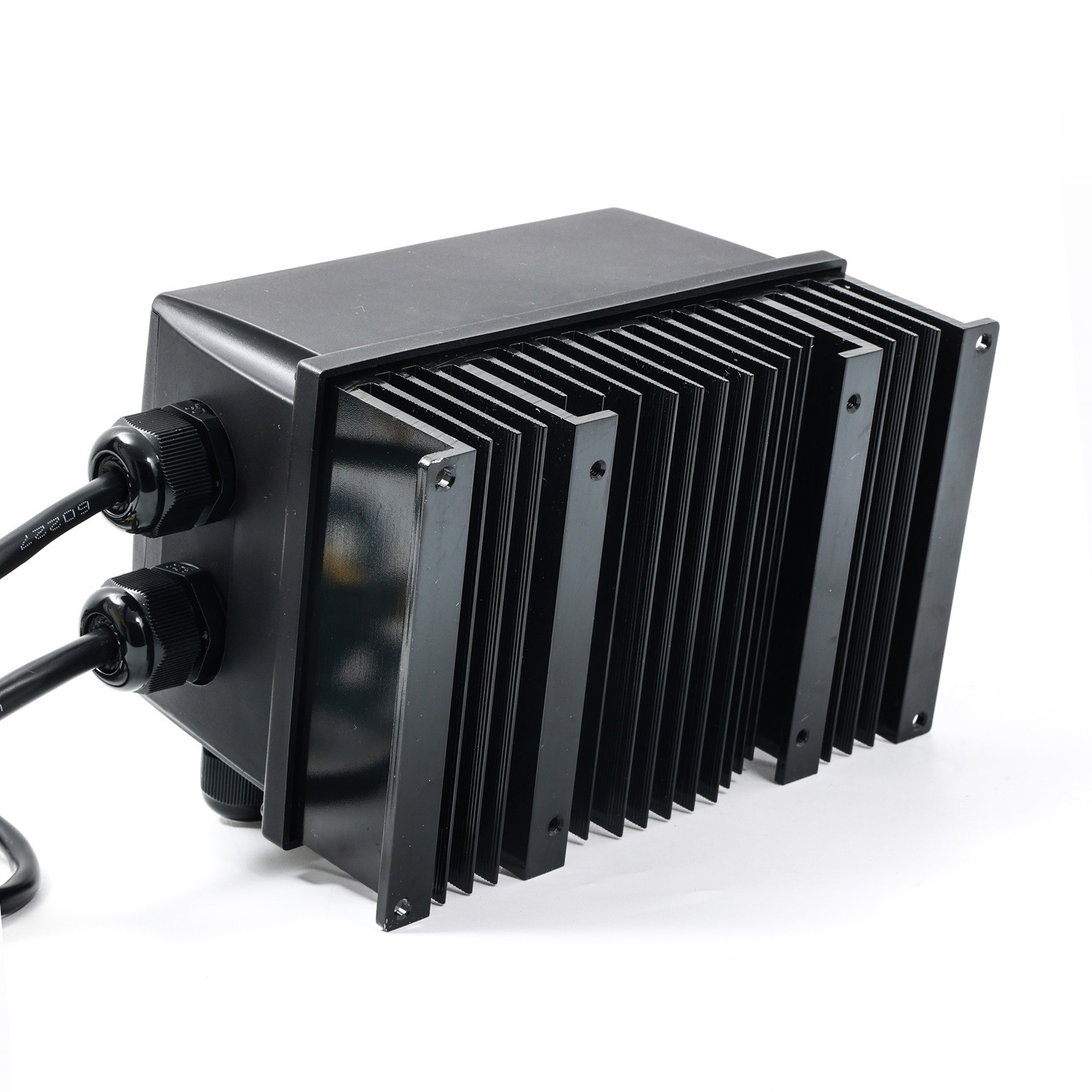

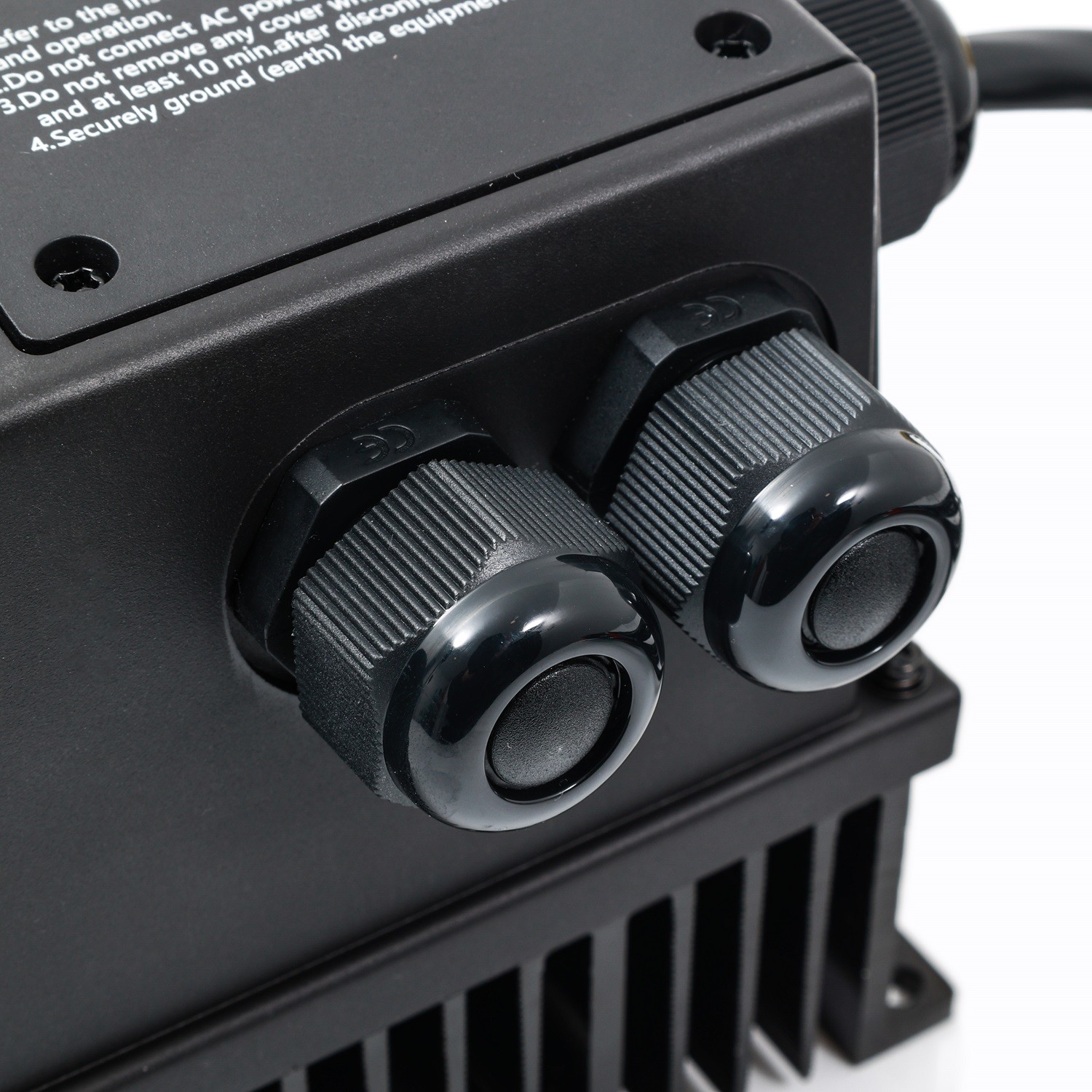

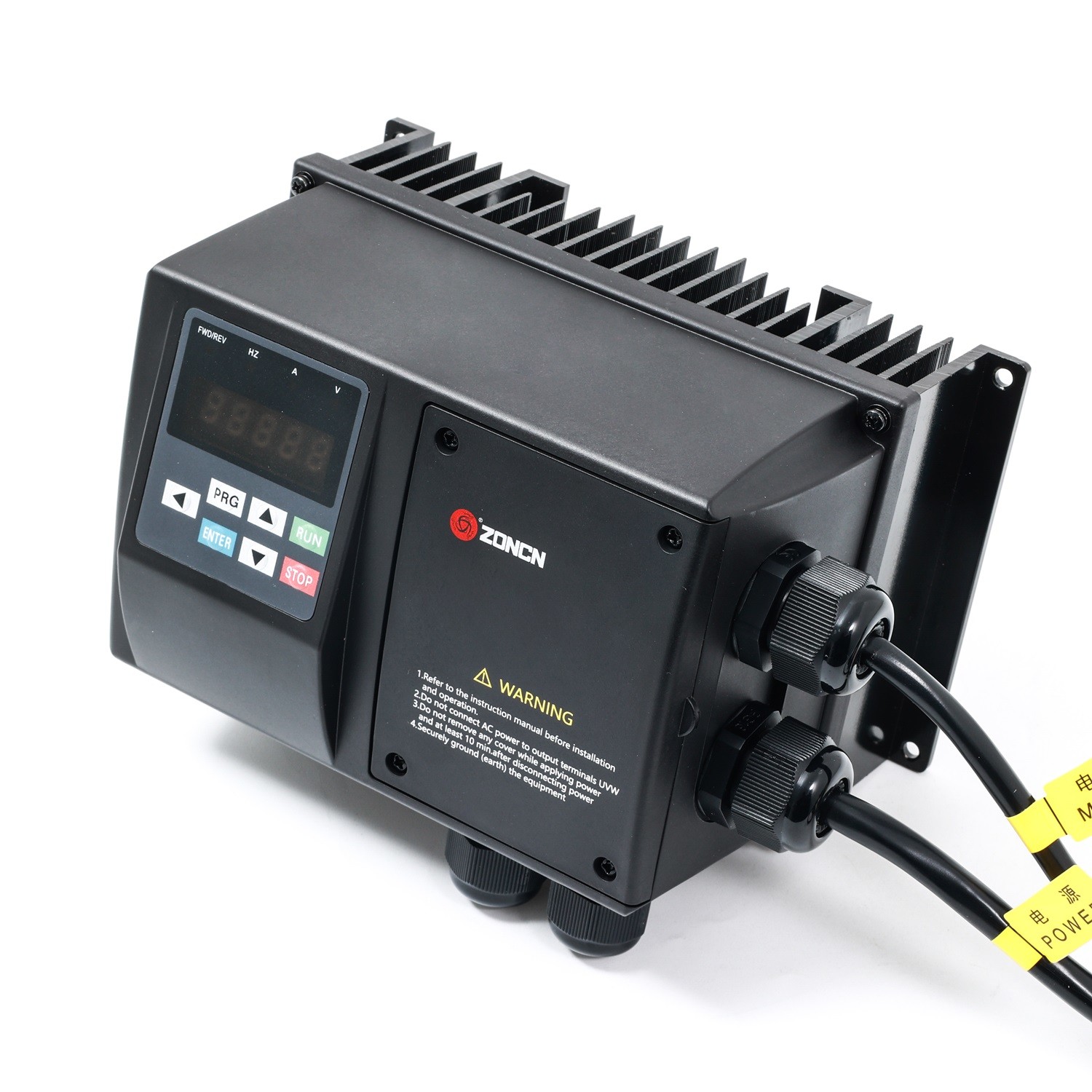

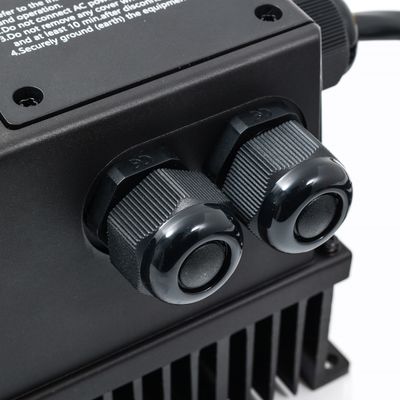

High Protection IP65 Inverter 380v Variable Frequency Drive VFD 0.75kw 1.5kw





Variable Frequency Drive (VFD) Inverters

Z5000 Series VFD frequency inverter, featuring industry-leading IP65 protection for reliable operation in the most demanding conditions. These rugged VFD solutions combine superior environmental resistance with advanced motor control technology, making them ideal for outdoor and harsh industrial applications.

Unmatched Protection in VFD Design

The Z5000 Series VFD delivers exceptional performance through:

  • Complete IP65 protection against dust ingress and water jets

  • Corrosion-resistant aluminum alloy housing for long-term durability

  • Wide temperature tolerance (-20°C to +60°C) for extreme climates

This VFD series maintains perfect functionality in cement plants, mining operations, and offshore environments where standard drives fail.

Advanced VFD Technology

Every Z5000 Series VFD incorporates:

  • High-torque vector control for 200% starting torque at 0.5Hz

  • Built-in EMC filter

  • Multi-pump control logic for water/wastewater systems

Industry-Specific VFD Solutions

Our IP65 VFD excels in:

  • Material Handling: Conveyors, hoists, and cranes exposed to weather

  • Marine Applications: Deck machinery and pump systems

  • Food Processing: Washdown areas requiring frequent cleaning

  • Oil & Gas: Drilling equipment in corrosive atmospheres

ZONCN's IP65 Z5000 Series VFD represents the next evolution in protected drive technology, offering uncompromising performance where other VFD products cannot survive. With 20+ years of VFD manufacturing expertise, we guarantee this series will exceed your most challenging application requirements.

VFD Inverter Description



ITEM Z5000-BF
Input Rated voltage, Frequency 1PH/3PH AC 220V 50/60Hz;
3PH AC 380V 50/60 Hz
Voltage Range 220V: 170~240V; 380V: 330V～440V
Output Voltage Range 220V: 0~220V ; 380 V: 0～380 V
Frequency Range 0.10～400.0 Hz
Control method V/F control, Space vector control
Indication Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification Output Frequency Range 0.10～400.00 Hz.
Frequency Setting Resolution Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency
Output Frequency Accuracy 0.01 Hz.
V/F Control Setting V/F curve to satisfy various load requirements
Torque Control Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
Multifunctional Input Terminal 4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
Multifunctional Output Terminal 1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
Acceleration/deceleration Time Setting 0~999.9 s acceleration/deceleration time can be set individually
Other functions PID Control Built-in PID control
RS485 Standard RS485 communication function (MODBUS)
Frequency Setting Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
Multi-speed 4 multi-function input terminals,15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection function Overload 150%, 60s (Constant torque); 120%,60s (variable torque)
Over Voltage Over voltage protection can be set
Under Voltage Under voltage protection can be set
Other Protections Output short-circuit, over current, and parameter lock and so on.
Environment Ambient Temperature –10℃~40℃(non-freezing)
Ambient Humidity Max. 95% (non-condensing)
Altitude Lower than 1000м.
Vibration Max. 0.5 g
Structrure Cooling Mode Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Protective Structure Below 3.7kw IP 65, 3.7kw and above IP54







Specification

Model Input voltage Rated Output Power (KW) Rated Input current (A) Rated Output Current (A) Motor Power (kW)
Z5200A00D7K-BF 1PH AC220V ±15% 0.75 7.2 5 0.75
Z5200A01D5K-BF 1.5 10 7 1.5
Z5200A02D2K-BF 2.2 16 11 2.2
Z5400A0D75K-BF 3PH AC380V ±15% 0.75 3.8 2.5 0.75
Z5400A1D5K-BF 1.5 5 3.7 1.5
Z5400A02D2K-BF 2.2 5.8 5 2.2
Z5400A03D7K-BF 3.7 10 9 3.7
Z5400A05D5K-BF 5.5 15 13 5.5
Z5400A07D5K-BF 7.5 20 17 7.5
Z5400A0011K-BF 11 26 25 11
Z5400A0015K-BF 15 35 32 15
Z5400A0018K-BF 18.5 38 37 18.5
Z5400A0022K-BF 22 46 45 22
Z5400A0030K-BF 30 62 60 30
Z5400A0037K-BF 37 76 75 37
… … … … …
Z5400A00160K-BF 160 　 　 160
