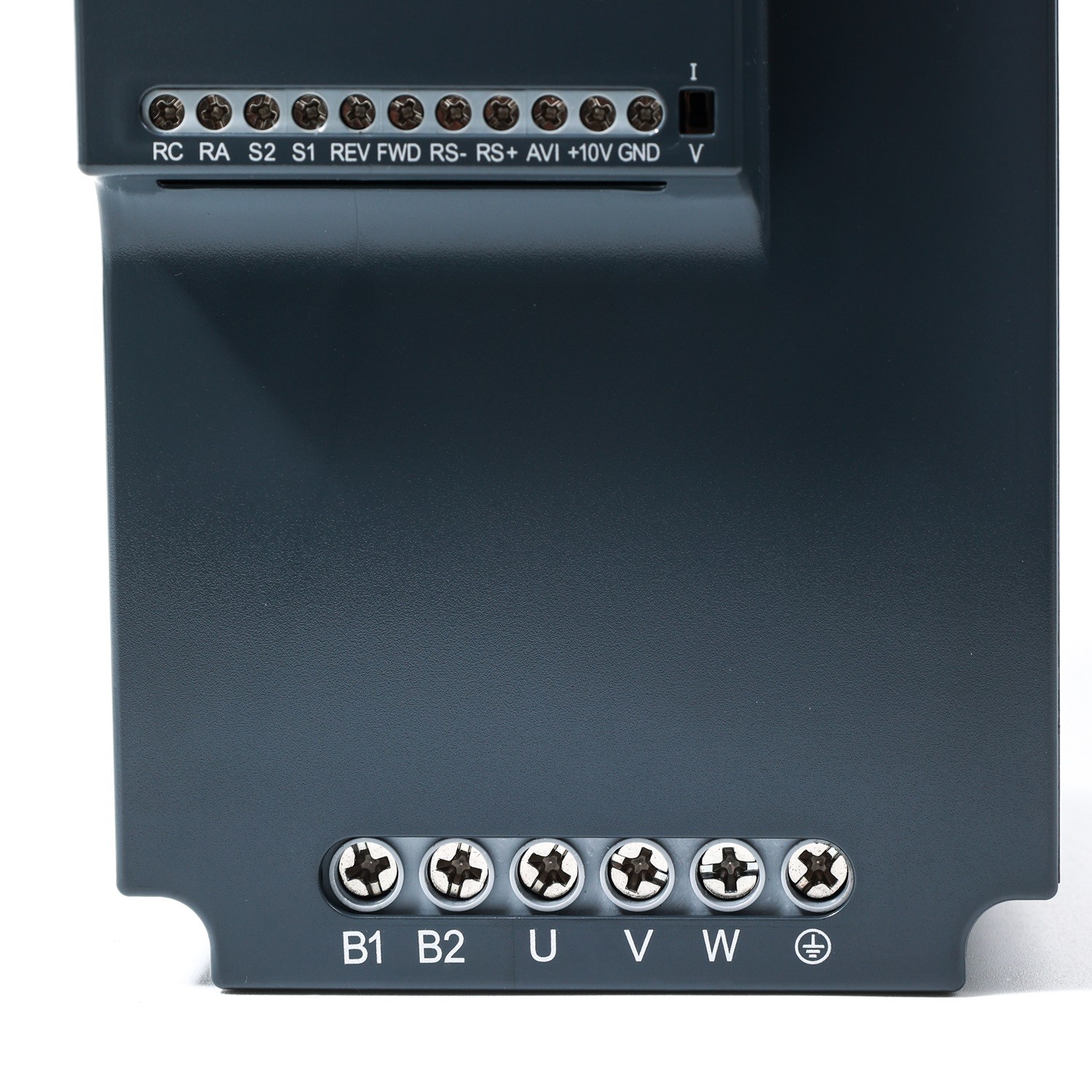

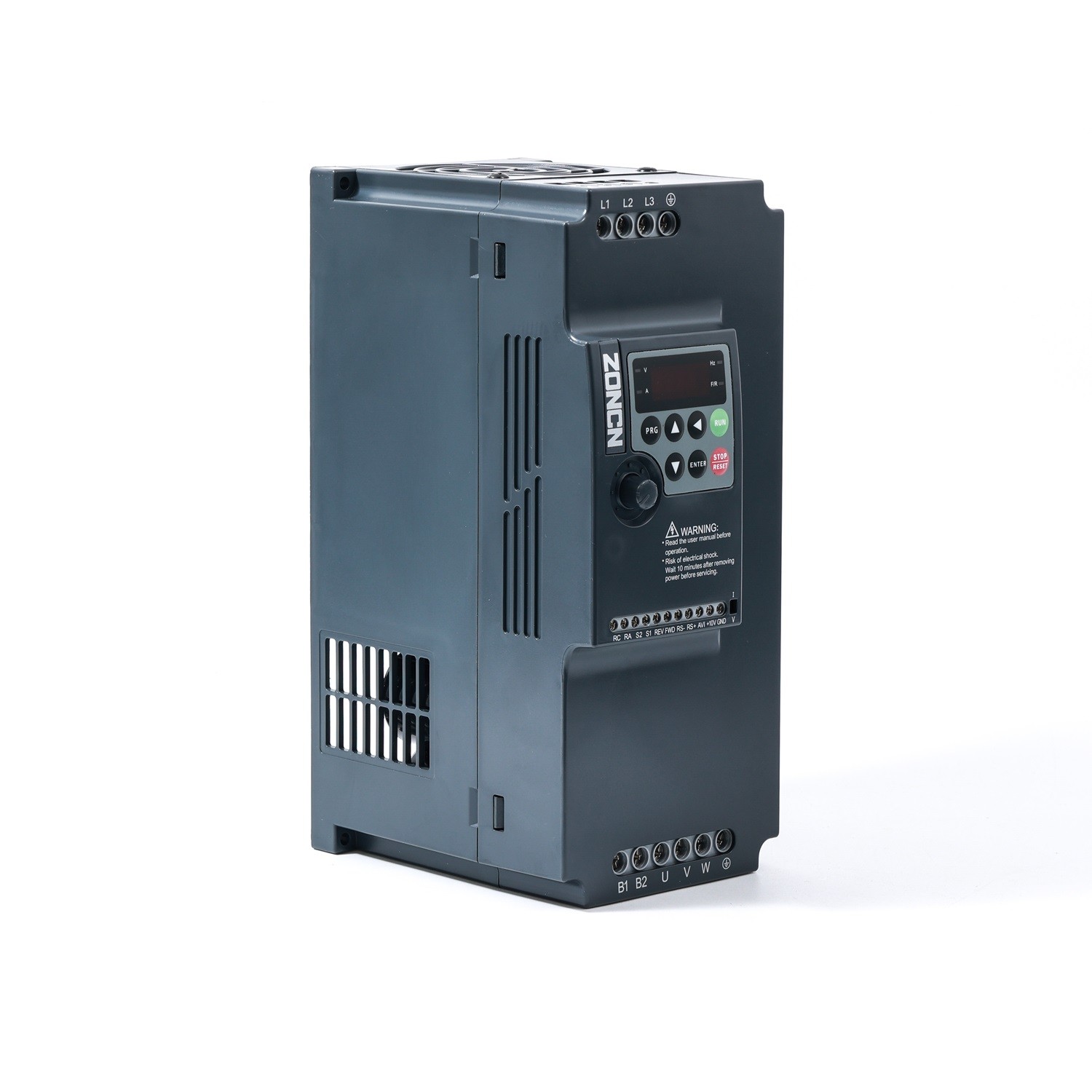

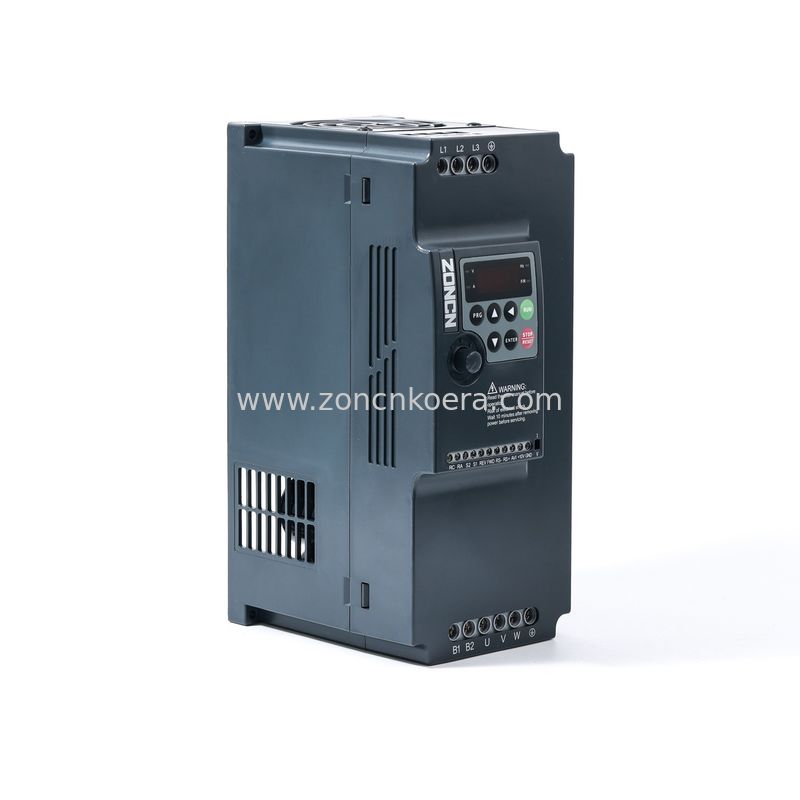

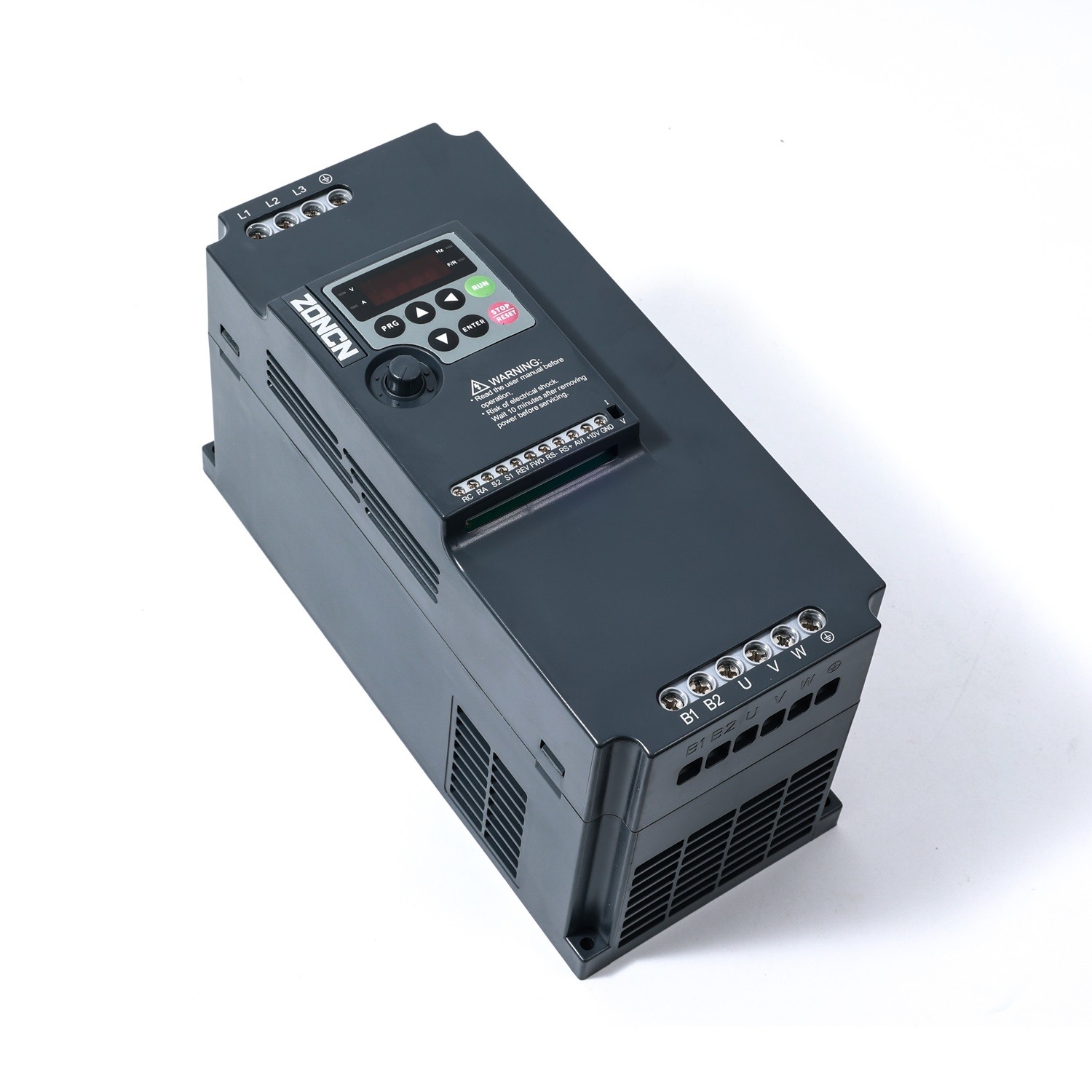

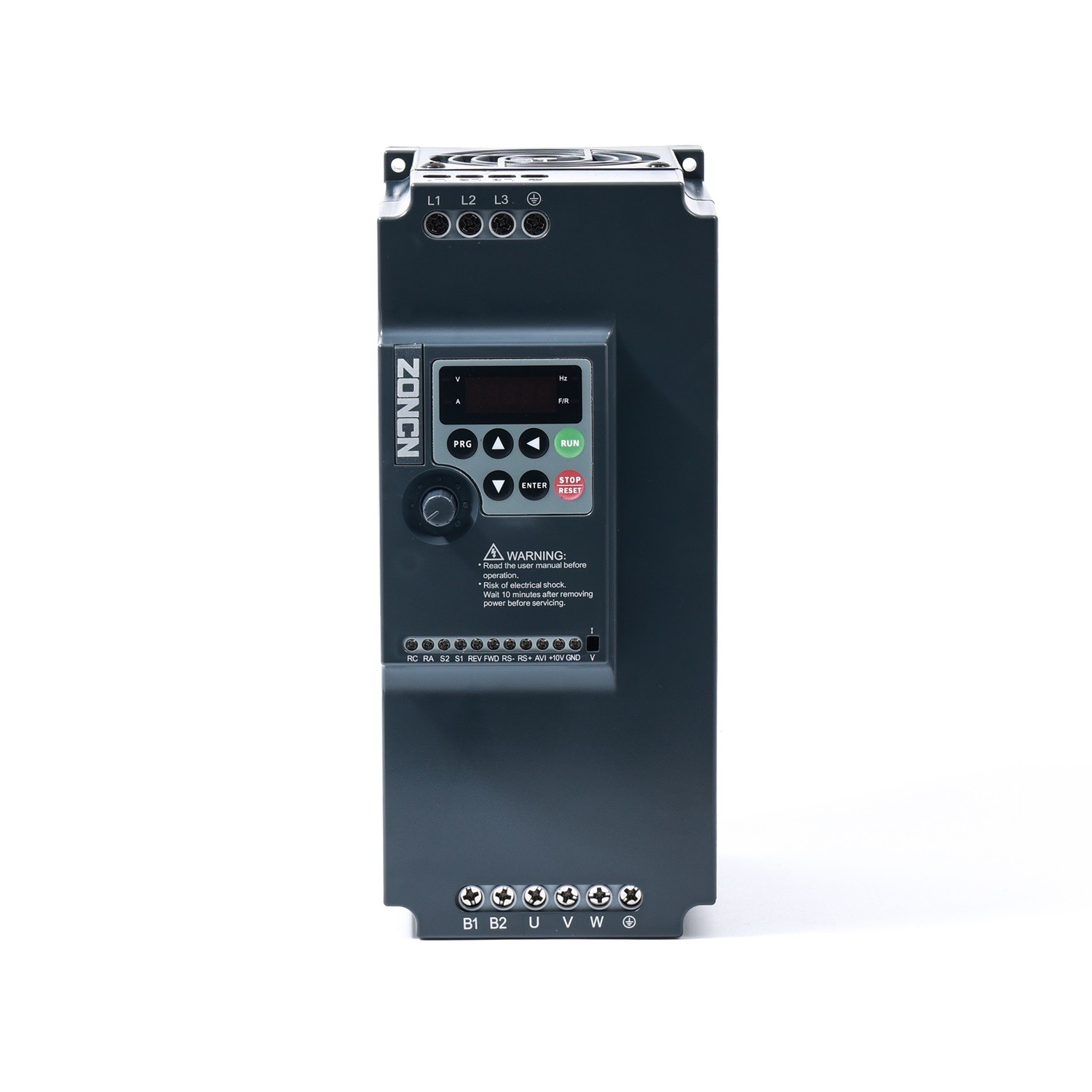

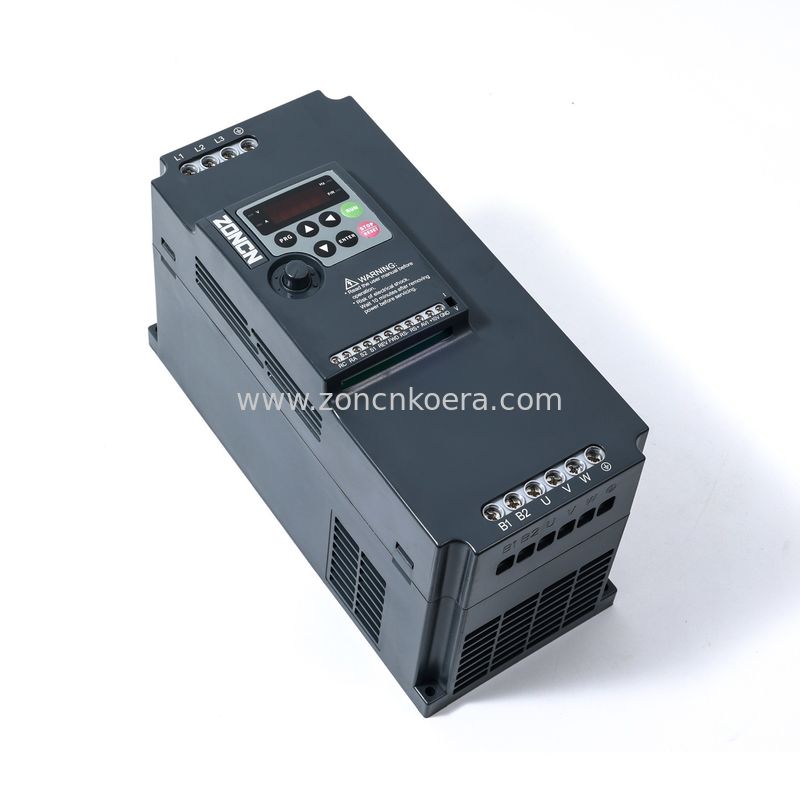

10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor

10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor
10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor
10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200T-7R5GY-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: VFD Inverters Product Name: Variable Frequency Drive
Brand: ZONCN Power: 10HP/7.5kw
Model: NZ200T-7R5GY-4 Input Voltage: 380v/440v/480v
Power Range: 0.4kw-630kw Braking Unit: Built-in
Communication: RS485 Warranty: 18 Months
OEM: Yes

10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor



NZ200 VFD Features

  1. Open-loop vector control – Ensures precise speed and torque regulation for superior motor performance.

  2. Compact design – Space-saving and easy to install in control cabinets.

  3. Comprehensive protection – Includes output phase-loss protection, overcurrent, overvoltage, overload, and overheating protection for enhanced reliability.

  4. PMSM (Permanent Magnet Synchronous Motor) support – Optimized for high-efficiency permanent magnet motors.

  5. Wide power range (0.4kW–630kW) – Suitable for small to large industrial applications.

  6. Built-in PID controller – Enables automatic process control for pressure, flow, and temperature regulation.

  7. Integrated braking unit – Improves braking performance and reduces external components.

  8. RS485 communication – Supports Modbus protocol for seamless integration with PLCs and SCADA systems.

  9. 24V power supply terminals – Provides convenient auxiliary power for external devices.

  10. Analog input support (0-10V/4-20mA) – Allows flexible speed and control signal input.



NZ200 VFD Specification



VFD Model Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450





ZONCN NZ200 VFD Applications

10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 0

About ZONCN

10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 1

10hp Variable Frequency Drivers 380v VFD From ZONCN For Air Compressor 2
